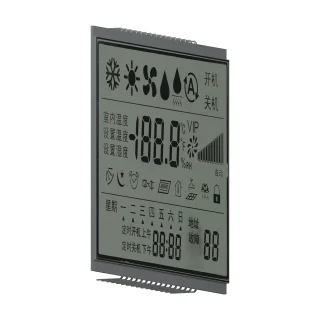

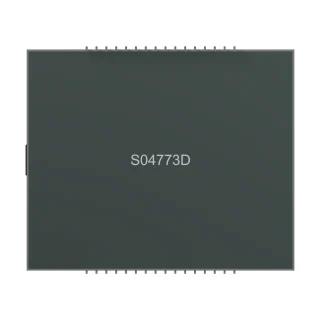

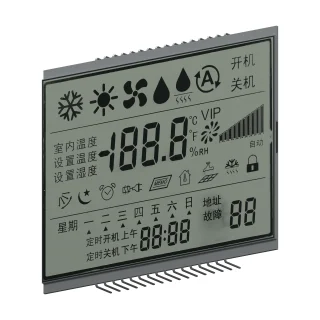

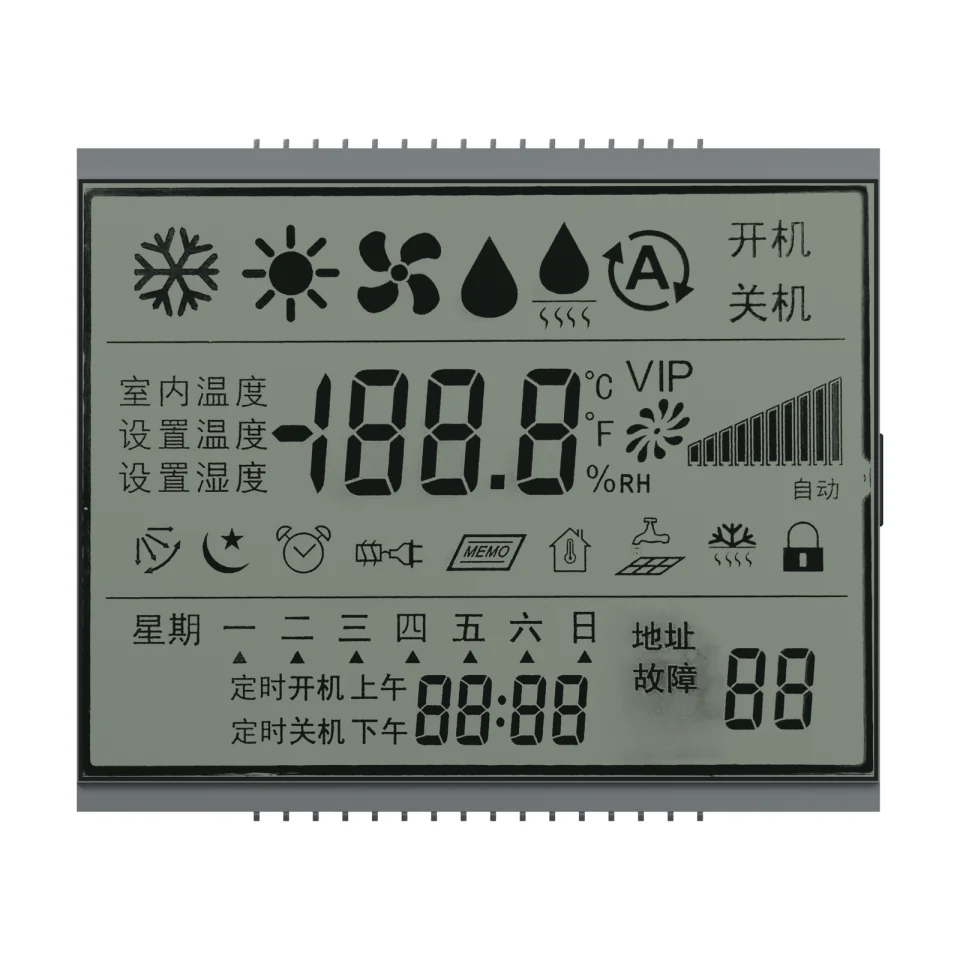

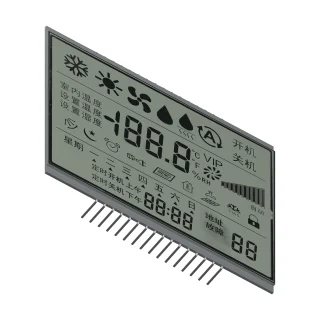

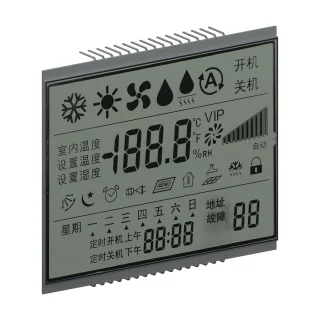

Product rendering on a white background. Screen artwork, materials and fine details are visual references; final construction is confirmed for the OEM project.
OEM DISPLAY REFERENCE
S04773D
HTN temperature controller display reference
S04773D is an HTN segmented LCD reference for temperature controller interfaces. The positive display configuration uses a 66 × 49 mm minimum viewing area and two rows of 16 pins. Review the displayed readings, labels and status icons alongside your enclosure and driver requirements.
HTN LCDDisplay family
Interactive 3DExplore the product
A starting point for your custom display.
Images, 3D and parameters are reference information. Final dimensions, electrical requirements and construction are confirmed for your project.
Product video — S04773D
See the actual display in operation.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S04773D |
|---|---|
| Display mode | HTN, positive |
| Rear glass width × height | 69.00 ± 0.20 × 57.00 ± 0.20 mm |
| Front glass width × height | 69.00 ± 0.20 × 52.00 ± 0.20 mm |
| Minimum viewing area | 66.00 × 49.00 mm |
| Connection | 32 pins: two rows of 16, 2.54 mm pitch |
| Rearward pin reach (drawing reference) | 6.40 ± 0.50 mm |
| Front and rear polarizers | Transmissive, adhesive |
| LCD operating voltage | 5.0 V |
| Drive condition | 1/8 duty, 1/4 bias |
| Frame frequency | 64 Hz |
| Viewing direction | 12 o’clock |
| Operating temperature | −20 °C to +60 °C |
| Storage temperature | −30 °C to +70 °C |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
Mechanical fit
Define the viewing window, available space, mounting method and connection position.
Electrical requirements
Confirm your host controller, supply, drive method and backlight requirements before sampling.
03 / APPLICATION DIRECTION
Temperature controllers
This model is identified for temperature controller displays. The supplied artwork illustrates readings and control-status information. The host product determines sensing, scheduling and control functions; those functions are not established by the LCD artwork.
04 / PRODUCT SUPPORT
From reference to your design.
What needs to be checked around the two pin rows?
Review row positions, 2.54 mm pitch, rearward bends, contact orientation and PCB clearance together. Use the final agreed assembly drawing to confirm mechanical fit.
What does the 3D model show?
The interactive model helps you explore the product form and connection arrangement. It is a visual reference; use the project-confirmed engineering information for assembly design.
