Optical stack decision guide
Optical Bonding vs Air Gap LCD: Sunlight Readability and Durability
For industrial HMI, outdoor equipment and touch display projects, the choice between optical bonding and an air-gap LCD affects readability, reflection, condensation risk, touch stability and long-term mechanical reliability.
Quick answer: optical bonding fills the gap between the LCD, touch panel or cover lens with clear adhesive such as OCA or LOCA. This reduces internal reflection and helps outdoor displays remain readable. Air-gap LCD keeps a physical air space between layers and is usually acceptable for indoor devices, cost-sensitive products or projects that need easier service and rework.
Comparison
Optical bonding vs air gap LCD comparison table
The right choice is not only about brightness. It depends on the optical stack, the operating environment, the cover lens, touch requirements and how the display will be installed in the final product.
| Decision factor | Air-gap LCD | Optical bonding LCD | Buyer note |
|---|---|---|---|

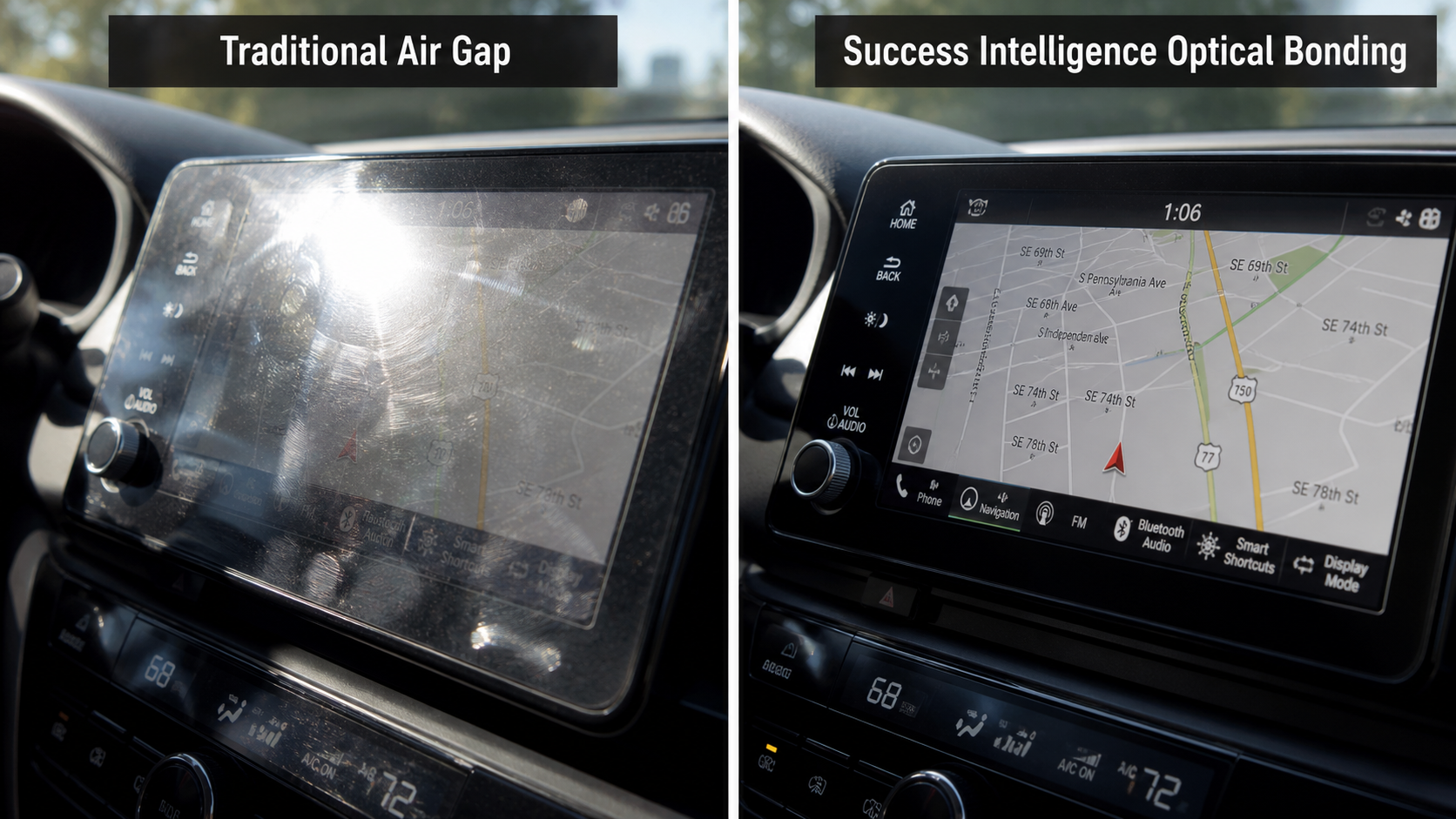

| Sunlight readability | More internal reflection between layers, especially with cover lens and touch panel. | Lower internal reflection because the air interface is reduced or removed. | For outdoor HMIs, review bonding together with brightness and anti-reflective treatment. |
| Touch response | May show more parallax and a less direct touch feel on thicker front panels. | Can improve the perceived touch response and visual alignment. | Important for PCAP touch displays, handheld terminals and operator panels. |
| Condensation and dust | The air cavity can be more sensitive to fogging, dust or moisture intrusion. | The bonded stack helps reduce internal air space and related contamination risk. | Useful for marine, outdoor, vehicle and industrial environments. |
| Impact and vibration | Layer separation can make the front stack feel less solid. | Bonding can increase stack rigidity and reduce vibration-related movement. | Check cover lens thickness, enclosure support and drop or vibration targets. |
| Cost and rework | Usually lower process cost and easier service or rework. | Higher process control requirement and more careful yield review. | Do not specify bonding only to look premium; use it when the environment needs it. |
| Best fit | Indoor controls, instruments, simple displays and cost-sensitive products. | Outdoor HMI, EV charging, marine, transportation, medical and rugged devices. | If the display has outdoor exposure or cover lens touch, bonding should be reviewed early. |
Structure

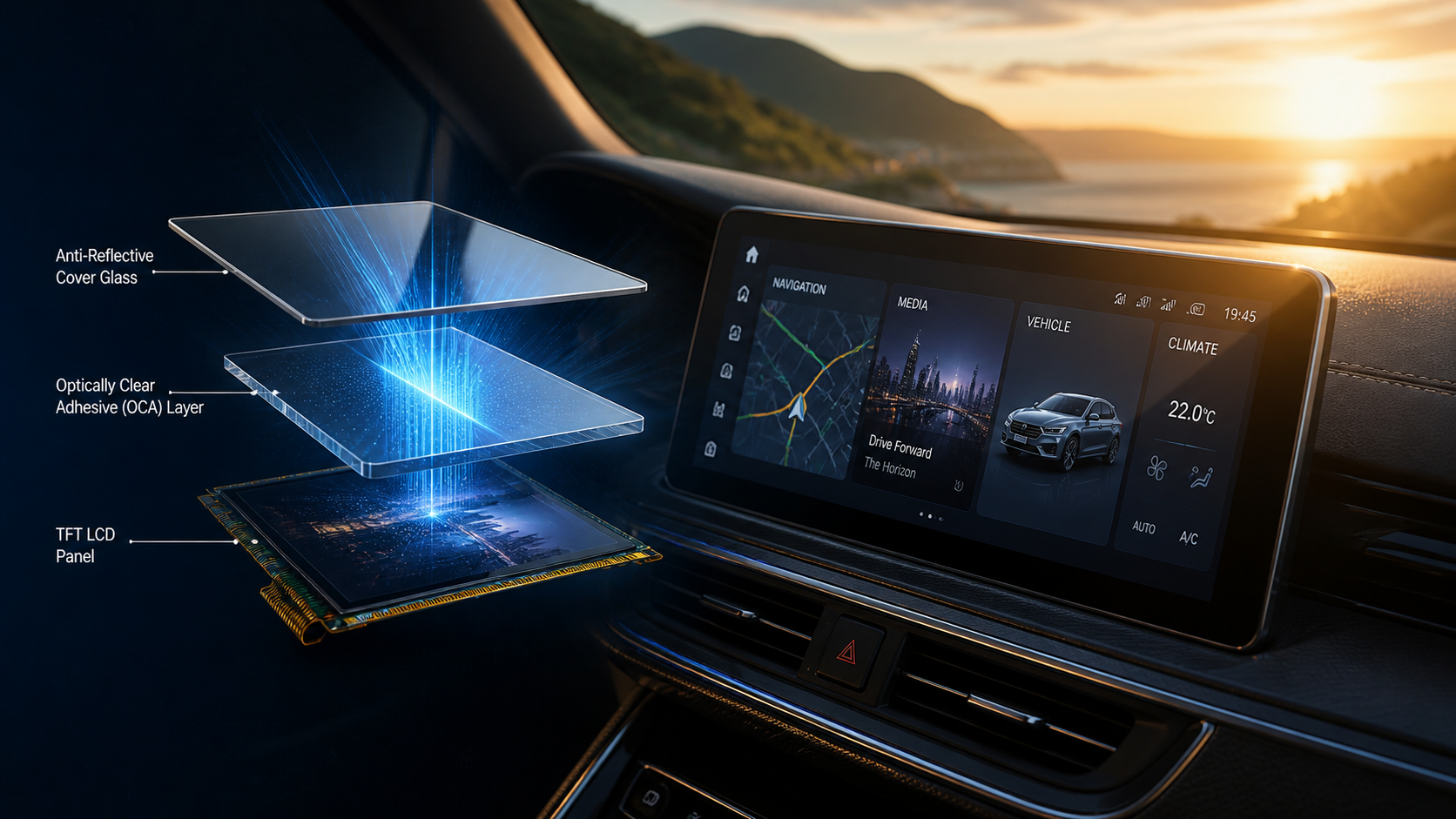

How the optical stack changes the display result

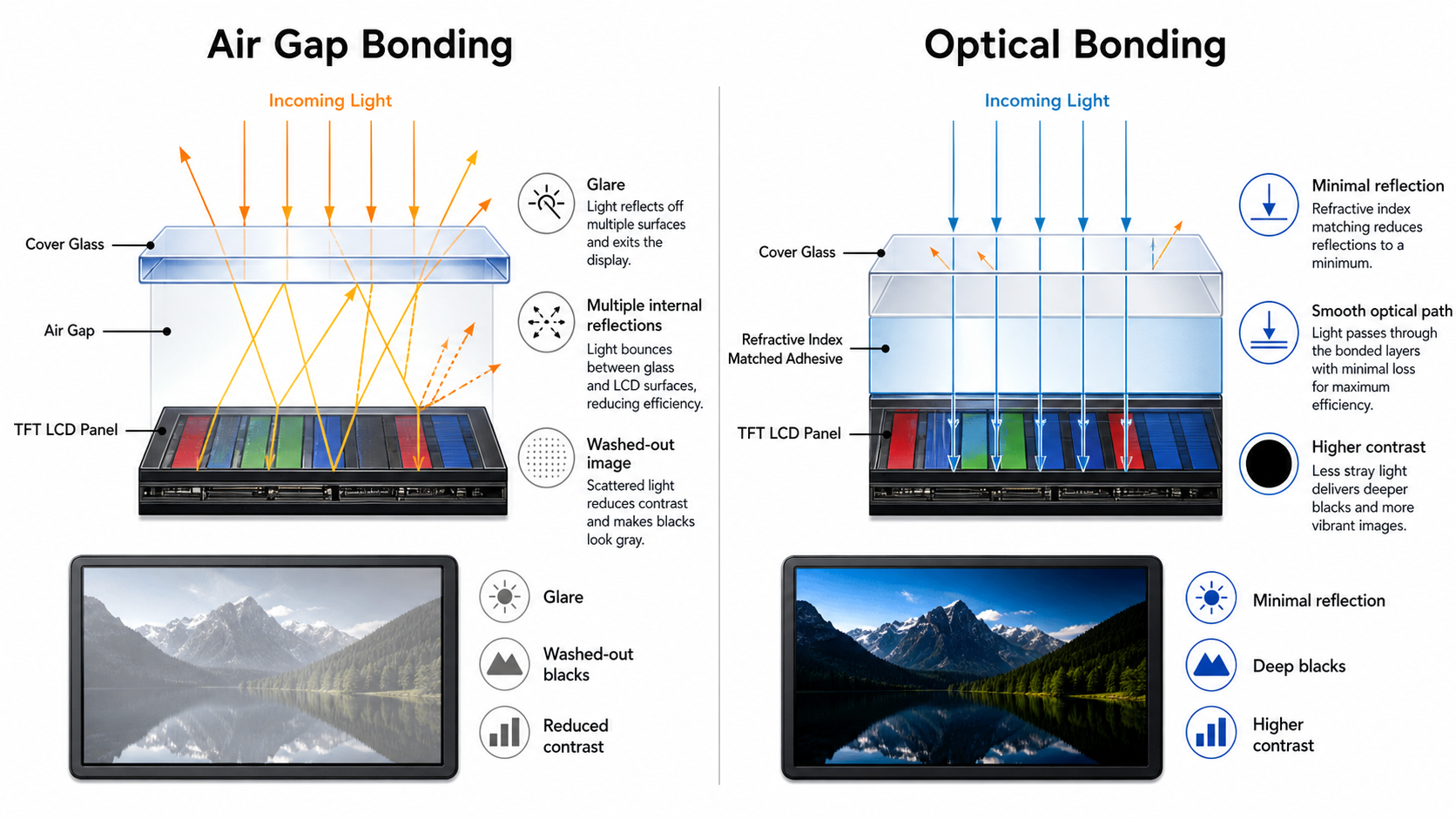

In an air-gap structure, light crosses multiple material boundaries. Each boundary can create reflection and reduce perceived contrast. Optical bonding replaces the air space with a clear adhesive layer, helping the front stack behave more like one optical system.
Air-gap LCD is still useful
Air-gap construction can be the practical choice when the product is mainly used indoors, the budget is tight, the front lens is simple or the design team needs easier replacement during service.
Optical bonding solves a different problem
Optical bonding is mainly a readability and reliability decision. It is useful when the final product must remain readable in strong ambient light or when the front stack must resist condensation, dust and vibration.
Selection logic
When to choose optical bonding for an OEM display project
Use optical bonding when the display environment makes an air gap risky. Use air gap when the display environment is controlled and the project benefits more from cost control and service flexibility.
Optical bonding is usually reviewed for:
- Outdoor industrial HMI and machine control panels
- EV charging, transportation and marine display systems
- PCAP touch displays with cover lens requirements
- High-brightness displays exposed to sunlight or glare
- Products with condensation, dust, impact or vibration concerns
Air gap may be enough for:
- Indoor equipment with stable lighting conditions
- Cost-sensitive products with simple front structure
- Displays without touch panel or thick cover lens
- Projects where easy repair and replacement are important
- Early prototypes before the final optical stack is confirmed
RFQ checklist
Information to prepare before requesting optical bonding
A clear RFQ helps the engineering team judge whether bonding is needed, which bonding process is practical and whether the cover lens, touch panel and LCD module can be matched safely.
FAQ
Buyer FAQs about optical bonding and air-gap LCD
Use these questions to align engineering, purchasing and project management before confirming the display stack.
What is optical bonding in an LCD module?
Optical bonding fills the gap between the LCD, touch panel or cover lens with a clear adhesive such as OCA or LOCA. The purpose is to reduce internal reflection and improve the front stack for outdoor readability, touch stability and environmental resistance.
Is optical bonding always better than an air-gap LCD?
No. Air-gap LCD can be the better choice for indoor equipment, simpler products, early prototypes or projects where lower cost and easier rework are more important than outdoor readability.
Can a brighter backlight replace optical bonding?
A brighter backlight can improve visibility, but it does not remove internal reflection between the LCD, touch panel and cover lens. For sunlight readable displays, brightness and optical bonding should be reviewed together.
Should an OEM choose OCA or LOCA bonding?
The choice depends on display size, cover lens shape, touch panel stack, quantity, yield requirement and mechanical structure. Flat stacks often use OCA, while LOCA may be considered for larger or more complex bonding structures.
What should I send for an optical bonding review?
Send the display size, resolution, brightness target, touch requirement, cover lens drawing, operating temperature, application environment, annual quantity and any enclosure constraints. If a drawing or old module specification is available, include it with the RFQ.
Need help choosing air gap or optical bonding?
Share your display size, cover lens requirement, touch panel direction, application environment and target quantity. Success Intelligence can review the optical stack and suggest a practical LCD module direction for your project.
Need help choosing or customizing an LCD module?
Share your target size, interface, brightness, touch panel, cover lens, operating temperature and annual quantity. Our engineering team can review the requirements and suggest a practical TFT, mono LCD or custom display path.
- Review TFT, mono LCD, touch panel and optical bonding options.
- Check interface, backlight, FPC, lifecycle and reliability requirements.
- Prepare a clearer RFQ so the quotation is faster and more accurate.
Optical Bonding Decision Checklist for OEM LCD Projects
Optical bonding is most valuable when the air gap creates a real product risk: outdoor glare, low perceived contrast, condensation, dust, vibration, touch parallax or front-stack durability concerns. If the display is used indoors and cost is the main constraint, an air-gap structure may still be the practical choice.
| Decision factor | Air gap may be enough when | Optical bonding is worth reviewing when |
|---|---|---|
| Ambient light | The product is used indoors or in controlled lighting. | The screen faces sunlight, high ambient light, strong reflection or outdoor shade. |
| Touch and cover lens | The front stack is simple and touch accuracy is not critical. | The module has PCAP/RTP touch, thick cover glass, glove use or demanding HMI interaction. |
| Environment | Humidity, dust, vibration and temperature swings are low. | The device is sealed, mobile, outdoor, industrial, medical, vehicle or field equipment. |
| Reliability risk | The product can tolerate some glare and front-stack service risk. | Condensation, internal dust, impact resistance or long lifecycle support affects the product promise. |
| Cost and repair | Lower initial cost and easier front-stack replacement matter most. | Higher assembly cost is justified by readability, durability and lower field-failure risk. |
OCA, LOCA or air gap?
- Air gap bonding keeps a physical space between layers and is usually simpler.
- OCA film bonding can suit controlled flat-stack designs with consistent geometry.
- LOCA or OCR liquid bonding can fill complex gaps and support cover lens integration.
- The right method depends on LCD size, cover lens, touch sensor, tolerance, rework plan and production process.
Sample approval checks
- Check readability under the real light condition and final enclosure angle.
- Inspect bubbles, mura-like optical defects, edge appearance and adhesive overflow risk.
- Test touch response after bonding, especially with cover lens and glove requirements.
- Review thermal behavior, vibration, humidity and operating temperature before production approval.
Bonding RFQ Information to Prepare
| Information | Why it matters | Related review |
|---|---|---|
| LCD size, active area, outline and resolution | Defines bonding area, tooling risk and mechanical tolerance. | Custom TFT LCD modules |
| Touch type, cover lens material, thickness and surface treatment | Changes optical transmission, reflection, touch behavior and durability. | Touch panel and cover lens solutions |
| Outdoor condition, brightness target and readability problem | Clarifies whether bonding, high brightness, AG/AR treatment or all three are needed. | Sunlight readable TFT LCD display |
| Temperature, humidity, vibration and sealing requirement | Helps decide reliability tests and whether wide-temperature review is needed. | Wide temperature TFT LCD modules |
Optical Bonding Approval FAQ
Can optical bonding replace a high brightness backlight?
No. Optical bonding improves perceived contrast by reducing internal reflection, but it does not create backlight output. Outdoor projects often need a balanced combination of brightness, bonding, cover lens treatment, UI contrast and thermal design.
When should an OEM avoid optical bonding?
Avoid it when the product is indoor-only, replacement cost matters more than readability, the design is still changing frequently, or the project cannot support the added process cost and validation work.
What should be checked after bonding a touch display?
Check readability, bubbles, optical uniformity, edge appearance, touch response, cover lens alignment, thermal behavior and reliability under the target environment. Final approval should use the same front stack and enclosure as the production device.
