Touch panel and cover lens
Custom Touch Panel and Cover Lens Solutions
Resistive touch, projected capacitive touch, cover lens and optical bonding support for OEM display modules used in industrial, medical, automotive and smart device projects.
Product paths
Choose the Front Stack Before Tooling
Touch performance depends on the full front structure: sensor type, cover lens, surface treatment, bonding method, controller interface and use environment.
Resistive Touch Panel
For single-touch input, stylus use, cost-sensitive products and industrial controls where pressure activation is acceptable.
Projected Capacitive Touch
For modern HMI, handheld devices and TFT display products that need multi-touch, clear optics and controller tuning.
Custom Cover Lens
For glass thickness, printed border, holes, corner radius, AG/AR/AF coating and enclosure fit requirements.
Optical Bonding
For outdoor readability, condensation control, impact support and reduced internal reflection in demanding projects.
Engineering scope
Touch and Cover Lens Details to Confirm
Before sample or tooling, define the touch structure, sensor IC, glass shape, surface treatment, bonding method and electrical interface.
- Touch structureRTP, PCAP, F+G, F+F, G+F, G+F+F or G+G stack direction.
- Cover lensGlass thickness, outline, holes, corner radius, printed border and logo area.
- Surface treatmentAG, AR, AF or combined treatment based on readability and touch feel.
- Bonding methodAir gap, perimeter bonding, OCA or LOCA optical bonding review.
- Controller interfaceI2C, USB, RS232 or project-specific touch controller requirements.
- Firmware tuningGlove touch, water rejection, noise handling and cover glass calibration.
- Display fitTFT active area, view area, bezel, FPC direction and mechanical clearance.
- Use environmentIndoor, outdoor, vehicle, medical, industrial or handheld conditions.
Touch structures
Common Touch Panel Stack Options
These structures are starting points. Final material, IC, FPC, cover lens and bonding details should be reviewed with the display module and product enclosure.
Film+Glass Resistive
Film+Film Resistive
Flat Surface Resistive
Glass+Film PCAP
Glass+Film+Film PCAP

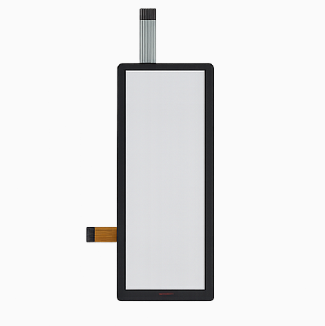

Glass+Glass PCAP
Selection guide
RTP, PCAP, Cover Lens or Optical Bonding?
The right front stack depends on input method, optical target, mechanical risk and application environment.
| Project Need | Typical Direction | What to Confirm |
|---|---|---|
| Industrial control with simple input | F+G or F+F resistive touch panel | Actuation force, tail direction, connector, overlay size and operating environment. |
| Modern multi-touch HMI | G+F, G+F+F or G+G projected capacitive touch | Touch IC, I2C or USB interface, cover lens thickness, water and glove tuning. |
| Outdoor readability | Cover lens with AG/AR treatment and optical bonding review | Brightness, reflection target, bonding method, surface treatment and sunlight exposure. |
| Medical or cleaning-sensitive panel | Chemically strengthened cover lens with AF or other surface treatment | Cleaning agent exposure, coating area, glass thickness, edge treatment and enclosure fit. |
| Vehicle or rugged product | G+G PCAP, stronger cover lens and bonding review | Vibration, temperature, EMC noise, cover lens shape and lifecycle requirements. |
RFQ preparation
What to Send for Touch and Cover Lens Review
A useful request should define the display, touch layer, cover lens and product environment together.
Display and Mechanical Data
TFT size, active area, view area, cover lens outline, holes, corner radius, thickness and enclosure limits.
Touch and Interface Data
RTP or PCAP structure, touch IC preference, I2C, USB, RS232, pinout, FPC direction and controller board limits.
Optical and Environment Data
AG/AR/AF needs, optical bonding, outdoor use, glove touch, water exposure, EMC noise and expected volume.
Optical Bonding vs Air Gap
Review bonding choices when outdoor readability, condensation or impact support matters.
Read bonding guideTFT LCD Module Fit
Start from display size, interface, brightness and mechanical constraints before confirming touch.
View TFT modulesLCD Sourcing Risks
Check supplier, lifecycle, brightness and integration risks before moving to production.
View checklistNeed a Touch Panel or Cover Lens Direction?
Send your display drawing, touch structure, cover lens requirement, surface treatment and application environment. We will review the suitable front stack path.
Touch Panel, Cover Lens and Optical Stack Selection
The front stack of an LCD module affects usability, durability, sunlight readability, cleaning method and final assembly risk. Before choosing a resistive touch panel, capacitive touch panel, cover lens or optical bonding process, define the application environment and user interaction method.
| Front stack option | Best fit | RFQ details to confirm |
|---|---|---|
| RTP resistive touch panel | Industrial controls, stylus input, glove operation and cost-sensitive devices. | Touch area, tail direction, actuation method, overlay material and expected operating environment. |
| PCAP capacitive touch panel | Modern HMI, medical devices, handheld terminals and multi-touch user interfaces. | Touch IC, cover lens thickness, glove or wet touch needs, bonding method and noise environment. |
| Custom cover lens | Products needing a defined look, logo window, protection layer, sealing or special surface finish. | Glass or PMMA, thickness, outline, ink color, logo, window size, edge treatment and tolerance. |
| Optical bonding | Outdoor, high-brightness, vibration-prone or sealed displays where readability and durability matter. | LCD size, cover lens, air gap concern, sunlight condition, thermal design and reliability test needs. |
Surface treatment choices
- AG anti-glare helps reduce reflections in bright environments.
- AR anti-reflection improves optical transmission and perceived clarity.
- AF anti-fingerprint supports easier cleaning for frequent-touch devices.
- Hard coating and strengthened glass can improve scratch and impact resistance.
What to send for front-stack review
- LCD module size, active area and outline drawing.
- Touch type preference, controller requirement and host interface.
- Cover lens material, thickness, outline, printing and surface treatment.
- Use environment, cleaning method, IP/sealing target and operating temperature.
- Sample quantity, annual forecast and production timeline.
Application Risks to Decide Early
| Application condition | Risk if not defined early | Helpful next page |
|---|---|---|
| Outdoor or high ambient light | Reflection, poor contrast and heat buildup may reduce readability. | Optical bonding vs air gap LCD |
| Industrial HMI operation | Glove touch, EMI noise, vibration and long lifecycle requirements may be missed. | Industrial TFT LCD display modules |
| High brightness display stack | Backlight, thermal design and cover lens reflection need to be reviewed together. | High brightness TFT LCD modules |
| Custom TFT LCD integration | FPC, connector, cover lens and bonding decisions can affect the whole module structure. | Custom TFT LCD modules |
Touch and Cover Lens FAQ
Should an OEM project choose RTP or PCAP touch?
RTP is often practical for stylus, glove and cost-sensitive industrial use. PCAP is usually better for modern multi-touch interfaces, thicker cover lens designs and premium user experience. The best choice depends on the application, environment and host electronics.
When is optical bonding worth considering?
Optical bonding is useful when sunlight readability, vibration resistance, condensation control or stronger front-stack durability matters. It should be reviewed together with brightness, cover lens, thermal design and reliability requirements.
Can the cover lens be customized for the device housing?
Yes. Cover lens outline, material, thickness, logo printing, window area, edge treatment and surface coating can be reviewed for OEM/ODM display projects. A mechanical drawing or housing opening helps reduce back-and-forth during review.
Review touch panel, cover lens and optical stack together
Touch and cover lens decisions affect readability, durability, noise immunity, mechanical fit and user experience. Confirm touch type, glass thickness, surface treatment and bonding needs early.
RFQ details to confirm
- Display size, resolution and interface
- Brightness, touch panel, cover lens or bonding needs
- Operating environment, quantity and lifecycle concerns
Buyer questions
When is a custom cover lens needed?
A custom cover lens is usually needed when the product requires a specific outline, logo window, thickness, surface treatment, impact requirement or enclosure fit.
What should be checked before choosing capacitive touch?
Check glove or water use, cover lens thickness, EMI environment, controller support, bonding structure and operating temperature.
