Host and touch
The LCD has a 24-bit RGB + SPI connection; do not treat it as an SPI-only graphics display. Capacitive touch uses I²C on a separate FPC.
PRODUCT EXPLORER

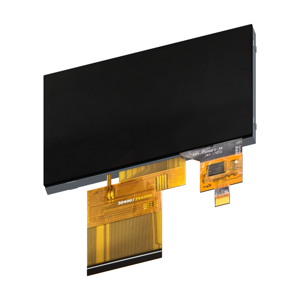

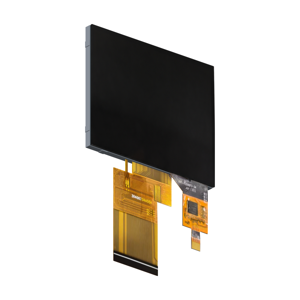

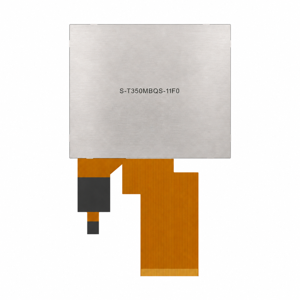

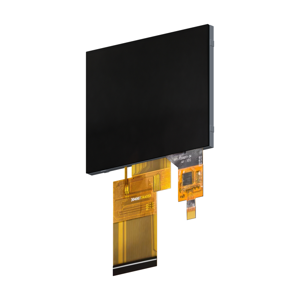

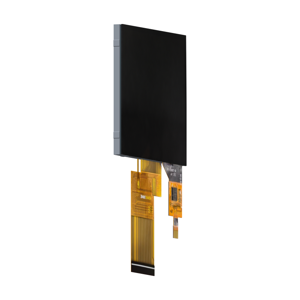

Select a view below. Open the image to enlarge.

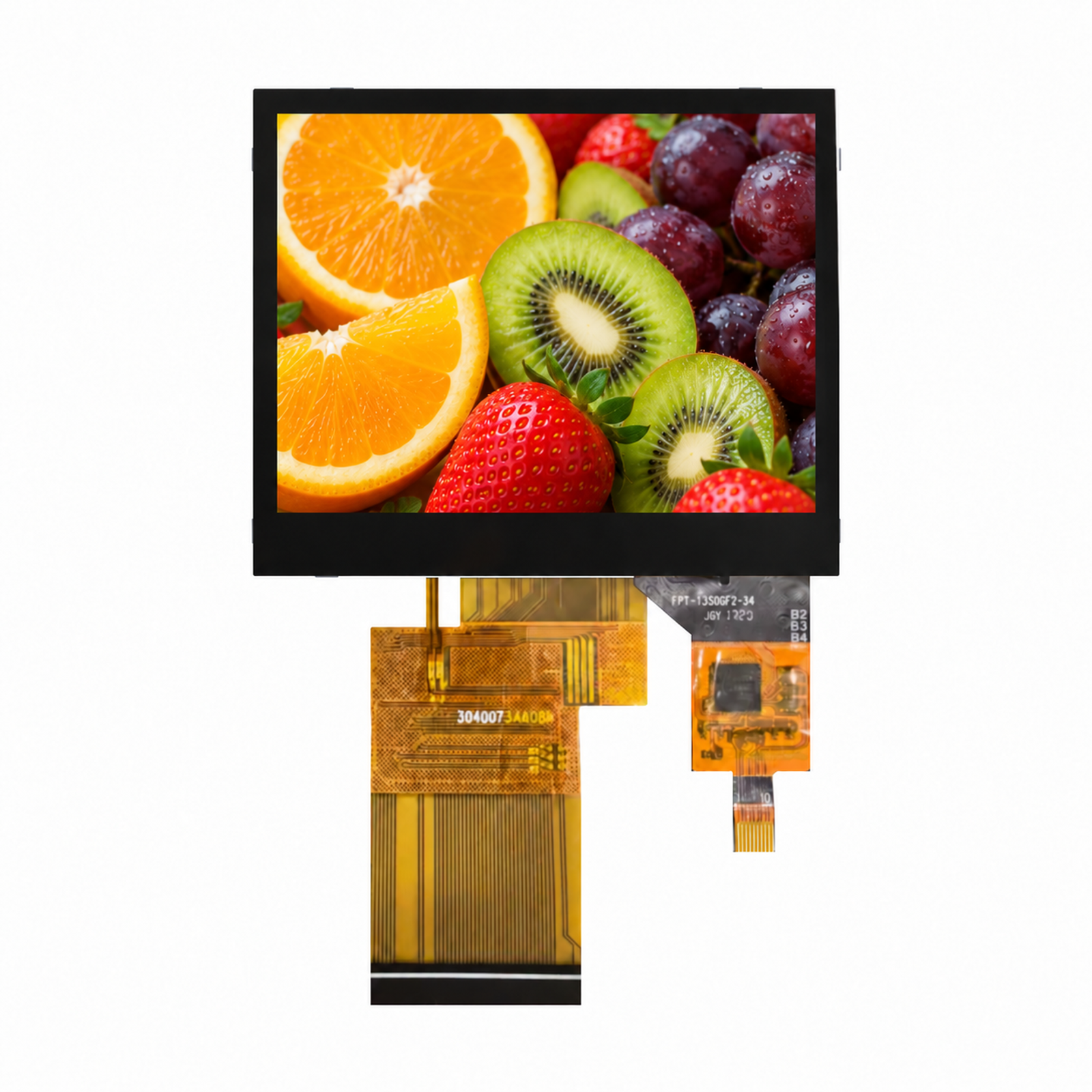

Front product rendering of the S35001D on a white background, with colorful fruit artwork displayed inside the screen. The fruit artwork is illustrative and does not represent a measured display test or included software. The module outline and two FPC tails are retained.
MODEL OVERVIEW
3.5-inch color TFT with capacitive touch
S35001D
A compact color module with separate display and touch connections. Review the RGB host, I²C touch interface and enclosure window together.
- Record type
- Module profile
- Resolution
- 320 × 240
- Connection
- 54-pin LCD + 10-pin touch FPC
- Body envelope
- 76.96 × 63.96 × 4.70 mm
Confirm current availability and the quoted revision.
01 / AT A GLANCE
Specifications & dimensions.
Drawing V00 · 2026-05-09A. Use the controlled documents supplied for your project before design release.
| Model | S35001D |
|---|---|
| Display size | 3.5 inches nominal |
| Resolution | 320 × 240 pixels, RGB; drawing notation: 320(RGB) × 240 |
| Display type | Transmissive, normally black TFT LCD |
| Viewing direction | ALL, as stated in the drawing; numerical viewing angles are not specified |
| Surface luminance | 850 cd/m², typical |
| Top polarizer | Anti-glare |
| Active area — LCD AA | 70.08 × 52.56 mm |
| Viewing area — cover VA | (70.68 ± 0.15) × (53.16 ± 0.15) mm |
| LCM outline, excluding FPC tails | (76.96 ± 0.20) × (63.96 ± 0.20) mm |
| Cover-glass outline | (76.60 ± 0.05) × (63.60 ± 0.05) mm |
| LCM thickness, excluding touch | 3.10 ± 0.20 mm |
| Body thickness, including touch | 4.70 ± 0.50 mm |
| LCD interface / driver | 24-bit RGB + SPI / ST7272A |
| LCD supply | VDD = 3.3 V |
| LCD FPC | 54 pins; 0.50 mm pitch |
| Touch construction | G+G capacitive touch; 10 touch points |
| Touch interface / controller | I²C / FT5446-P03 |
| Touch supply | 2.8–3.3 V |
| Touch FPC | 10 pins; 0.50 mm pitch |
| Cover glass | Chemically strengthened; 0.70 mm lens thickness |
| CTP transmittance | ≥85% |
| Surface hardness | 7H, as specified in the drawing |
| Backlight | Six white LED chips |
| LED circuit annotation | 19.2 V at 40 mA |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C |
02 / DESIGN-IN CHECKS
Plan the integration.
Mechanical fit
The 76.96 × 63.96 mm body excludes FPC tails. The 4.70 mm nominal thickness includes touch. Allow separate space for cable routing.
Optical and electrical conditions
850 cd/m² is a typical drawing value without a stated measurement position or test condition. The LED annotation of 19.2 V at 40 mA is separate from that luminance value.
03 / APPLICATION IDEAS
Applications to evaluate.
Suggested contexts require system validation.
Equipment controls
Check the RGB host, touch-target layout at 320 × 240 and enclosure aperture.
Instruments
Evaluate text size, viewing position and the assembled optical stack.
