Color TFT + touch

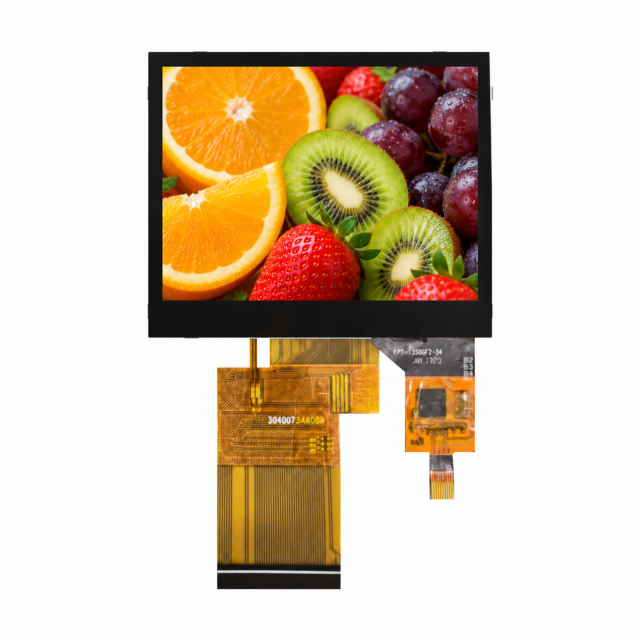

S35001D
3.5-inch display assembly
Review the display, touch connections and enclosure window together.
View six images & 3DLCD solutions.
From concept
to integration.
TFT, monochrome LCD and touch solutions for OEM & ODM products. Bring your display, interface and mechanical requirements together.
Find a starting point
for your display.
Explore product views and 3D references, then discuss the fit for your design.

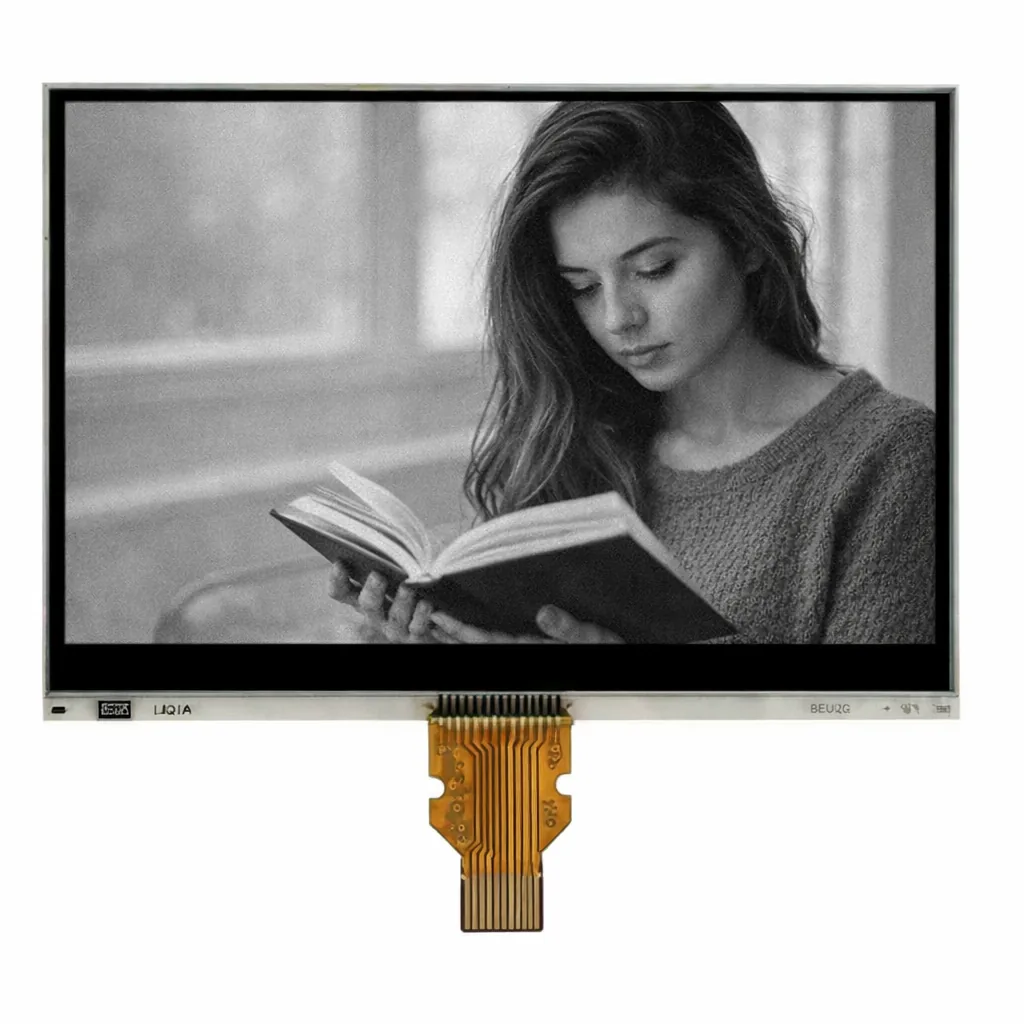

Monochrome LCD

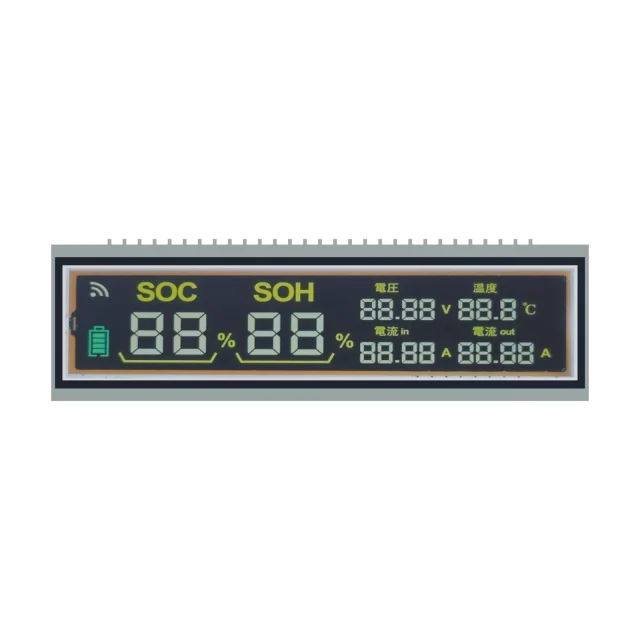

S4800D
Instrumentation reference
Explore the display layout, pin connection and module form.
View six images & 3D

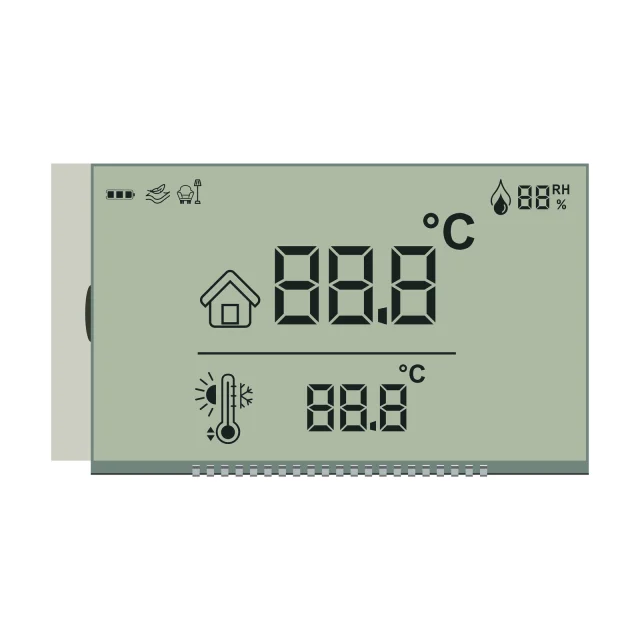

Segment LCD
S005D
Custom segment reference
Review the fixed-segment layout and complete assembly envelope.
View six images & 3DOEM references for design discussions. Final specifications, suitability and availability are confirmed for your project. Images are not shown at a common physical scale.

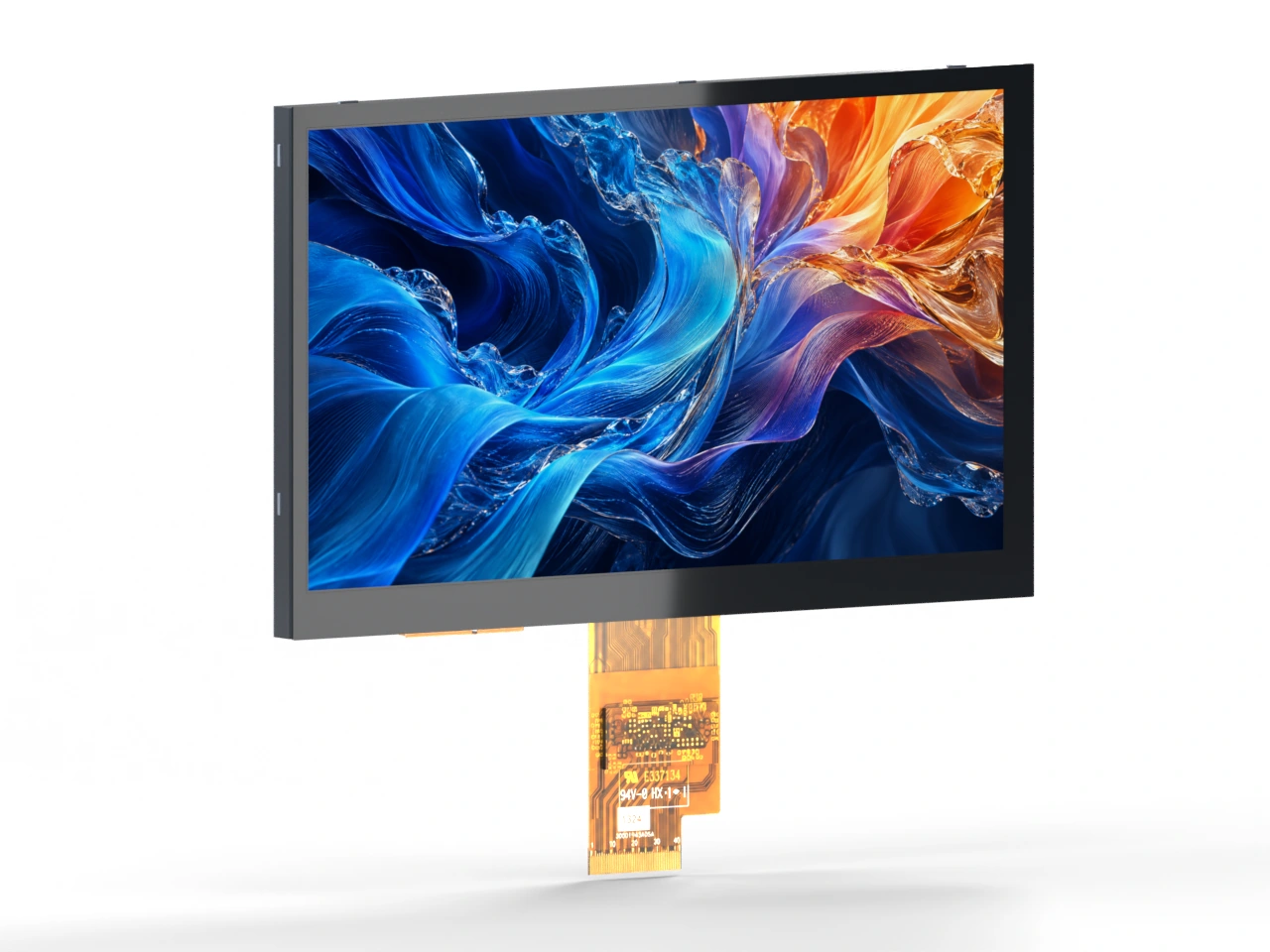

Existing TFT reference records
Consider the complete assembly.
Review the optical, electrical and mechanical details before choosing a module.
- Optical & touch
- Viewing conditions, active area, brightness, touch, cover lens, coatings and bonding.
- Electrical & mechanical
- Host interface, display timing, power, connector, FPC routing and enclosure clearance.
- Supply lifecycle
- Forecast volume, alternative modules and PCN, ECN or EOL concerns for the project.
- 01
Share the brief
Application, constraints and reference module.
- 02
Review the fit
Display, touch, interface and enclosure.
- 03
Evaluate samples
Confirm performance in your own product.
- 04
Confirm the project
Agree the configuration and supply requirements.
Built around the way it will be used.
Information that moves
with the drive.
Consider readability, interaction and dashboard integration together for in-vehicle display experiences.
Information at a glance.
Control at your fingertips.
For equipment interfaces, begin with viewing distance, ambient light and the way operators interact with the display.
Clarity for
complex information.
Discuss information density, touch interaction, viewing conditions and enclosure integration for your device requirements.
A natural part
of everyday spaces.
Consider the screen, cover glass and enclosure together for control panels that fit the spaces people use every day.
Illustrative application scenes. Product suitability depends on the requirements of each project.
Guides for your next decision.
Go directly to the question your team is working through.
- Replacing or Sourcing a Module?LCD Sourcing Risk Checklist
- Choosing an Optical Stack?Optical Bonding vs Air Gap
- Matching the Host Board?MIPI vs LVDS vs RGB
- Planning a Custom Display?Custom LCD Project Roadmap
Browse Application Requirements
Your next display.
Start with what you know.
A size alone is not enough. Share your application, reference module and any host-board or enclosure limits.
The starting point may be a standard module, a modified module or a custom solution.
Send a display briefUseful details for the review
- Display
- Size, active area, resolution, target brightness and viewing direction.
- Host Interface
- MIPI, LVDS, RGB, SPI, MCU, eDP or the reference controller requirement.
- Environment
- Operating temperature, sunlight exposure, coatings and sealing needs.
- Integration
- Touch, cover lens, optical bonding, FPC, connector and mechanical constraints.
- Project
- Stage, forecast volume, lifecycle concerns and target schedule.
