RGB Host And Timing
Confirm the host processor, RGB data mapping, pixel clock, synchronization and logic levels. A 50-pin connector alone does not establish compatibility.

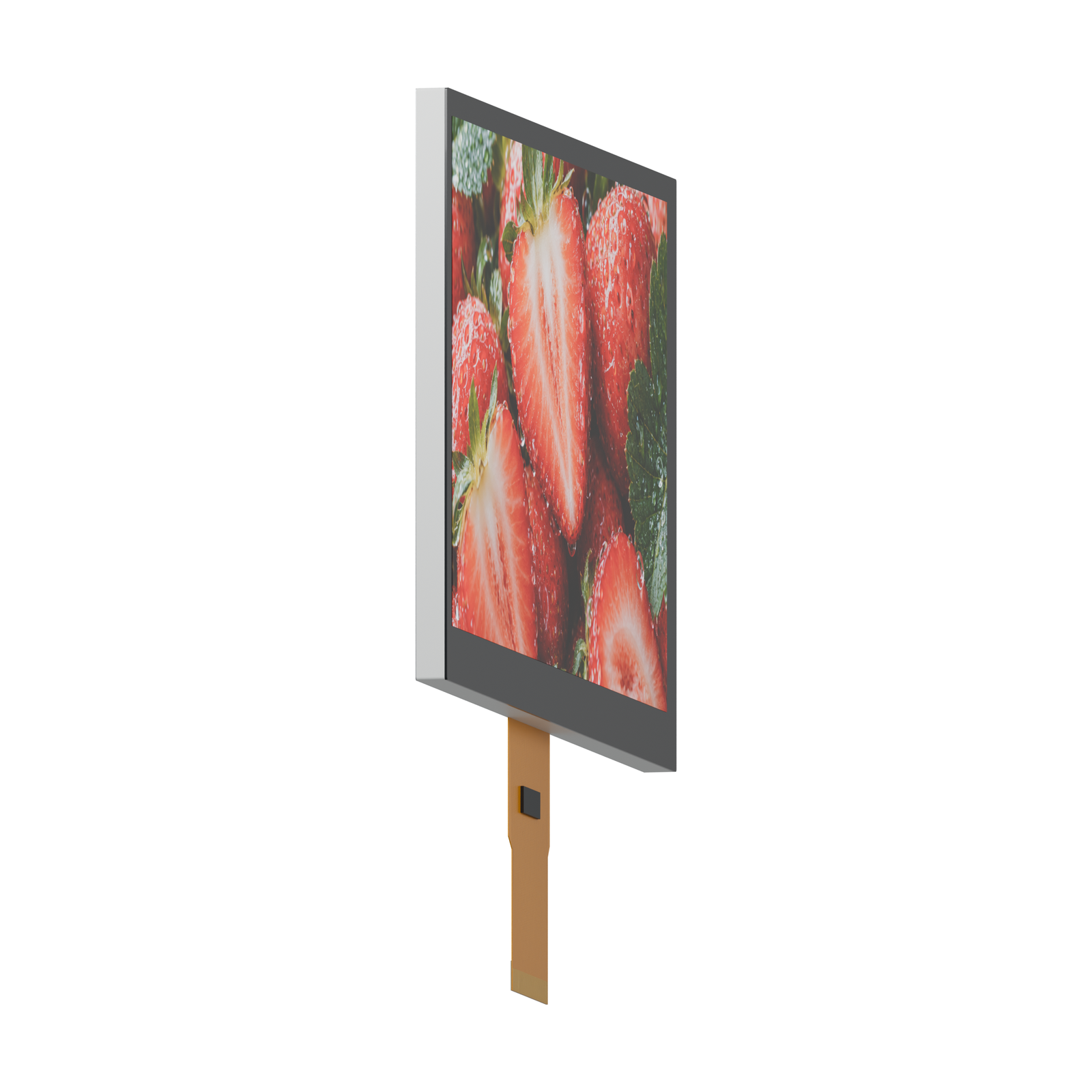

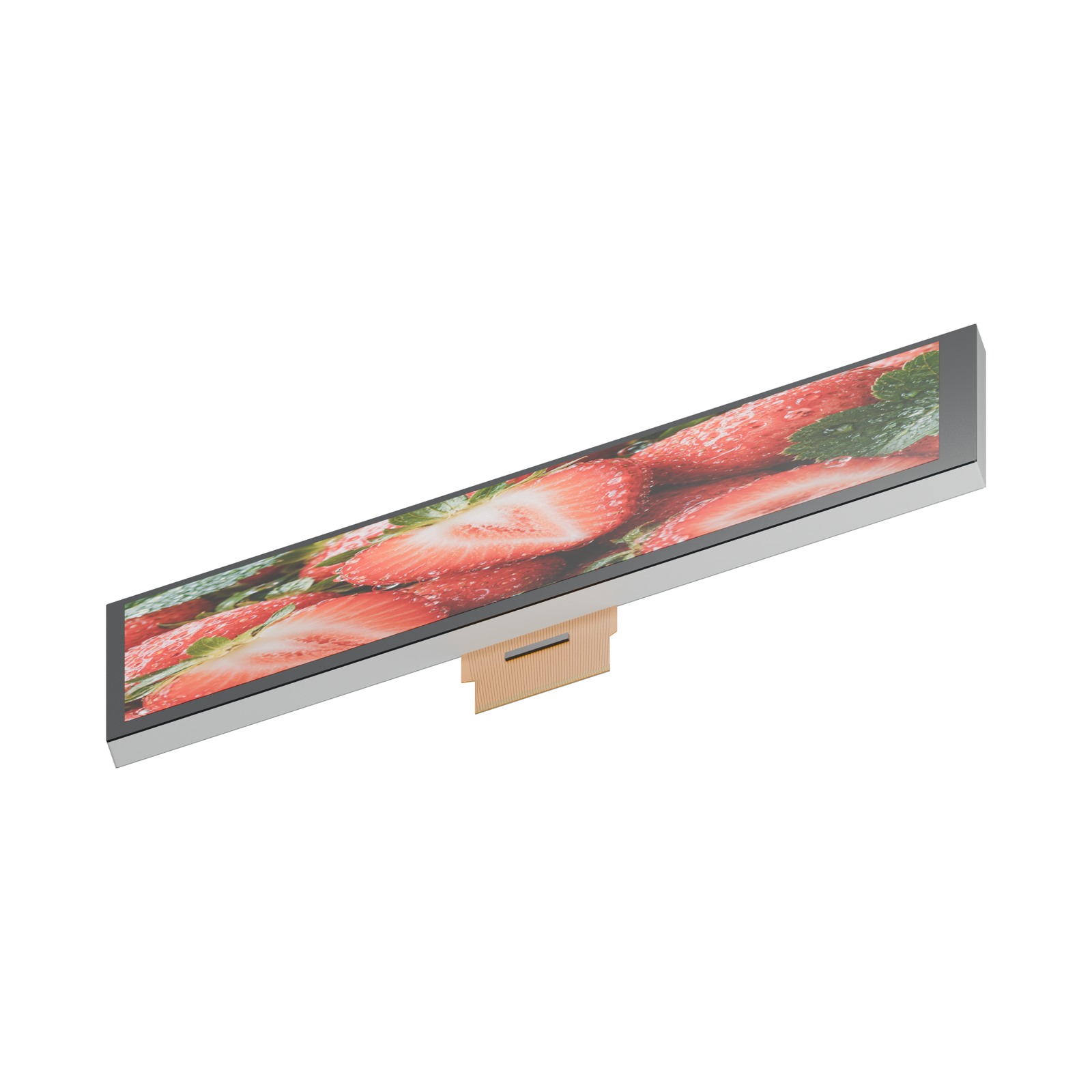

PRODUCT EXPLORERFront view
Explore six views, or load the interactive 3D model.

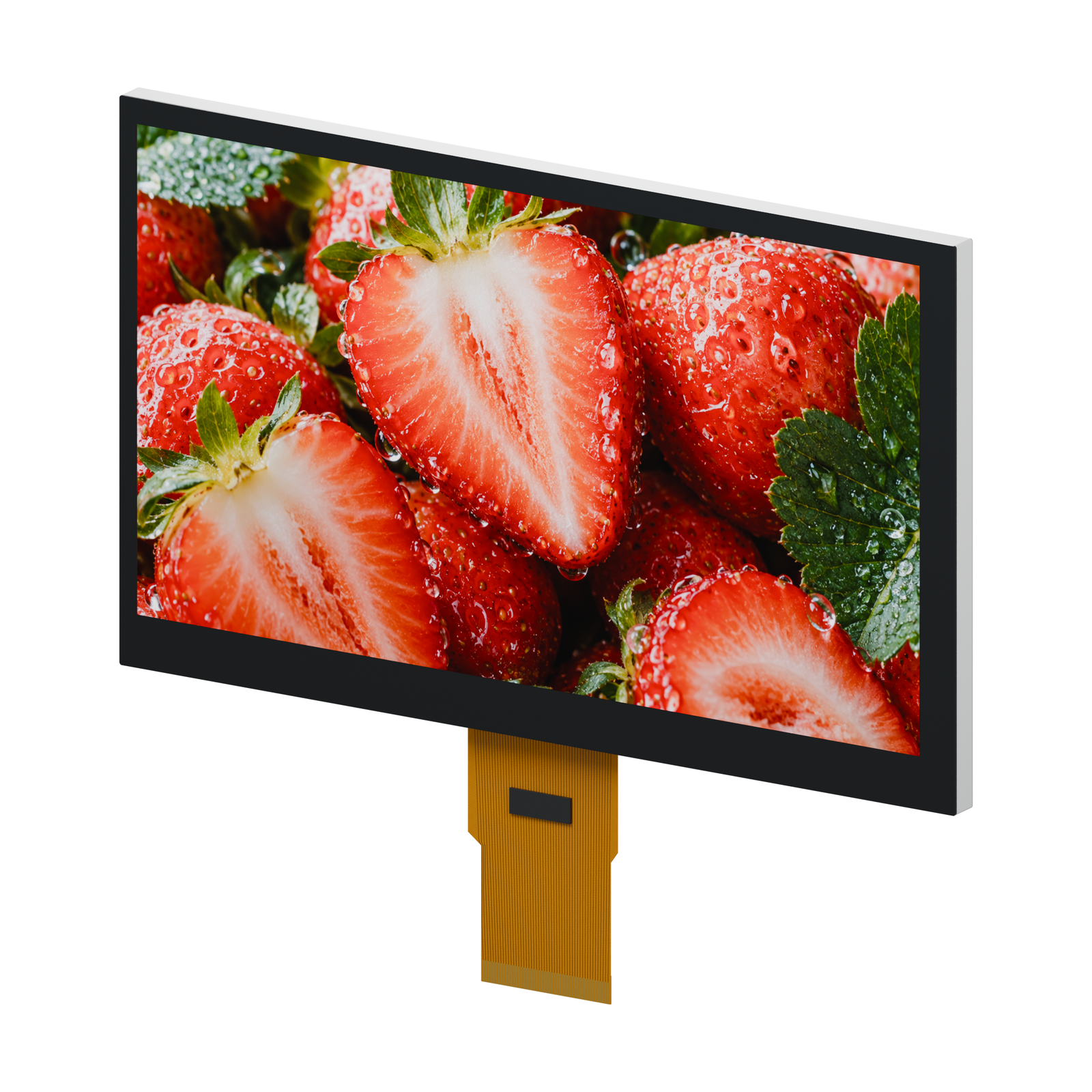

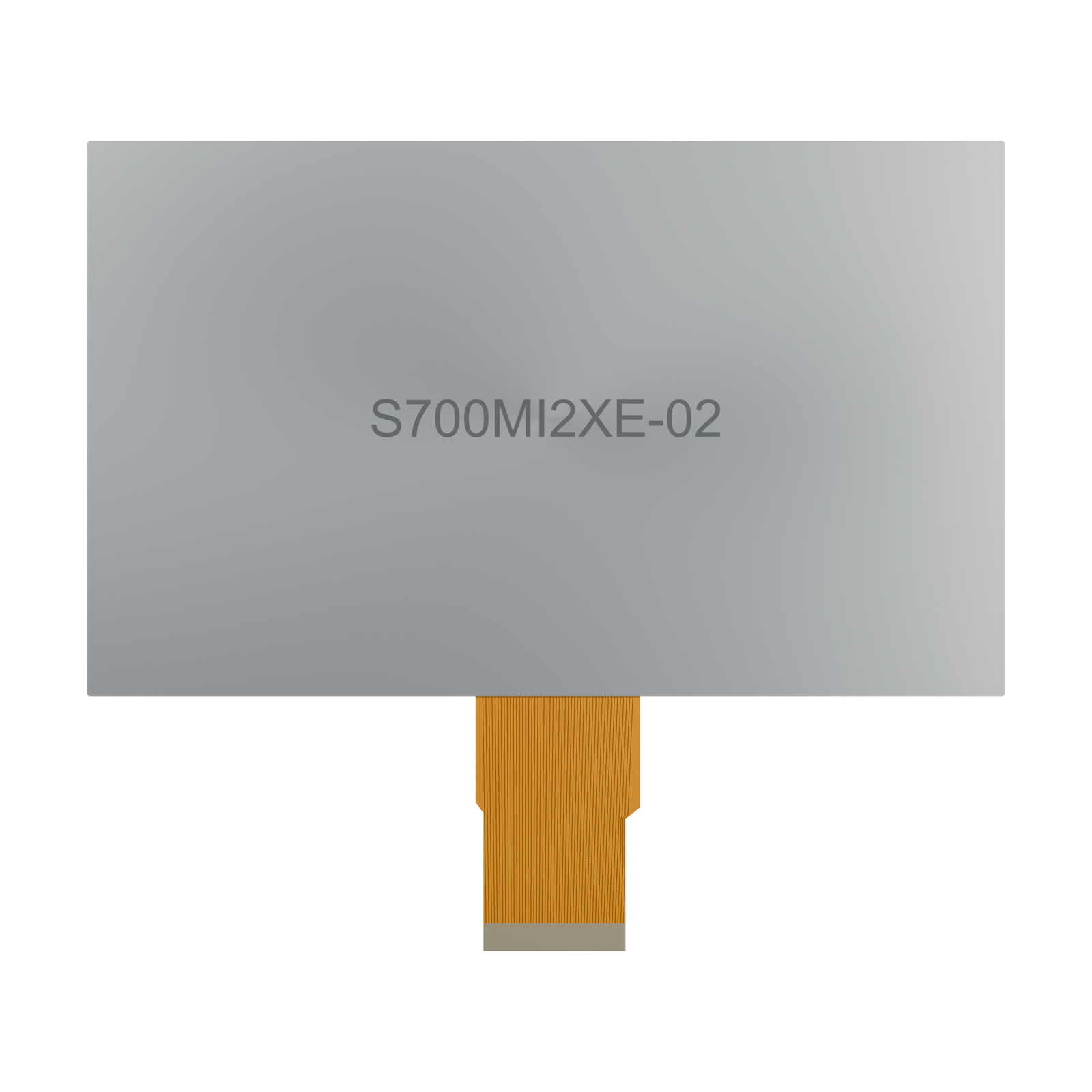

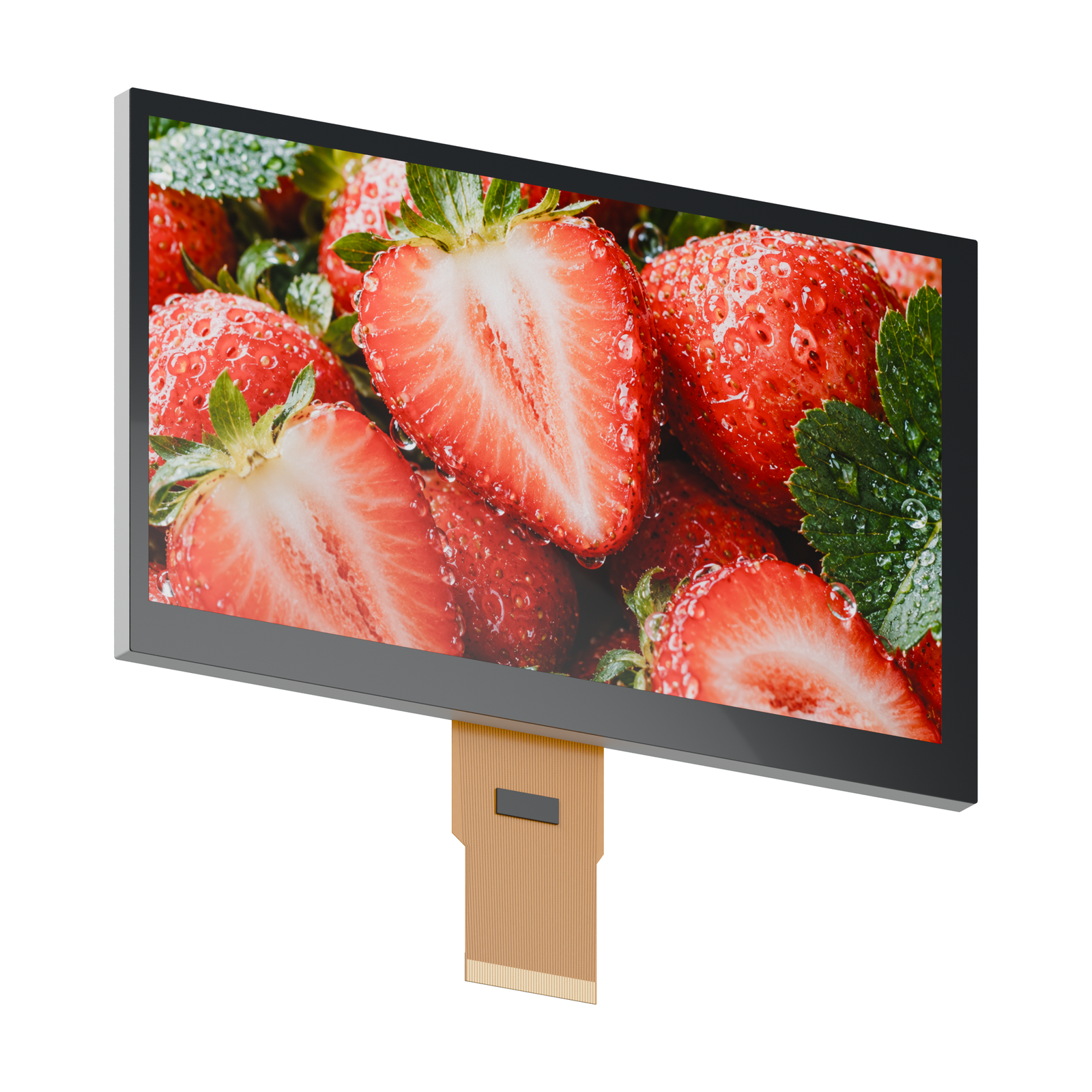

Front visualization of S700MI2XE-02, a 7-inch landscape RGB display. The image illustrates the product form; materials, screen artwork and fine details are visual references. Final construction is confirmed for the OEM project.
OEM DISPLAY REFERENCE · TFT LCD

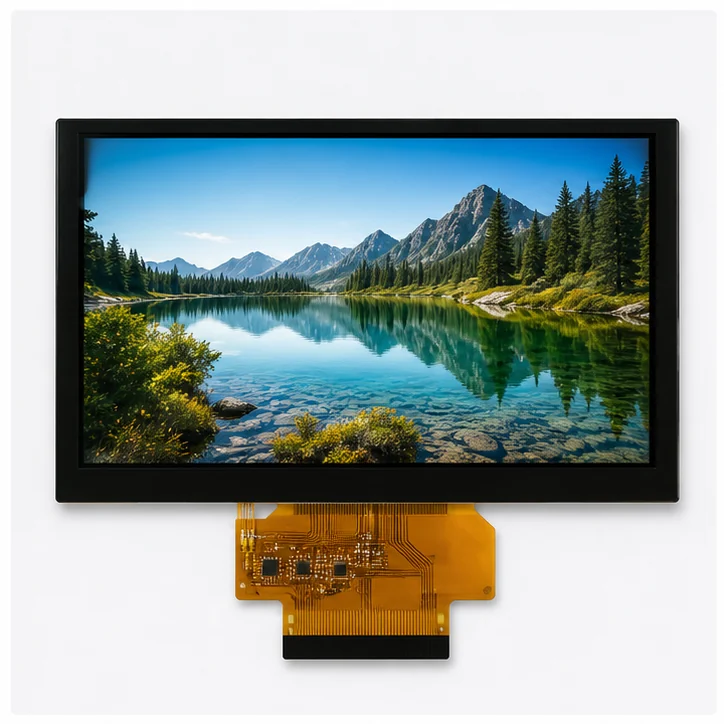

S700MI2XE-02
7-Inch 1024 × 600 RGB TFT LCD
S700MI2XE-02 is a 7-inch, 1024 × 600 TFT LCD reference with a 24-bit parallel RGB interface and a 50-pin FPC. Evaluate it for equipment menus and measured values when your host can supply the required RGB timing. The reviewed drawing does not specify an included touch panel; final configuration and suitability are confirmed for the project.
7-inchDisplay size
1024 × 600Resolution
RGBHost interface
Interactive 3DExplore the product
Share your host interface, enclosure space, quantity and target application.
A starting point for your custom display.
Images, 3D and parameters are reference information. Final dimensions, electrical requirements and construction are confirmed for your project.
01 / REFERENCE CONFIGURATION
Start With The Essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S700MI2XE-02 |
|---|---|
| Reference configuration | Landscape RGB display |
| Nominal display size | 7-inch |
| Body width × height (reference) | 164.8 × 99.8 mm |
| Resolution | 1024 × 600 pixels |
| Display interface | RGB |
| Touch configuration | The reviewed drawing does not specify an included touch panel; confirm the project configuration. |
| Body Thickness | 5.50 ±0.3 mm |
| Active Area | 154.21 × 85.92 mm |
| Bezel Opening | (156.70 ±0.20) × (89.10 ±0.20) mm |
| FPC | 50 pins; 0.50 mm pitch |
02 / OEM DESIGN
Make The Display Fit Your Product.
Bring your requirements. We will review the configuration with you.
Enclosure And Cable Clearance
Align the viewing opening to the active area and bezel opening. Reserve space below the 164.80 × 99.80 mm module body for the FPC; the body outline does not describe the complete cable routing space.

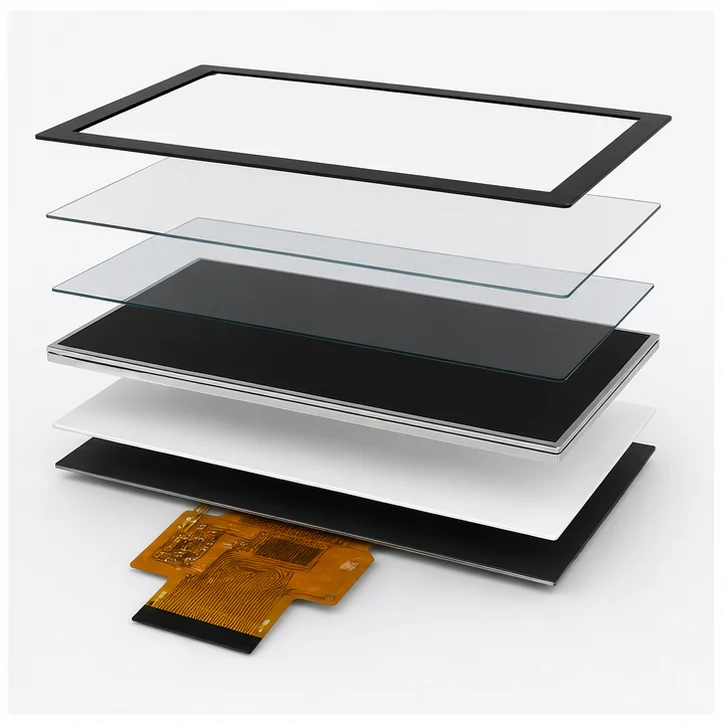

Touch And Operating Conditions
State whether touch or a cover lens is required. Share the installation temperature, ambient light and viewing position so that the complete display stack can be reviewed.
03 / SUGGESTED APPLICATIONS
Embedded Color Interfaces.
Evaluate the landscape screen for equipment menus, measured values and status information. Check text size at 1024 × 600, the viewing position and the host timing with the intended system.
04 / PRODUCT SUPPORT
From Reference To Your Design.
Is S700MI2XE-02 a fixed specification?
This page presents a reference design for OEM discussions. The final specification and available customization are confirmed against your project requirements.
What should I send for an OEM quotation?
Include S700MI2XE-02, your application, enclosure dimensions, host interface, touch requirements, sample and production quantities, and target schedule.
What does the 3D model show?
The interactive model helps you explore the product form and connection arrangement. It is a visual reference; use the project-confirmed engineering information for assembly design.
YOUR NEXT LCD PROJECT
Let’s Shape Your Display.
Include S700MI2XE-02, your host processor and RGB timing, enclosure opening, touch or cover-lens needs, sample quantity and production forecast. Add the operating environment and target project date.
