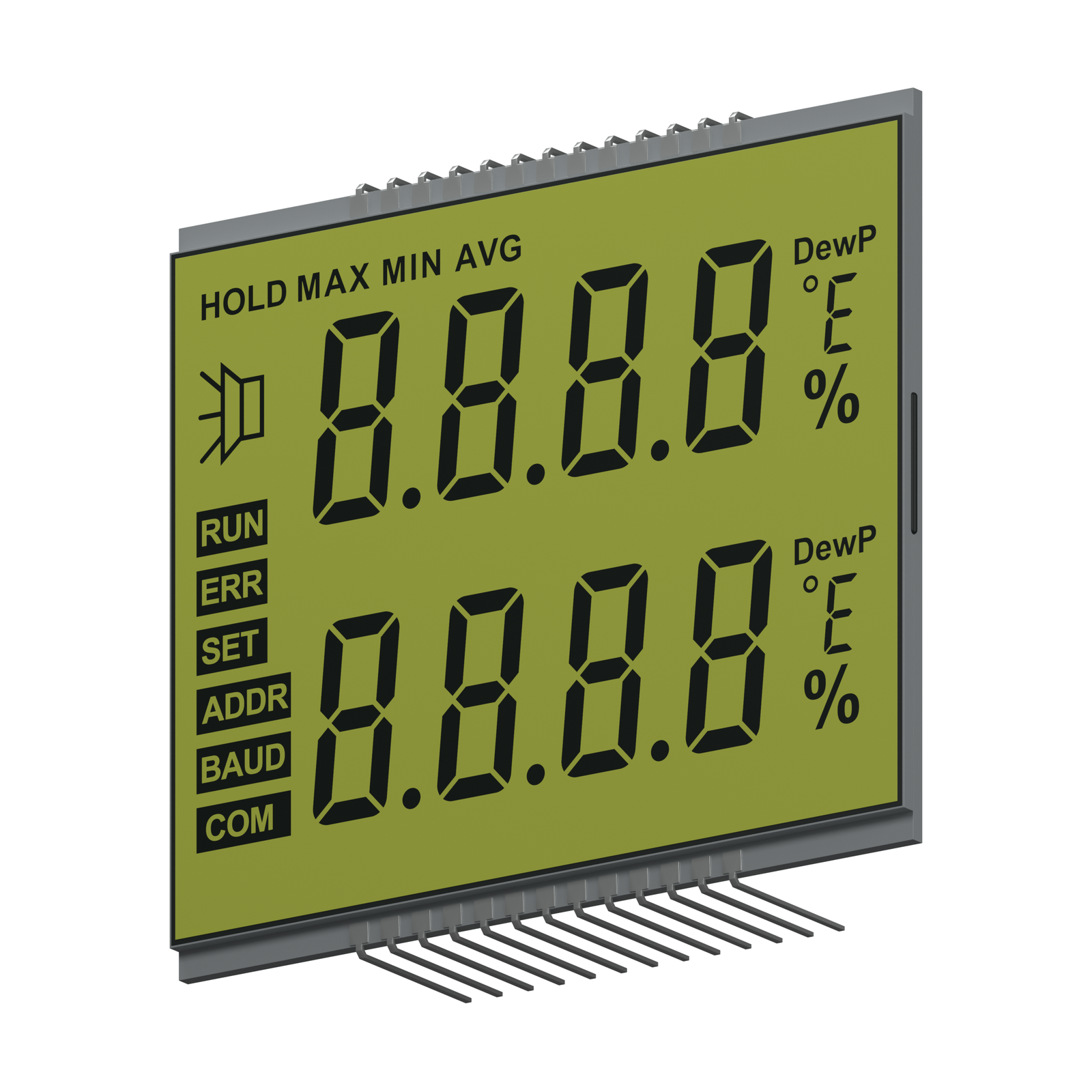

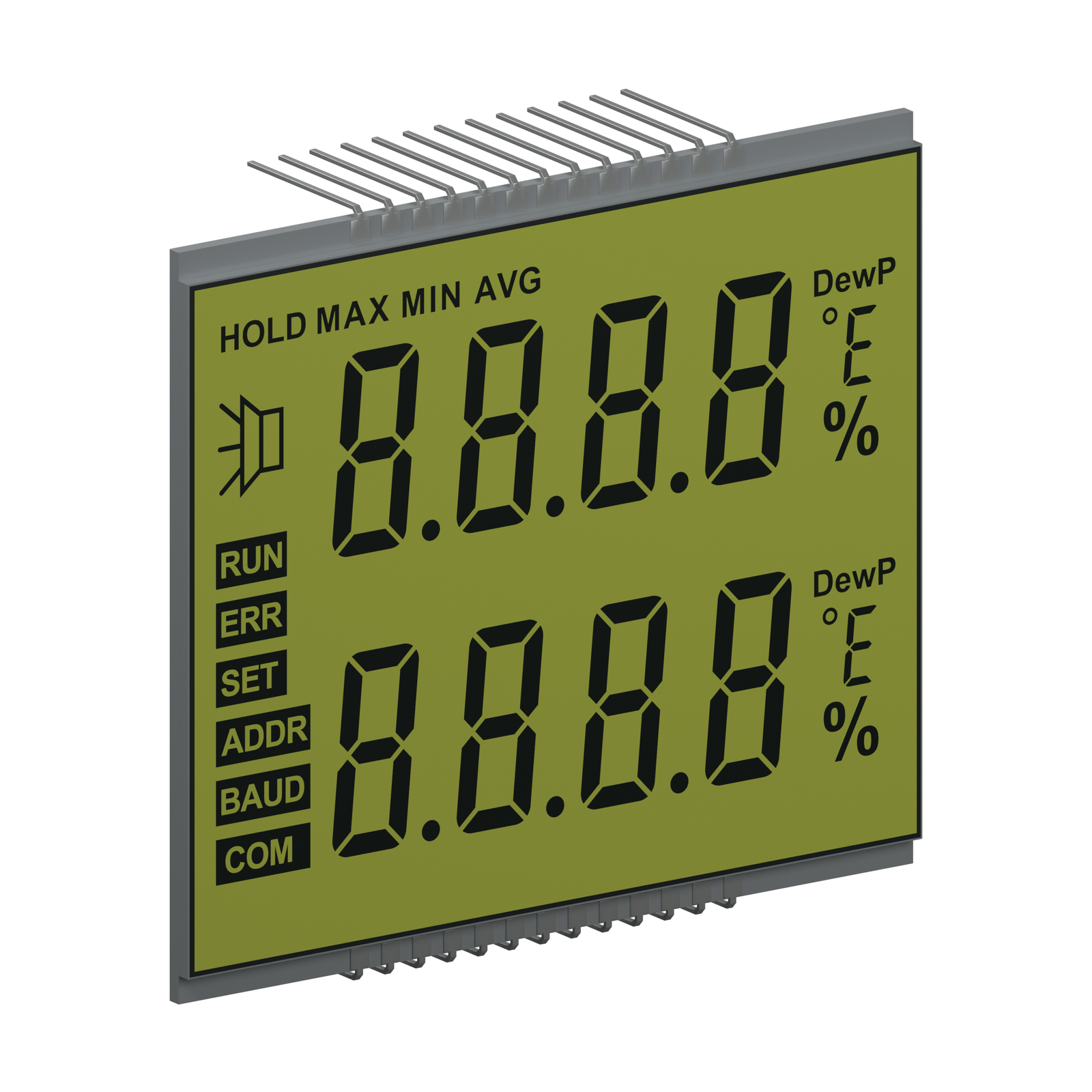

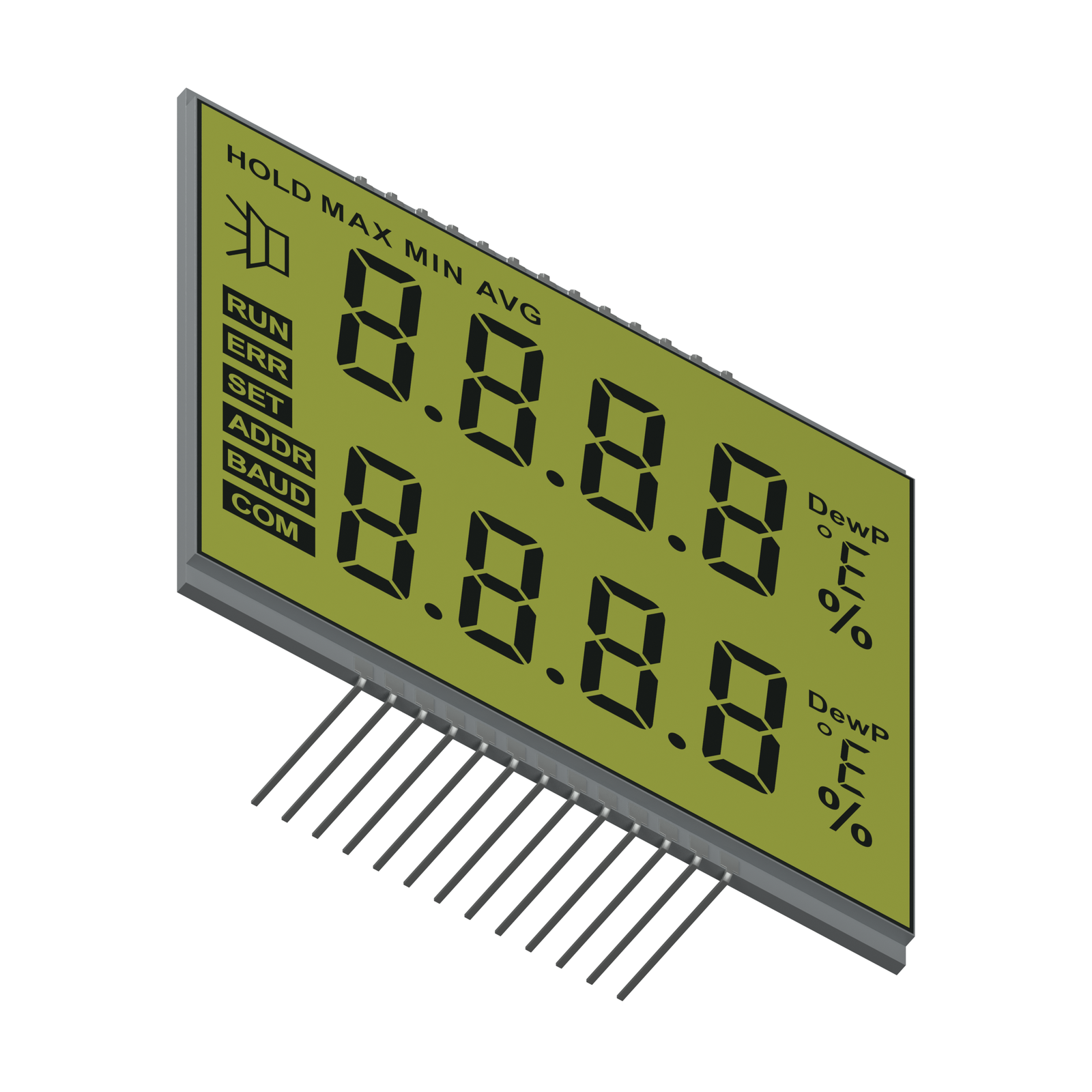

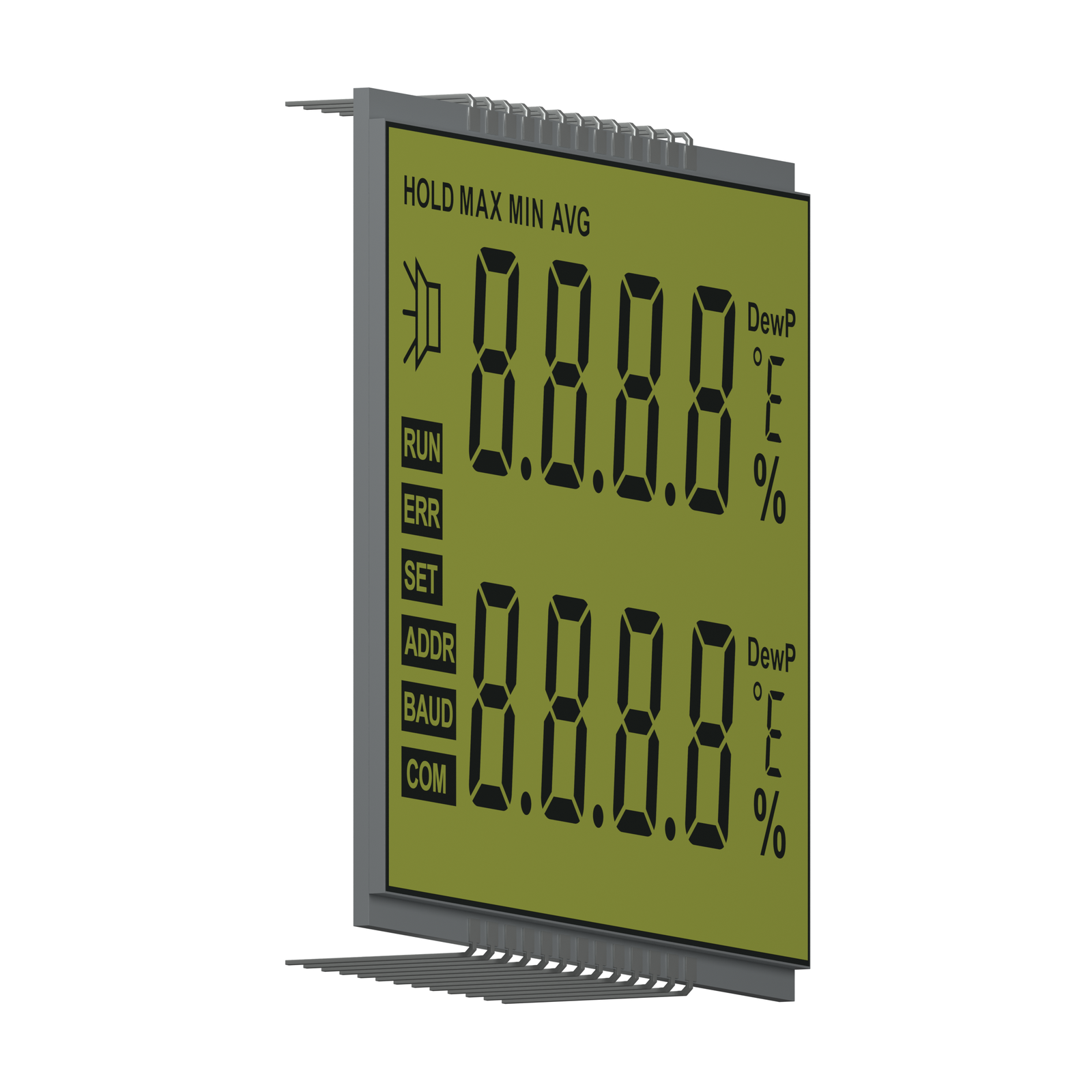

Front rendering of S3543D, showing the screen artwork and glass outline. Materials and fine geometry are visual references for the OEM project.
OEM DISPLAY REFERENCE

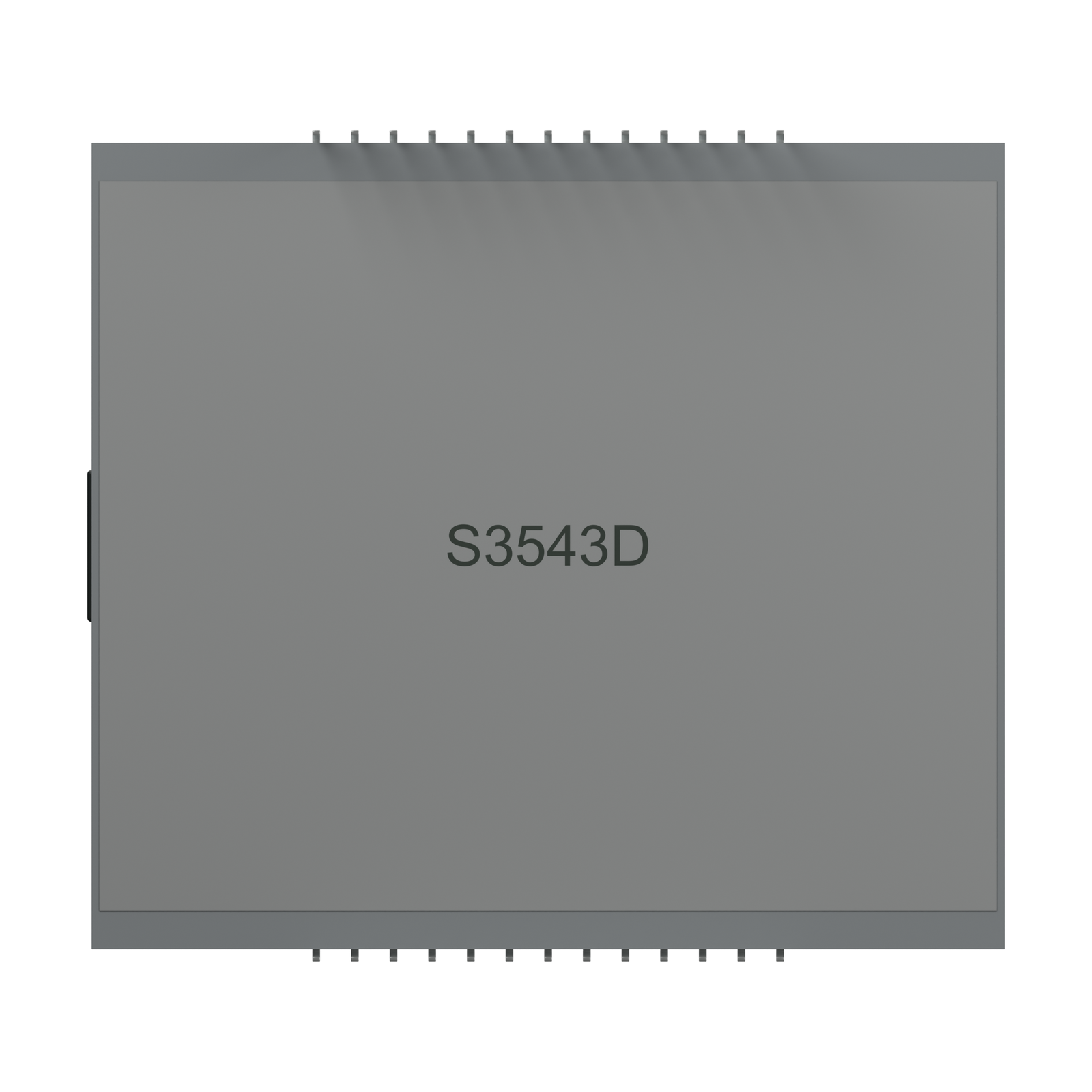

S3543D
Yellow-green STN dual-reading instrument display reference
S3543D is a yellow-green, positive-mode STN segmented LCD reference with two four-digit readings. Its artwork includes °C, °F, % and dew-point units, HOLD, MAX, MIN and AVG markers and RUN, ERR, SET, ADDR, BAUD and COM labels.
58.00 × 47.00 mmMinimum viewing area
3.0 VLCD operating voltage
A starting point for your custom display.
Images, 3D geometry and listed parameters are OEM reference information. Final dimensions, electrical requirements, optical configuration and construction are confirmed for your project.
Product video
Short product video. Playback starts when you press play.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S3543D |
|---|---|
| Display mode | STN (yellow-green), positive |
| Rear glass width × height | 60.00 ± 0.20 × 53.00 ± 0.20 mm |
| Front glass width × height | 60.00 ± 0.20 × 49.00 ± 0.20 mm |
| Minimum viewing area | 58.00 × 47.00 mm |
| LCD thickness | 2.80 mm maximum |
| Glass thickness per layer | 1.10 ± 0.10 mm |
| Connection | Pins along the upper and lower edges |
| Pin pitch | 2.54 mm |
| LCD operating voltage | 3.0 V |
| Drive condition | 1/4 duty, 1/3 bias |
| Frame frequency | 64 Hz |
| Viewing direction | 6 o’clock |
| Rear polarizer | Reflective, adhesive |
| Front polarizer | Transmissive, adhesive |
| Operating temperature | −20 °C to +70 °C |
| Storage temperature | −30 °C to +80 °C |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
Reflective viewing
A reflective rear polarizer is listed. Review readability under the expected ambient lighting and the 6 o’clock viewing direction.
Upper and lower pin rows
Check the 2.54 mm pin pitch and rearward clearance against the PCB layout and enclosure depth.
03 / APPLICATION DIRECTION
Instrumentation
Use this reference to plan paired measurement readings, units and setup labels on an instrument display. Confirm the required labels and digit ranges, and validate the complete instrument for its operating environment.
04 / PRODUCT SUPPORT
From reference to your design.
Which drive settings are listed for S3543D?
The reference lists 3.0 V LCD operating voltage, 1/4 duty, 1/3 bias and 64 Hz frame frequency. Check them against your LCD driver; final electrical requirements are confirmed for the project.
Do the ADDR, BAUD and COM labels specify a communication interface?
No. They are display labels. The LCD connects through pins; any communication interface belongs to the instrument design.
