Playback information
Specify which digits, units and playback states the interface must display, then confirm their COM/SEG allocation.
PRODUCT EXPLORERFront view
Rotate, zoom and inspect the product. Loads on request.
Front rendering of S04776D, showing the screen artwork and glass outline. Materials and fine geometry are visual references for the OEM project.
OEM DISPLAY REFERENCE
S04776D
Compact HTN audio display reference

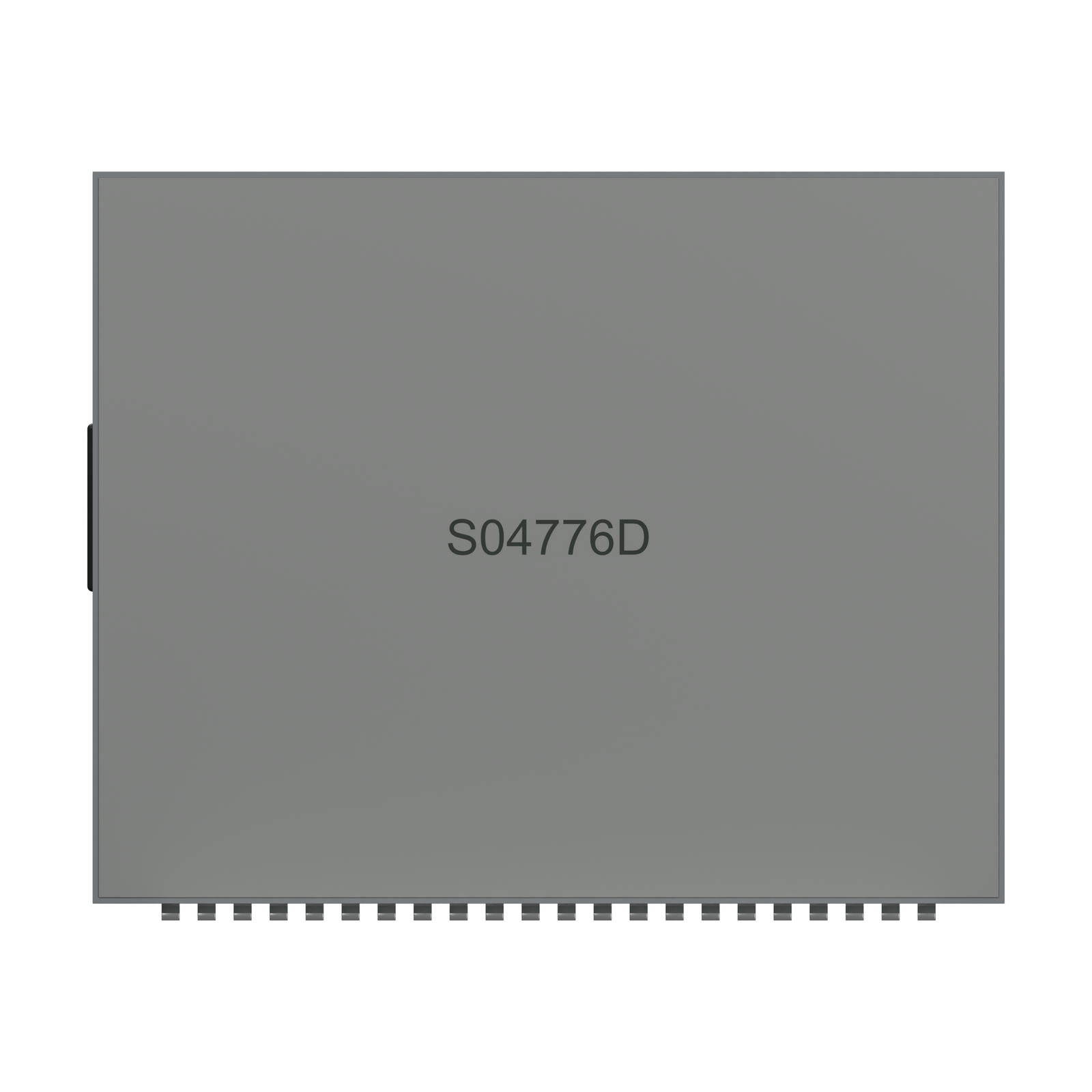

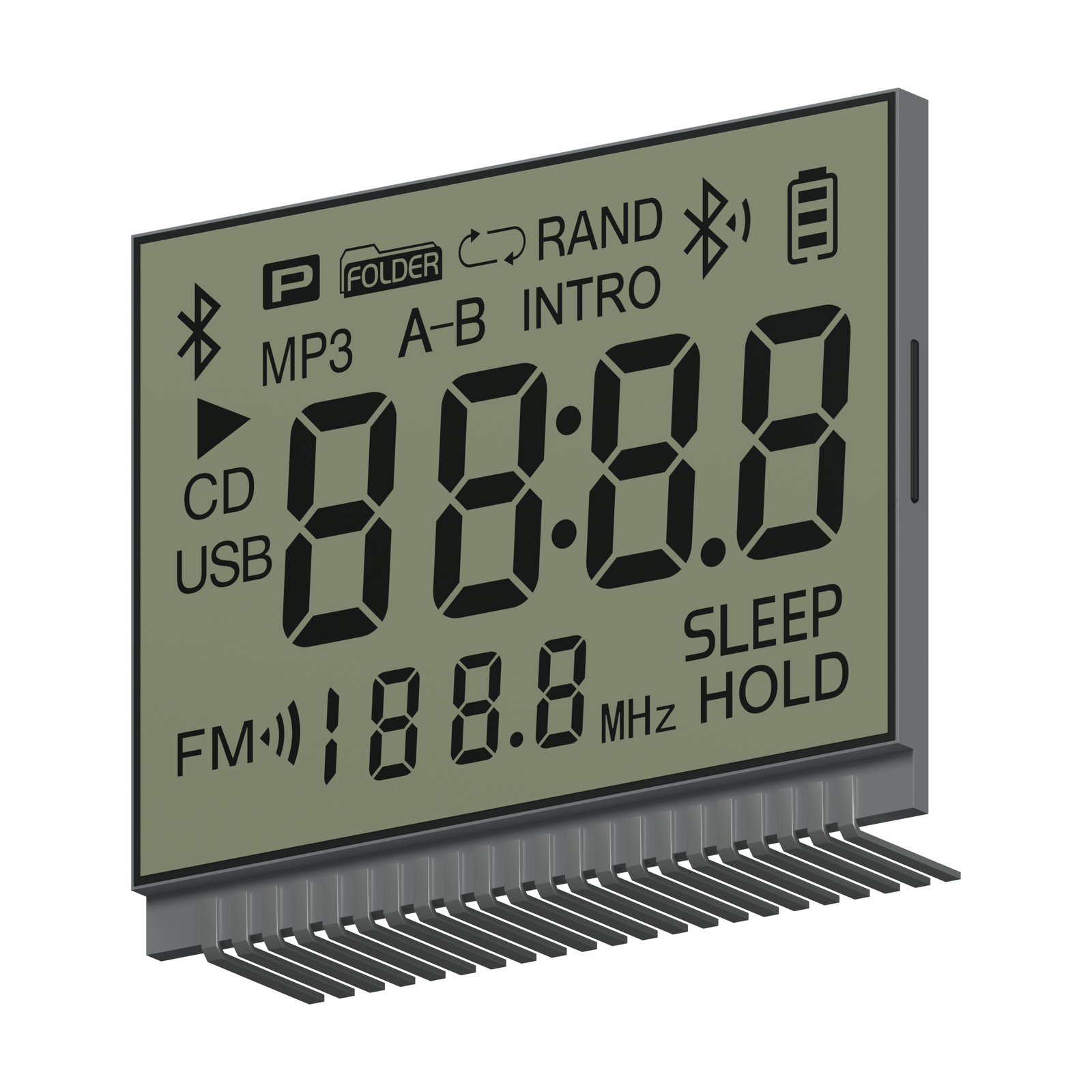

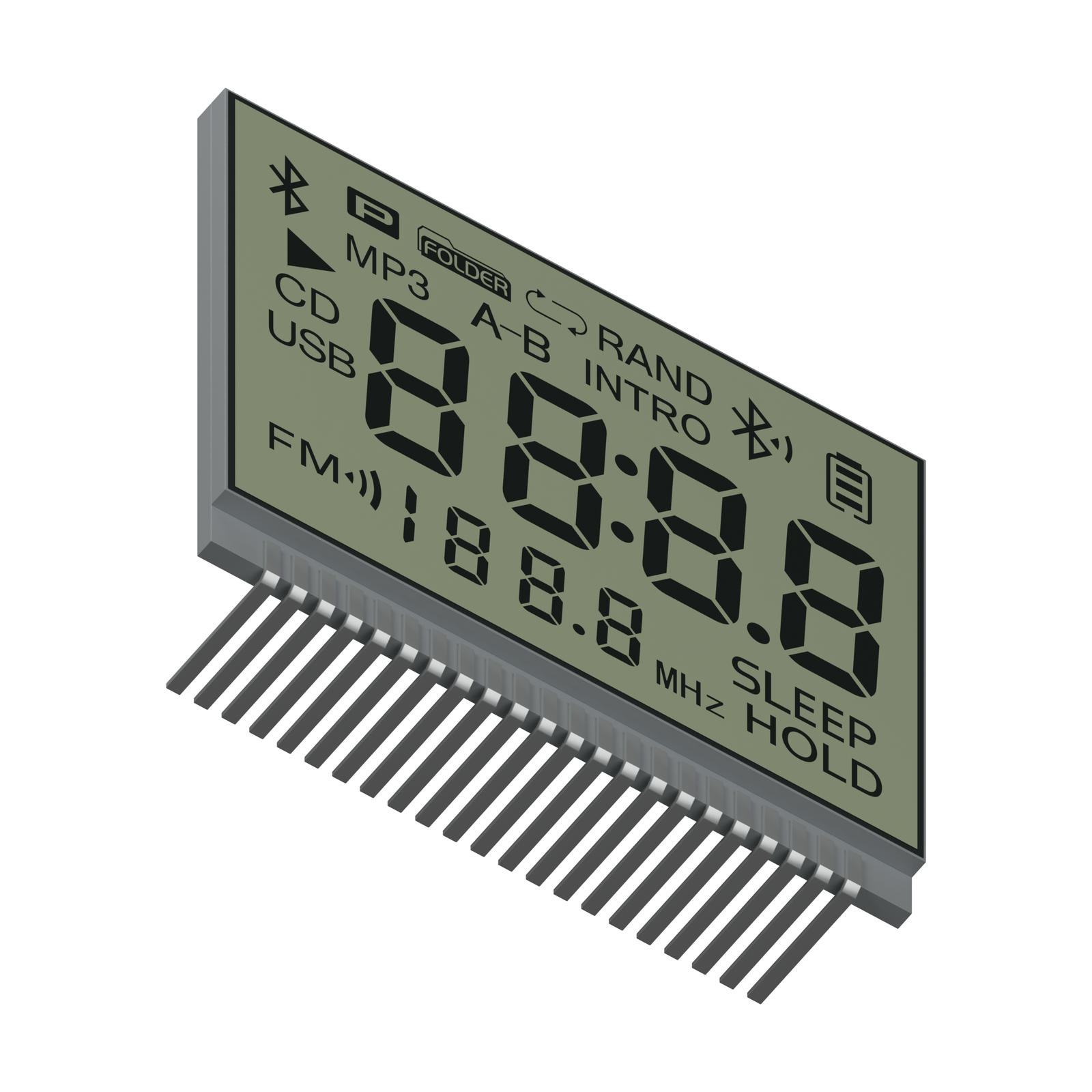

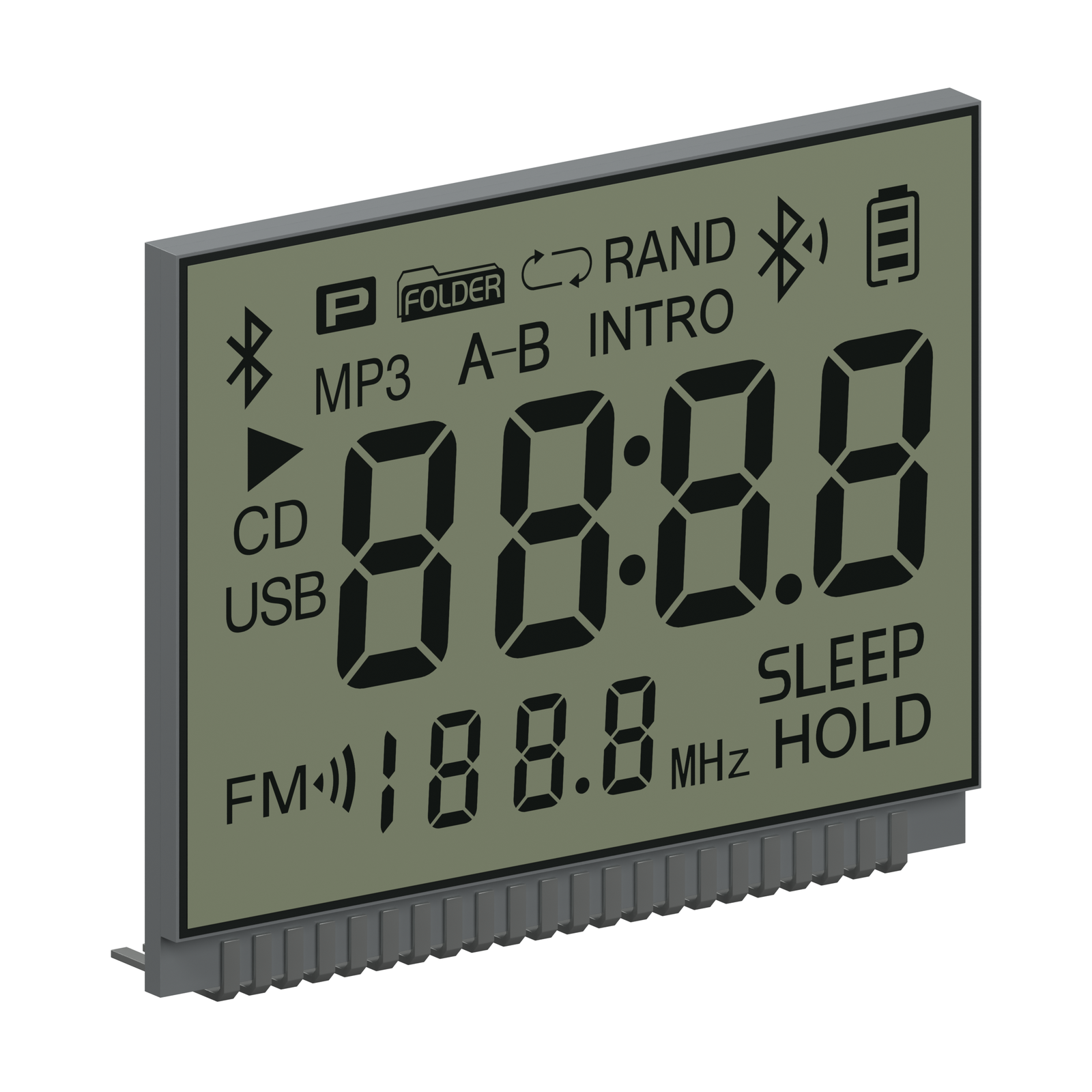

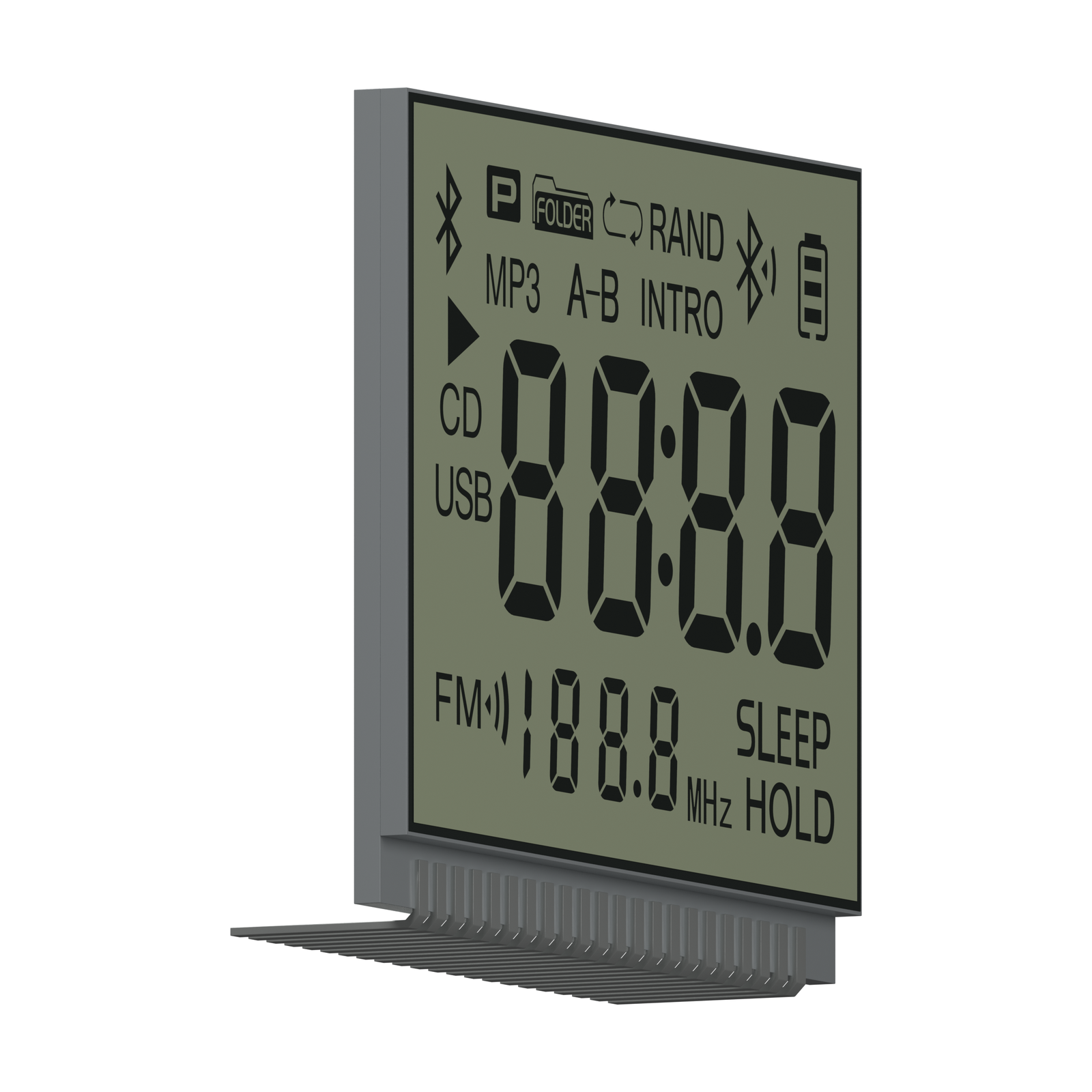

S04776D brings playback labels, large segmented digits and a smaller frequency field into a compact HTN glass display. The artwork includes CD, USB, FM and battery indicators for reviewing an audio product interface.
36.00 × 26.00 mmMinimum viewing area
2.80 mm maximumLCD thickness
A starting point for your custom display.
Images, 3D geometry and listed parameters are OEM reference information. Final dimensions, electrical requirements, optical configuration and construction are confirmed for your project.
Product video
Short product video. Playback starts when you press play.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S04776D |
|---|---|
| Display type | HTN LCD |
| Rear glass width × height | 38.00 ± 0.20 × 30.50 ± 0.20 mm |
| Front glass width × height | 38.00 ± 0.20 × 28.00 ± 0.20 mm |
| Minimum viewing area | 36.00 × 26.00 mm |
| LCD thickness | 2.80 mm maximum |
| Glass thickness per layer | 1.10 ± 0.10 mm |
| Connection | Pins |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
Enclosure and connections
Check the glass step, rearward pin clearance and mounting opening together. Confirm the final pin count, pitch and assignment before PCB layout.
LCD driver selection
Confirm the LCD operating voltage, multiplex drive and optical configuration for the project before choosing a driver.
03 / APPLICATION DIRECTION
CD players
Review the playback states, track or time fields and source-selection labels required by a CD player. The host electronics provide audio decoding, radio and communication functions; symbols on the glass describe the interface artwork.
04 / PRODUCT SUPPORT
From reference to your design.
Does this LCD include Bluetooth or USB electronics?
The Bluetooth and USB symbols are display artwork. Communication hardware and audio electronics are separate project requirements.
Can the 3D model be used directly for PCB layout?
Use it to review the enclosure and assembly concept. Final pin geometry and electrical assignments require the agreed engineering drawing.
YOUR NEXT LCD PROJECT
Let’s shape your display.
Share your required display content, enclosure space, drive arrangement, operating environment and target quantity.
