Wide panel opening
Check the 108.00 × 21.30 mm minimum viewing area and the 112.50 × 23.30 mm rear glass outline against the panel opening.
PRODUCT EXPLORERFront view
Rotate, zoom and inspect the product. Loads on request.

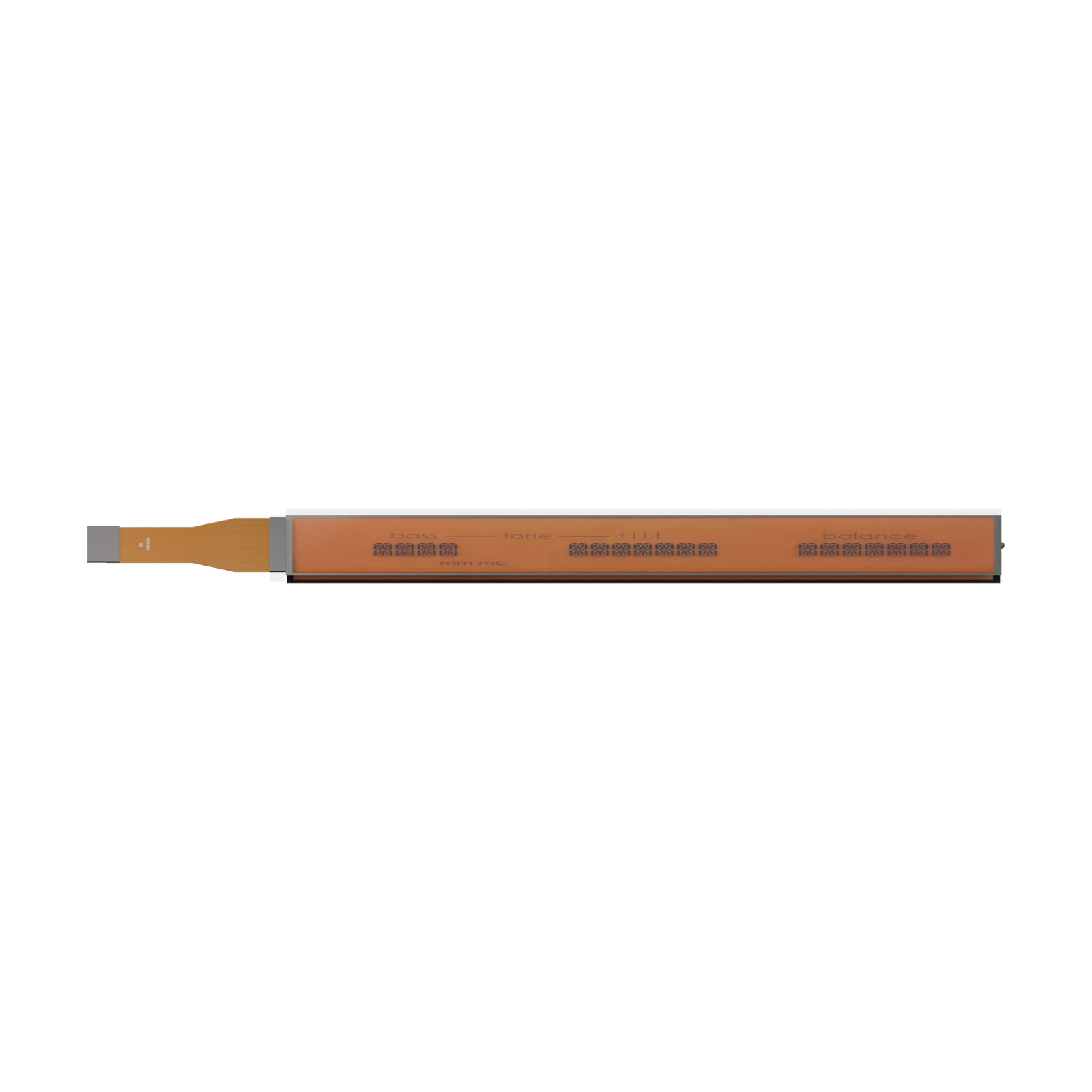

Front rendering of S3630D, showing the display artwork and glass outline. Materials and fine geometry are visual references for the OEM project.
OEM DISPLAY REFERENCE
S3630D
Wide HTN audio display with a flexible printed circuit

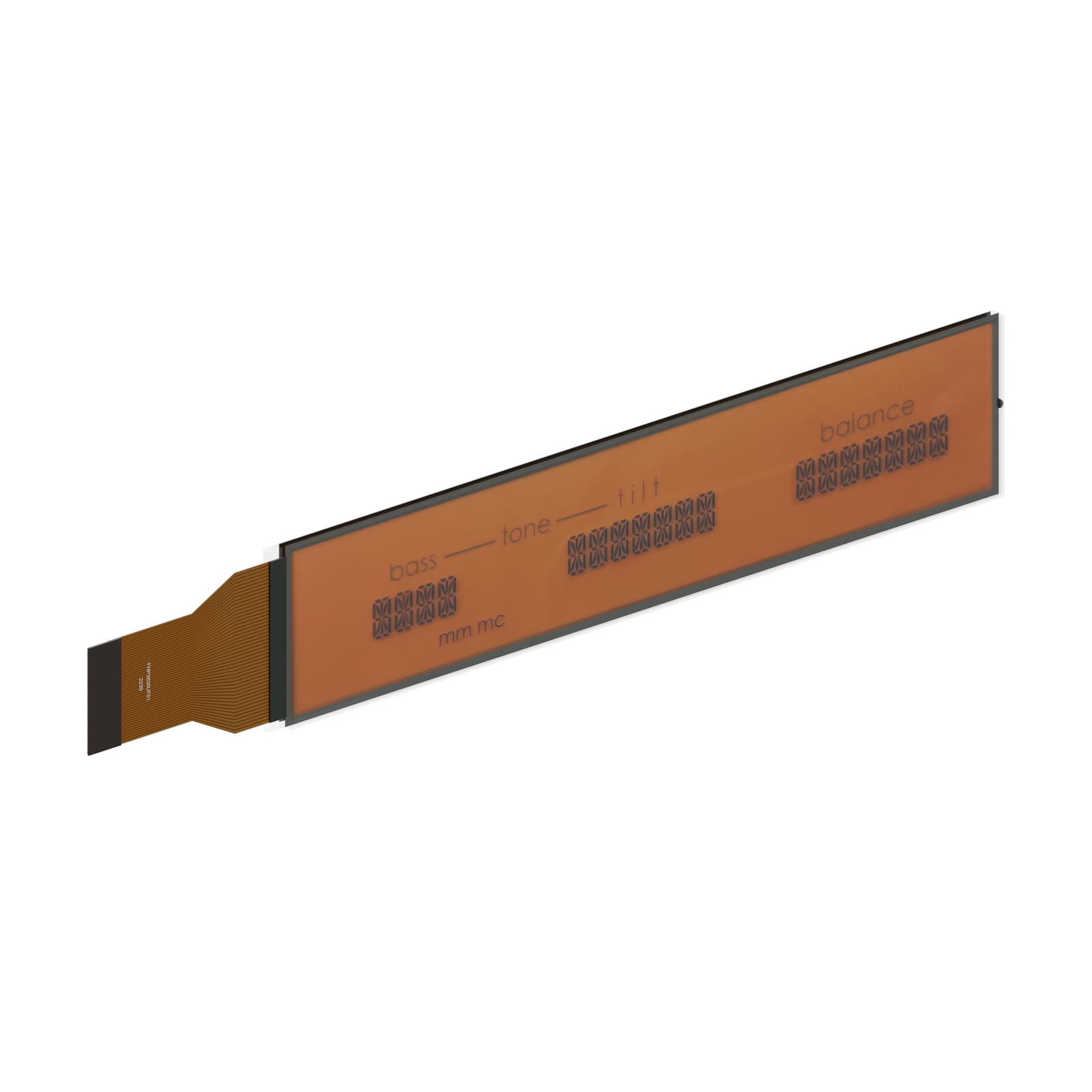

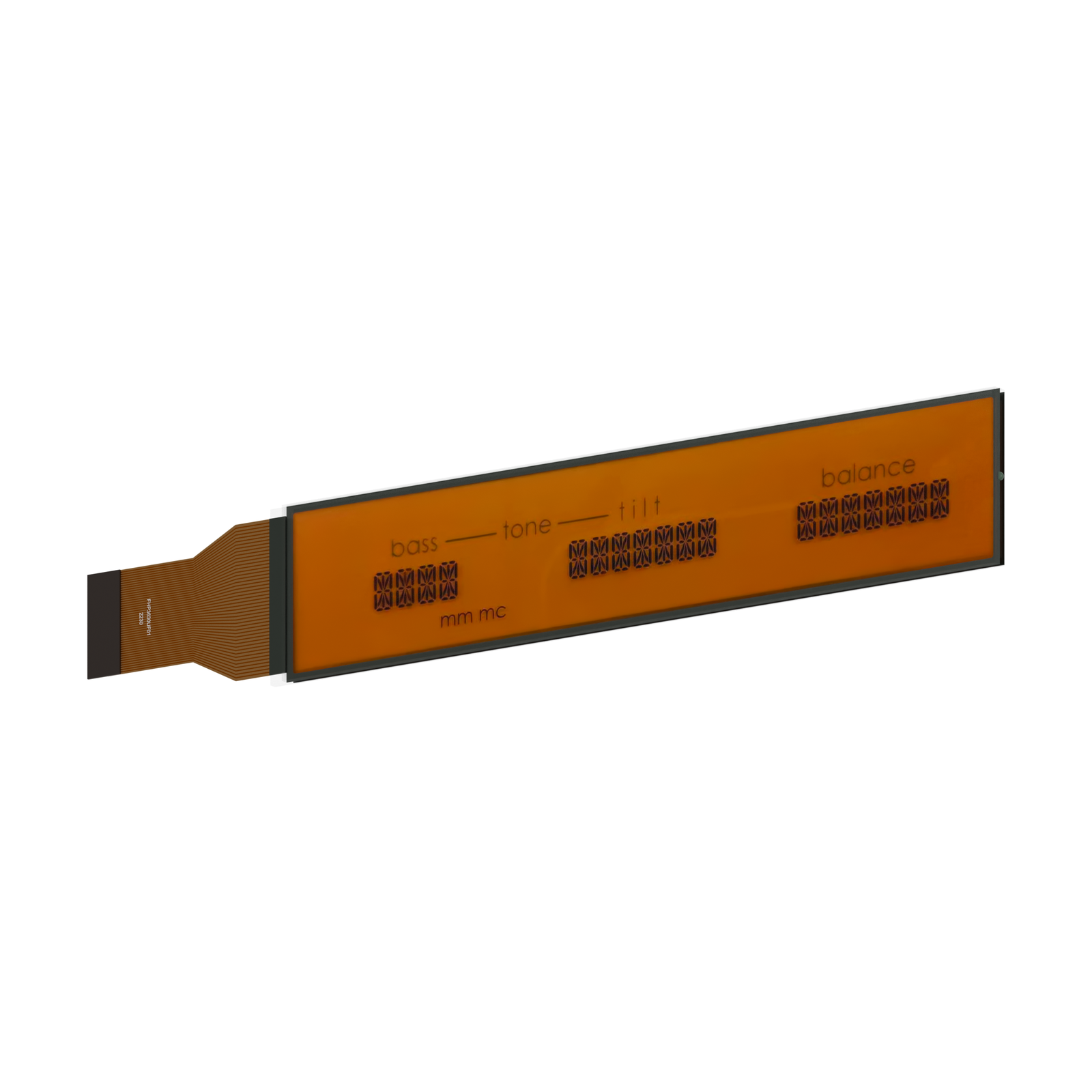

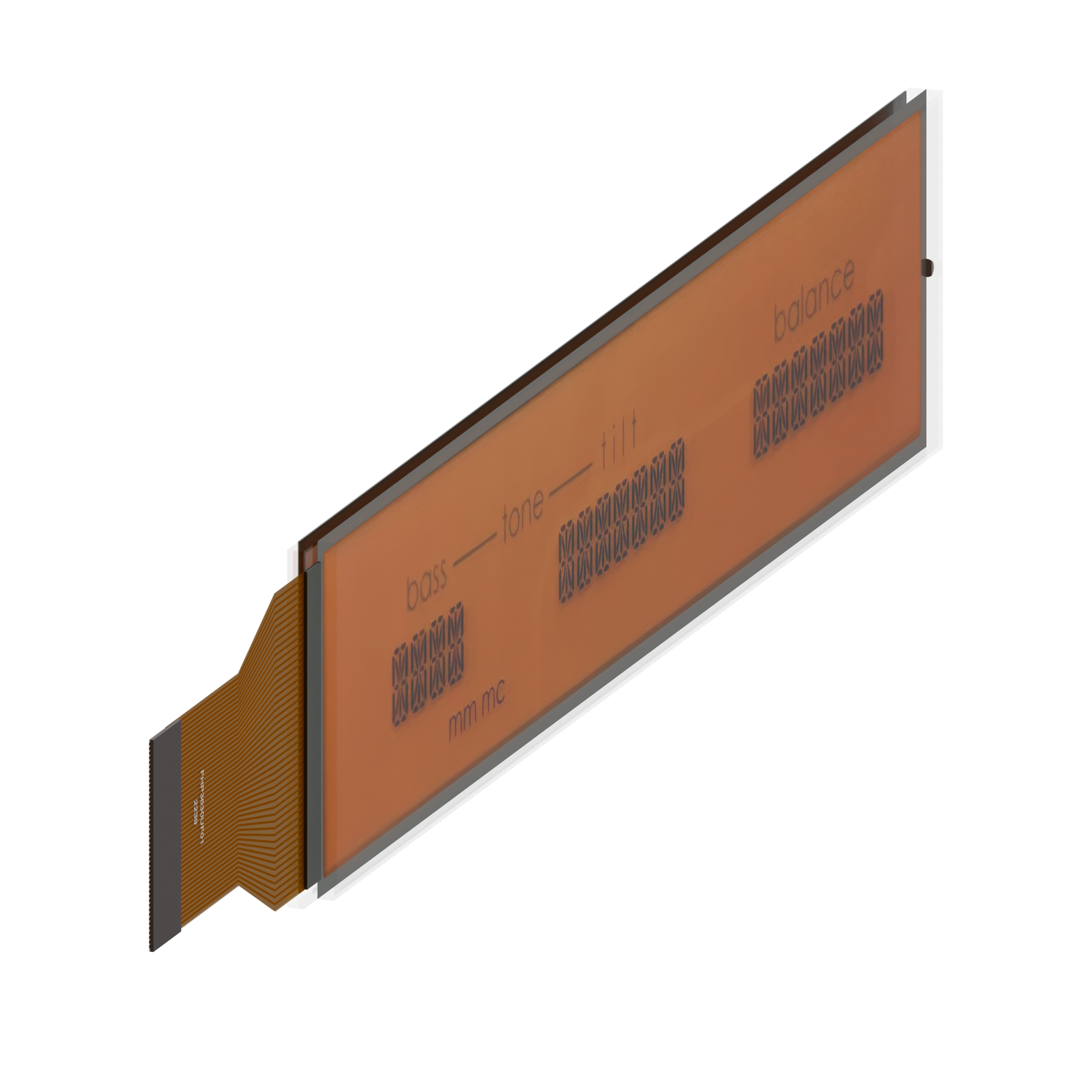

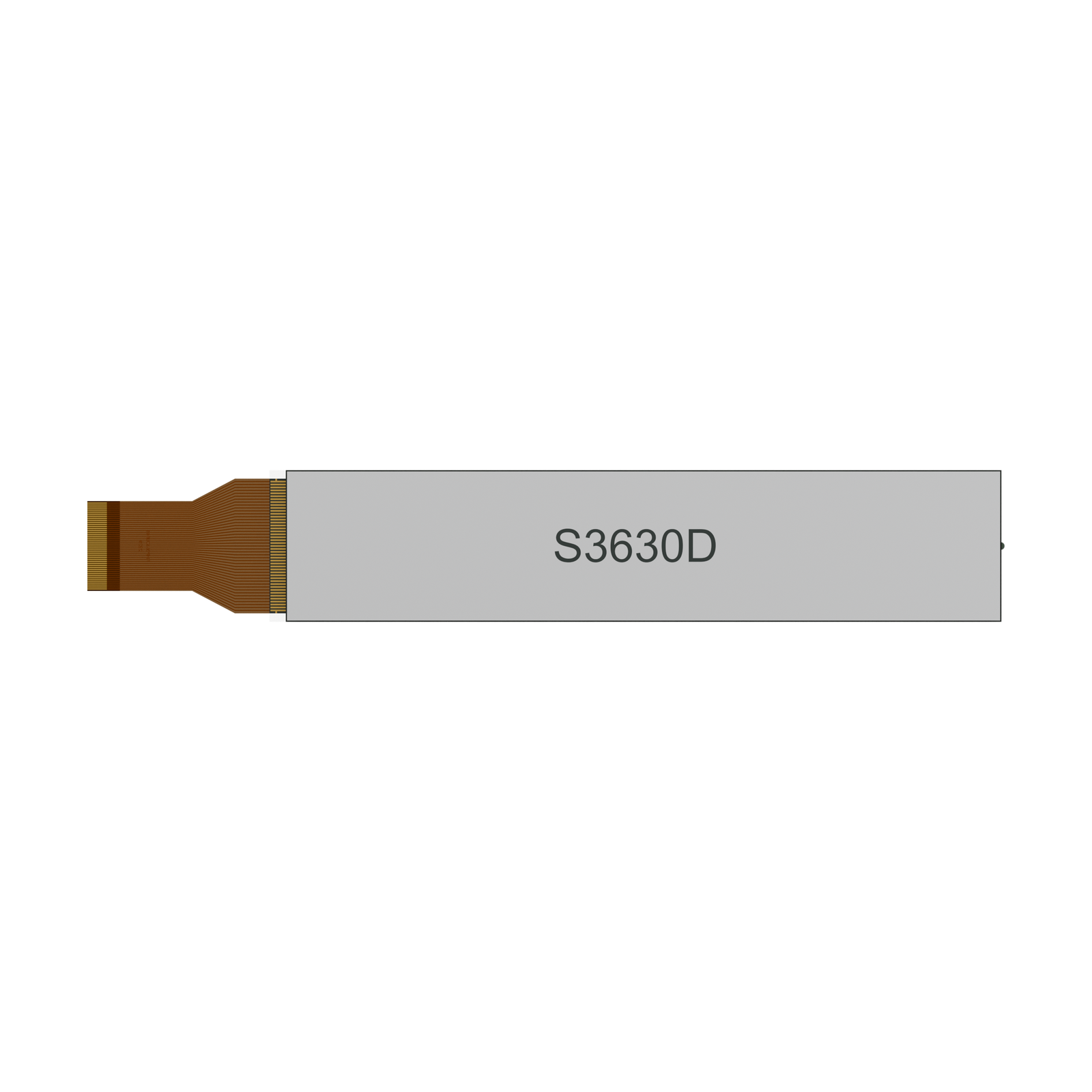

S3630D is a wide HTN, positive-mode segmented LCD reference with bass, tone, tilt and balance legends above three segmented indication groups. A flexible printed circuit extends from the left side.
108.00 × 21.30 mmMinimum viewing area
4.5 VLCD operating voltage
A starting point for your custom display.
Images, 3D geometry and listed parameters are OEM reference information. Final dimensions, electrical requirements, optical configuration and construction are confirmed for your project.
Product video
Short product video. Playback starts when you press play.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S3630D |
|---|---|
| Display mode | HTN, positive |
| Rear glass width × height | 112.50 ± 0.20 × 23.30 ± 0.20 mm |
| Front glass width × height | 110.00 ± 0.20 × 23.30 ± 0.20 mm |
| Minimum viewing area | 108.00 × 21.30 mm |
| LCD thickness | 3.00 mm maximum |
| Glass thickness per layer | 1.10 ± 0.10 mm |
| FPC connector-end contact pitch | 0.30 mm |
| Connection | Flexible printed circuit (FPC) |
| LCD operating voltage | 4.5 V |
| Drive condition | 1/8 duty 1/4 bias |
| Frame frequency | 64 Hz |
| Viewing direction | 12 o’clock |
| Rear polarizer | Transmissive, adhesive |
| Front polarizer | Transmissive, adhesive |
| Operating temperature | −20 °C to +70 °C |
| Storage temperature | −30 °C to +80 °C |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
FPC routing
The reference uses an FPC. Review the contact end, routing space and connector requirements together with the glass bonding area.
LCD drive
The listed drive condition is 1/8 duty and 1/4 bias. Check the LCD driver and segment mapping before finalizing the control electronics.
03 / APPLICATION DIRECTION
Audio equipment
Use this reference to plan settings and status indications on an audio-equipment panel. Confirm the required labels, indication groups and segment assignments with the audio control design.
04 / PRODUCT SUPPORT
From reference to your design.
Which LCD drive settings are listed for S3630D?
The reference lists 4.5 V LCD operating voltage, 1/8 duty 1/4 bias and 64 Hz frame frequency. Check these requirements against your LCD driver; final electrical requirements are confirmed for the project.
What needs review when routing the FPC?
Check the connector-end contact pitch, connector thickness and routing clearance separately from the bonded-glass end. The two ends need not share the same pitch.
