PRODUCT EXPLORERFront view
Rotate, zoom and inspect the product. Loads on request.

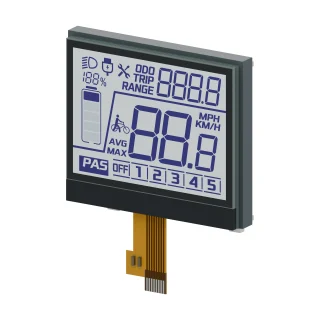

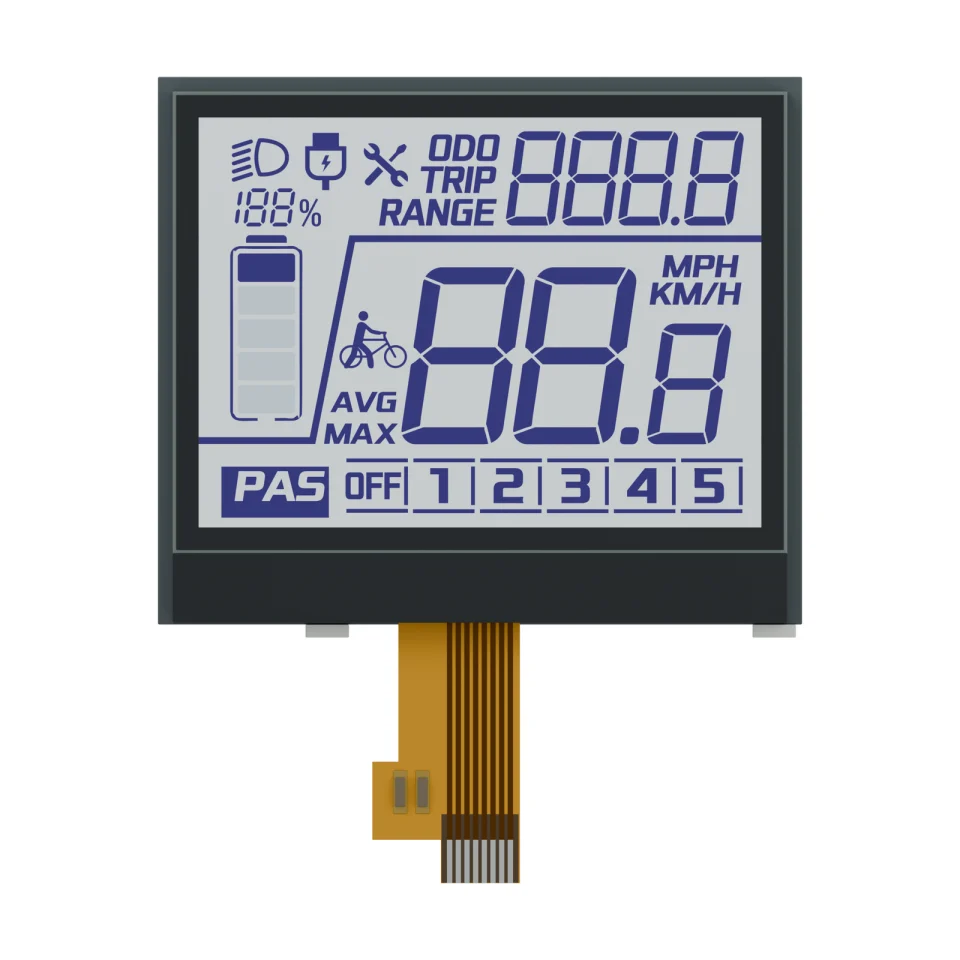

Front visualization of S2947D, an LCD reference design for electric-assist bicycle displays. The generated image illustrates product appearance; final construction is defined for the OEM project.
OEM DISPLAY REFERENCE · SEGMENT-COG
S2947D
Segment Chip-on-Glass LCD
Explore S2947D as a starting point for electric-assist bicycle displays. This segment chip-on-glass lcd reference brings together the display layout, connection approach and product form for your OEM design discussion.
Segment Chip-on-Glass LCDDisplay family
3.3 VReference configuration
Interactive 3DExplore the product
Tell us your display layout, quantity and target application.
A starting point for your custom display.
Images, 3D and parameters are reference information. Final dimensions, electrical requirements and construction are confirmed for your project.
Product video — S2947D
See the actual display in operation.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S2947D |
|---|---|
| Display mode | FSTN, positive / transmissive |
| Operating voltage | 3.3 V |
| LCD drive voltage | 3.3 V |
| Drive condition | 1/4 duty, 1/3 bias |
| Viewing direction | 6 o’clock |
| Operating temperature | −20°C to +70°C |
| Storage temperature | −30°C to +80°C |
| Connection | Chip-on-Glass + FPC + backlight |
| Viewing area dimensions | 32.40 × 23.60 mm minimum |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
Mechanical fit
Define the viewing window, available space, mounting method and connection position.
Electrical requirements
Confirm your host controller, supply, drive method and backlight requirements before sampling.
03 / APPLICATION DIRECTION
Electric-assist bicycle displays.

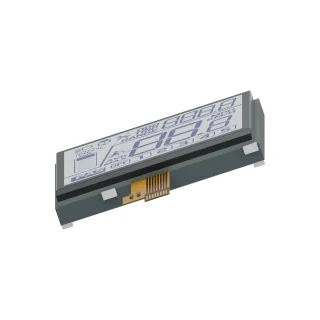

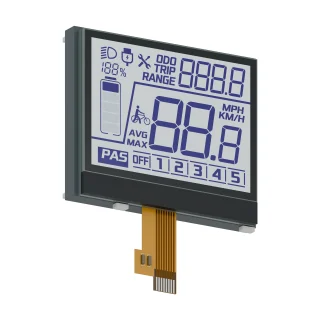

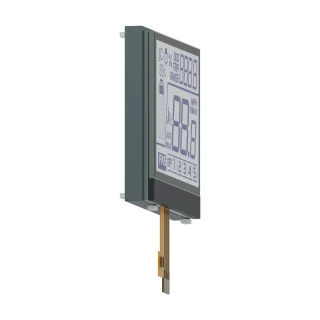

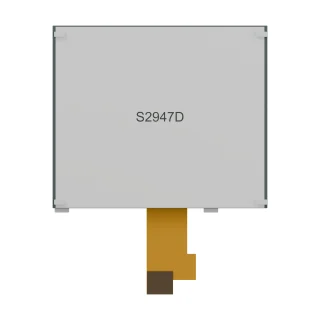

S2947D is presented as a reference for electric-assist bicycle displays. Explore its appearance in six views and 3D, then discuss the changes your product needs.
Information at a glance
Identify the readings, status indicators and control feedback your users need to see.
Designed around the enclosure
Coordinate the display opening, viewing direction and connection with the complete product.
Confirmed for your project
Agree the display configuration and sample requirements with our team.
04 / PRODUCT SUPPORT
From reference to your design.
Is S2947D a fixed specification?
This page presents a reference design for OEM discussions. The final specification and available customization are confirmed against your project requirements.
What should I send for an OEM quotation?
Include S2947D, your application, display artwork, enclosure dimensions, electrical requirements, sample and production quantities, and target schedule.
What does the 3D model show?
The interactive model helps you explore the product form and connection arrangement. It is a visual reference; use the project-confirmed engineering information for assembly design.
YOUR NEXT LCD PROJECT
Let’s shape your display.
Start with S2947D and tell us what your product needs.
