LVDS Host Compatibility
Confirm the LVDS signal mapping, clock and timing with the host design. The reference uses LVDS; a matching resolution or connector count alone does not establish electrical compatibility.

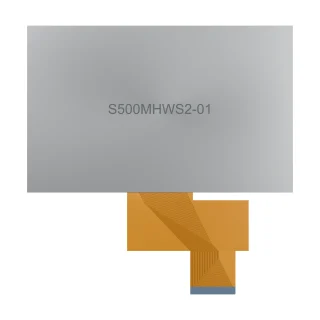

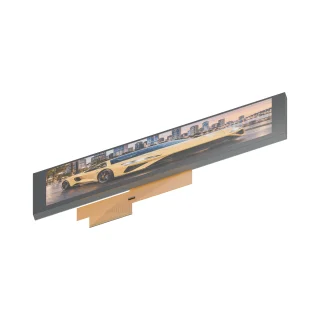

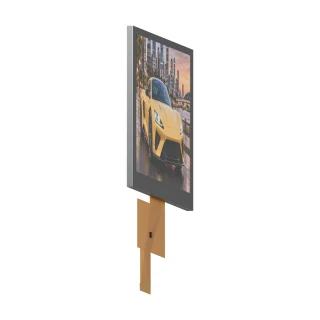

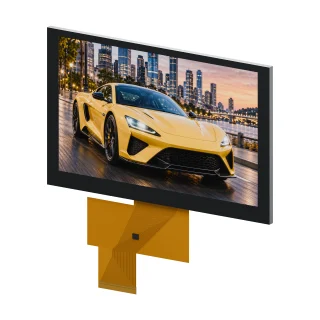

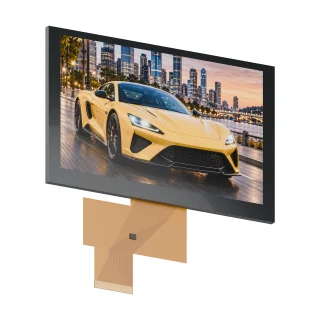

PRODUCT EXPLORERFront view
Explore six views, or load the interactive 3D model.

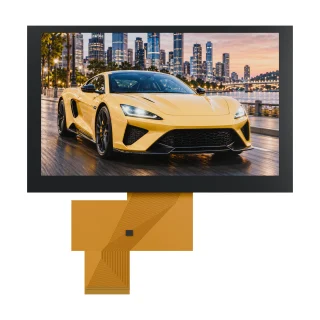

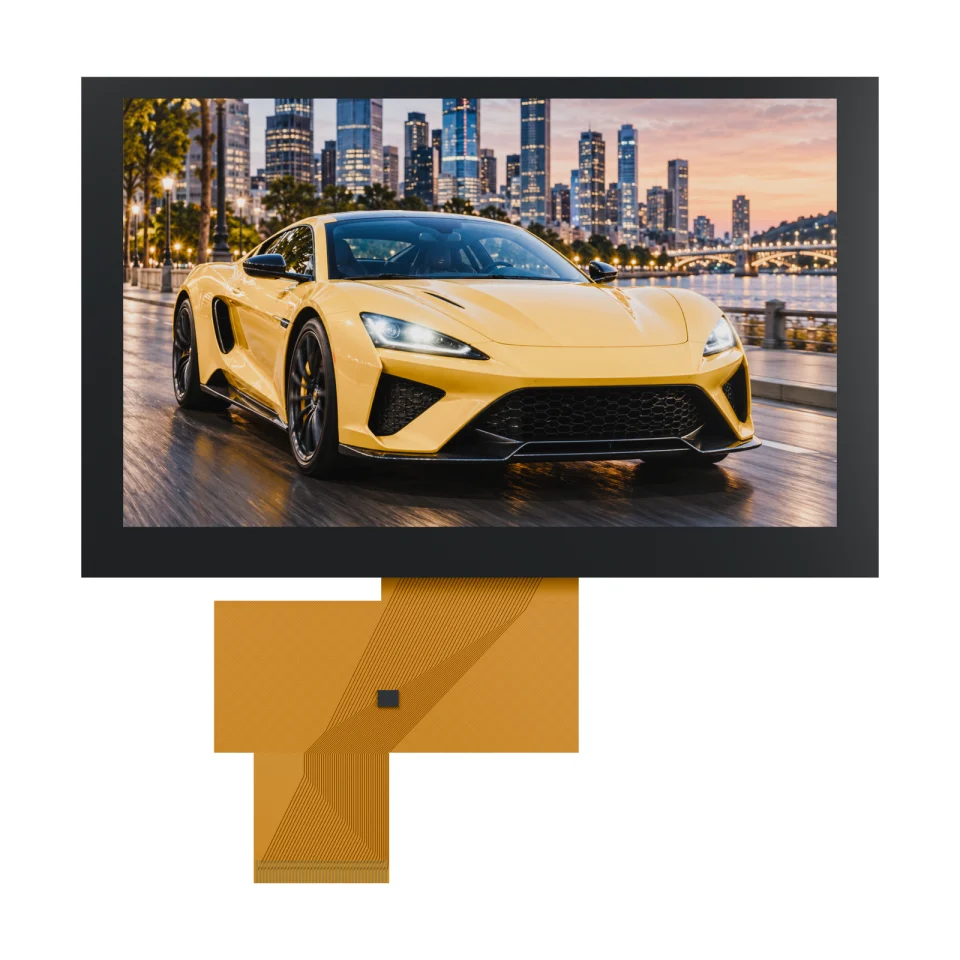

Front visualization of S500MHWS2-01, a 5-inch landscape LVDS display. The image illustrates the product form; materials, screen artwork and fine details are visual references. Final construction is confirmed for the OEM project.
OEM DISPLAY REFERENCE · TFT LCD
S500MHWS2-01
5-Inch 800 × 480 LVDS TFT LCD
S500MHWS2-01 is a 5-inch, 800 × 480 TFT LCD reference with an LVDS interface and a 40-contact FPC. It is a starting point for equipment interfaces that use a compatible LVDS host. Review the offset cable, active area and available enclosure depth before selecting the project configuration.
5-inchDisplay size
800 × 480Resolution
LVDSHost interface
Interactive 3DExplore the product
Share your host interface, enclosure space, quantity and target application.
A starting point for your custom display.
Images, 3D and parameters are reference information. Final dimensions, electrical requirements and construction are confirmed for your project.
01 / REFERENCE CONFIGURATION
Start With The Essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S500MHWS2-01 |
|---|---|
| Reference configuration | Landscape LVDS display |
| Nominal display size | 5-inch |
| Body width × height (reference) | 120.7 × 75.8 mm |
| Resolution | 800 × 480 pixels |
| Display interface | LVDS |
| Touch configuration | The reviewed drawing does not specify an included touch panel; confirm the project configuration. |
| Body Thickness | 3.10 ±0.20 mm |
| Active Area | 108.00 × 64.80 mm |
| Viewing Area | 109.00 × 65.80 mm |
| Bezel Opening | 110.70 × 67.40 mm |
| FPC | 40 contacts; 0.50 mm pitch |
02 / OEM DESIGN
Make The Display Fit Your Product.
Bring your requirements. We will review the configuration with you.
Window And FPC Space
Use the 108.00 × 64.80 mm active area for the displayed image and the separate viewing-area and bezel dimensions for enclosure planning. Allow routing space for the lower, offset FPC beyond the body outline.
Power And Complete Display Stack
Confirm logic power, the separate LED backlight drive, cover-lens or touch requirements and the operating environment against the project-controlled revision.
03 / SUGGESTED APPLICATIONS
Embedded Color Interfaces.
Evaluate this landscape format for equipment menus and status screens when the host supports the confirmed LVDS configuration. Check text size, viewing position and cable clearance in the assembled product.
04 / PRODUCT SUPPORT
From Reference To Your Design.
Is S500MHWS2-01 a fixed specification?
This page presents a reference design for OEM discussions. The final specification and available customization are confirmed against your project requirements.
What should I send for an OEM quotation?
Include S500MHWS2-01, your application, enclosure dimensions, host interface, touch requirements, sample and production quantities, and target schedule.
What does the 3D model show?
The interactive model helps you explore the product form and connection arrangement. It is a visual reference; use the project-confirmed engineering information for assembly design.
YOUR NEXT LCD PROJECT
Let’s Shape Your Display.
Include S500MHWS2-01, the host LVDS output and timing, enclosure opening and available cable space, touch or cover-lens needs, quantities and target project date.
