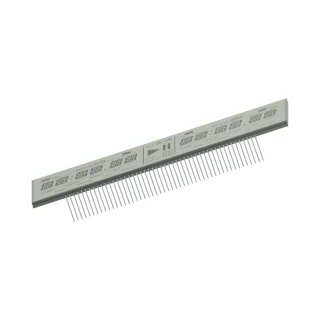

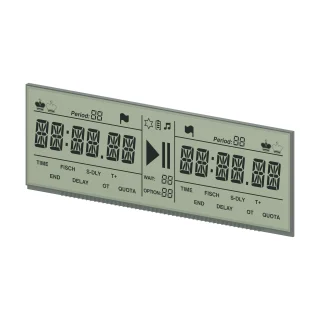

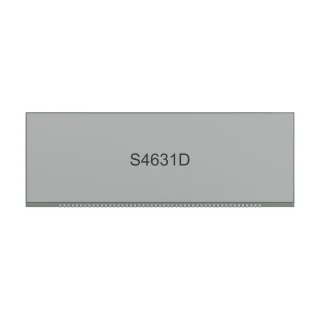

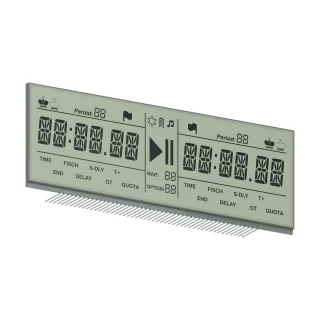

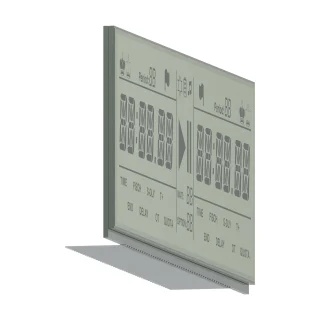

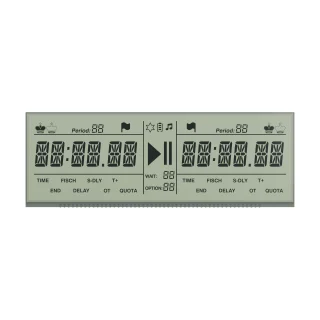

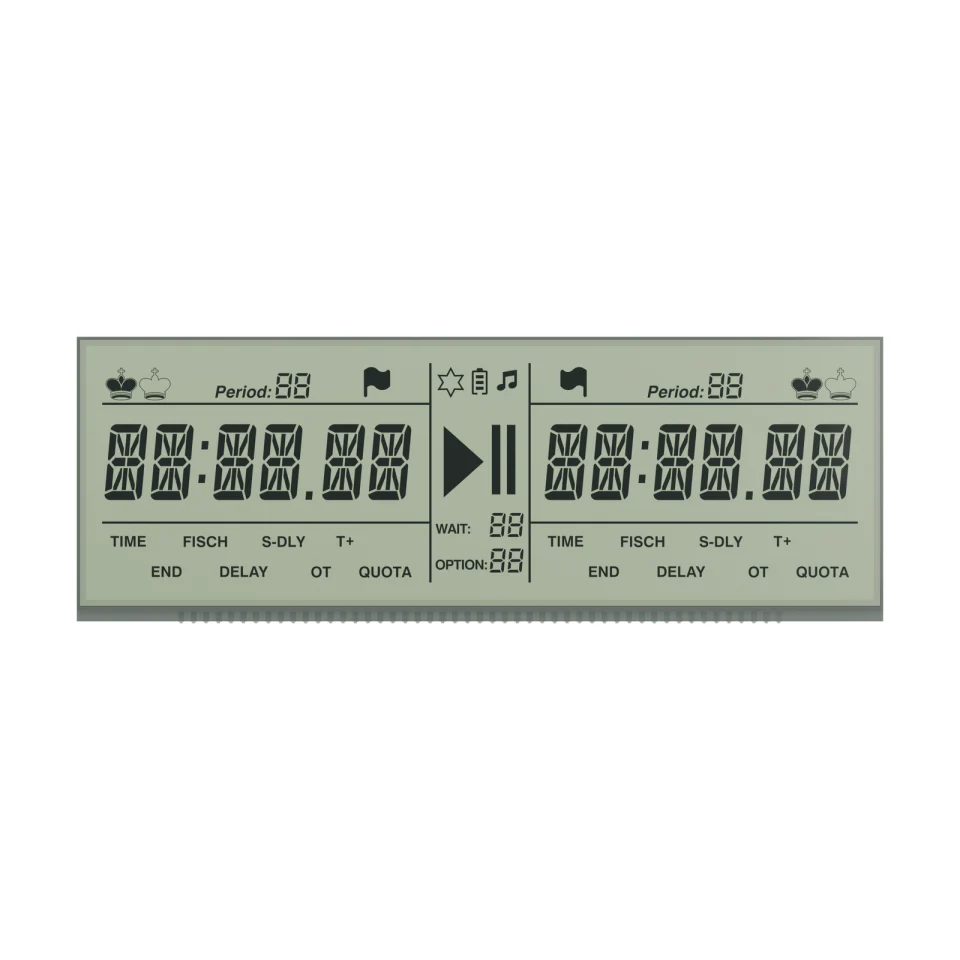

Front visualization of S4631D, an LCD reference design for competition timers. The generated image illustrates product appearance; final construction is defined for the OEM project.
OEM DISPLAY REFERENCE · TN
S4631D
TN LCD
Explore S4631D as a starting point for competition timers. This tn lcd reference brings together the display layout, connection approach and product form for your OEM design discussion.
TN LCDDisplay family
3.3 VReference configuration
Interactive 3DExplore the product
Tell us your display layout, quantity and target application.
A starting point for your custom display.
Images, 3D and parameters are reference information. Final dimensions, electrical requirements and construction are confirmed for your project.
Product video — S4631D
See the actual display in operation.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S4631D |
|---|---|
| Frame frequency | 64HZ |
| Connector | PIN |
| Display mode | TN,POSITIVE MODE |
| Viewing direction | 12 O'CLOCK |
| Operating temperature | 0°C TO +50°C |
| Storage temperature | -10°C TO +60°C |
| LCD operating voltage | 3.3 V |
| Drive condition | 1/8 DUTY 1/4 BIAS |
| Viewing area dimensions | 126.54 × 40.72 mm minimum |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
Mechanical fit
Define the viewing window, available space, mounting method and connection position.
Electrical requirements
Confirm your host controller, supply, drive method and backlight requirements before sampling.
03 / APPLICATION DIRECTION
Competition timers.
S4631D is presented as a reference for competition timers. Explore its appearance in six views and 3D, then discuss the changes your product needs.
Information at a glance
Identify the readings, status indicators and control feedback your users need to see.
Designed around the enclosure
Coordinate the display opening, viewing direction and connection with the complete product.
Confirmed for your project
Agree the display configuration and sample requirements with our team.
04 / PRODUCT SUPPORT
From reference to your design.
Is S4631D a fixed specification?
This page presents a reference design for OEM discussions. The final specification and available customization are confirmed against your project requirements.
What should I send for an OEM quotation?
Include S4631D, your application, display artwork, enclosure dimensions, electrical requirements, sample and production quantities, and target schedule.
What does the 3D model show?
The interactive model helps you explore the product form and connection arrangement. It is a visual reference; use the project-confirmed engineering information for assembly design.
