Heat-seal connection
The glass carries 31 contacts at 2.00 mm pitch for a heat-seal connection. Confirm the connector and bonding area with the PCB design.
PRODUCT EXPLORERFront view
Rotate, zoom and inspect the product. Loads on request.

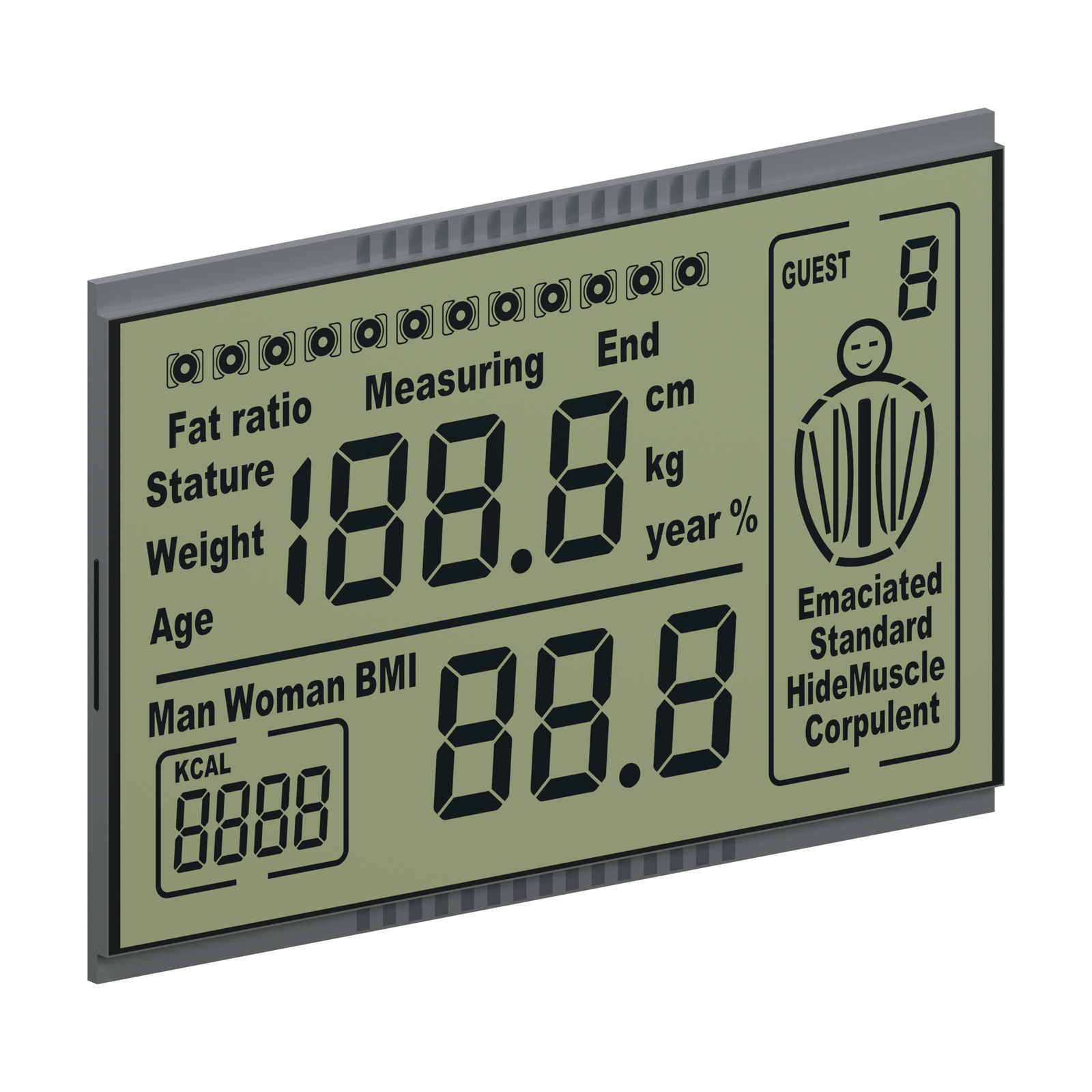

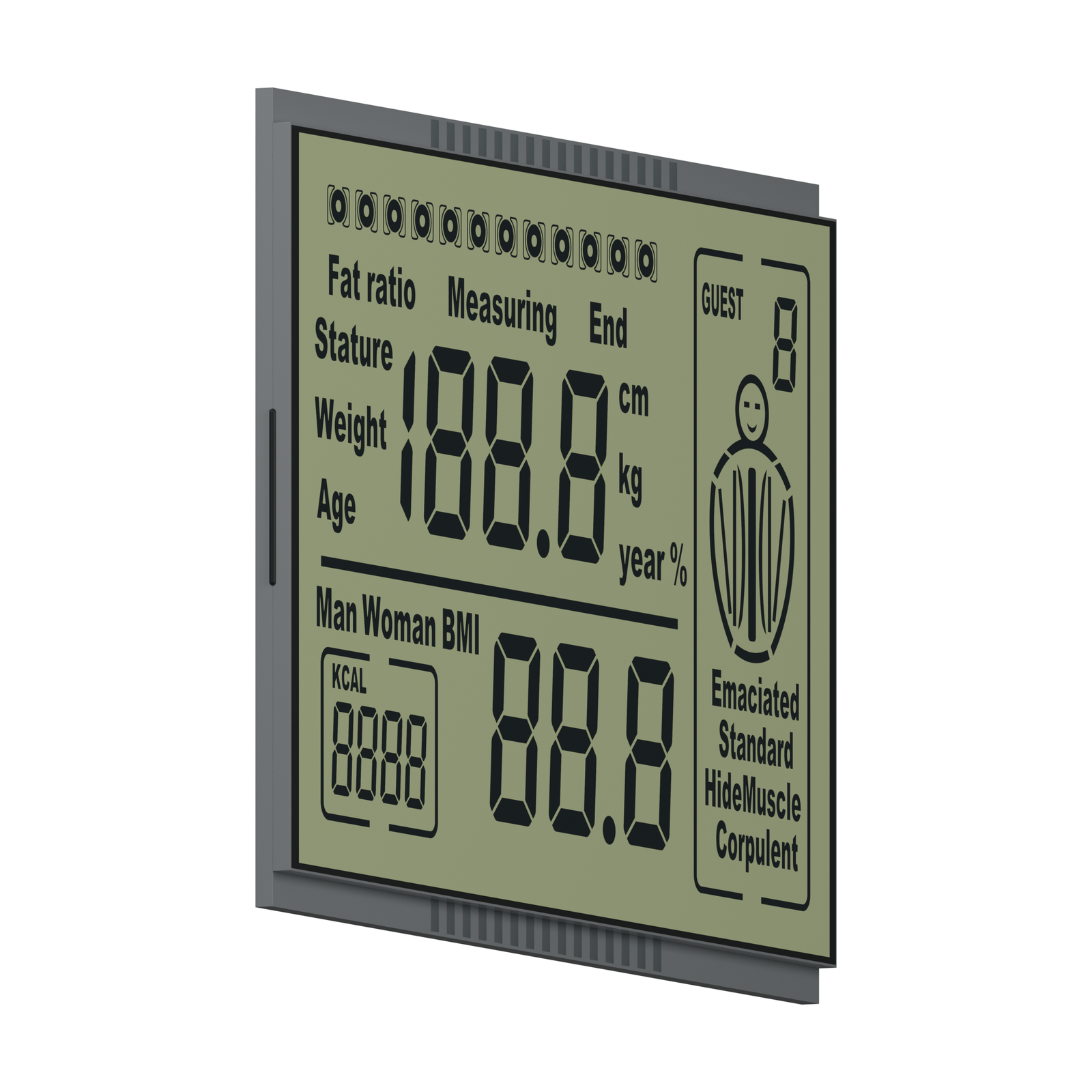

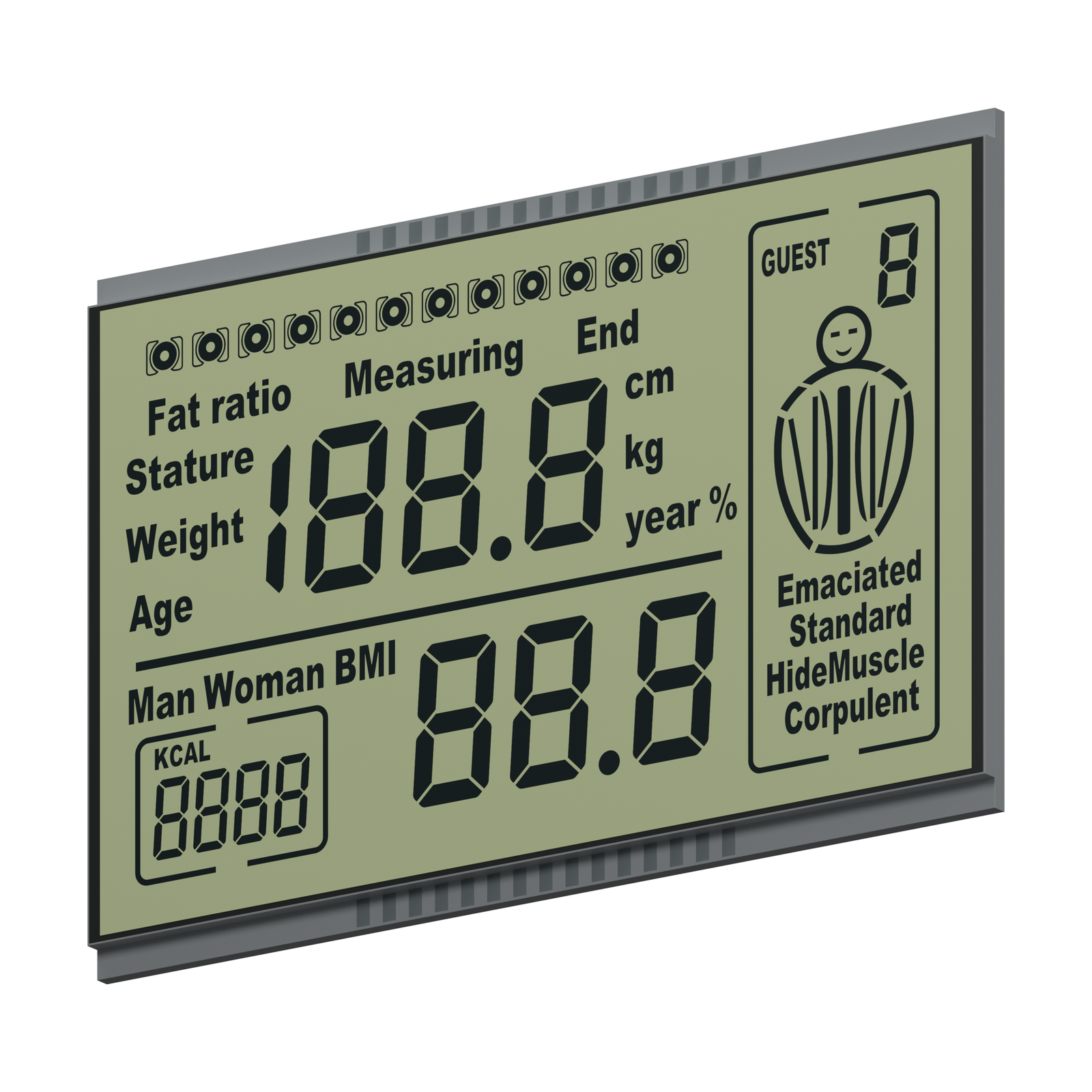

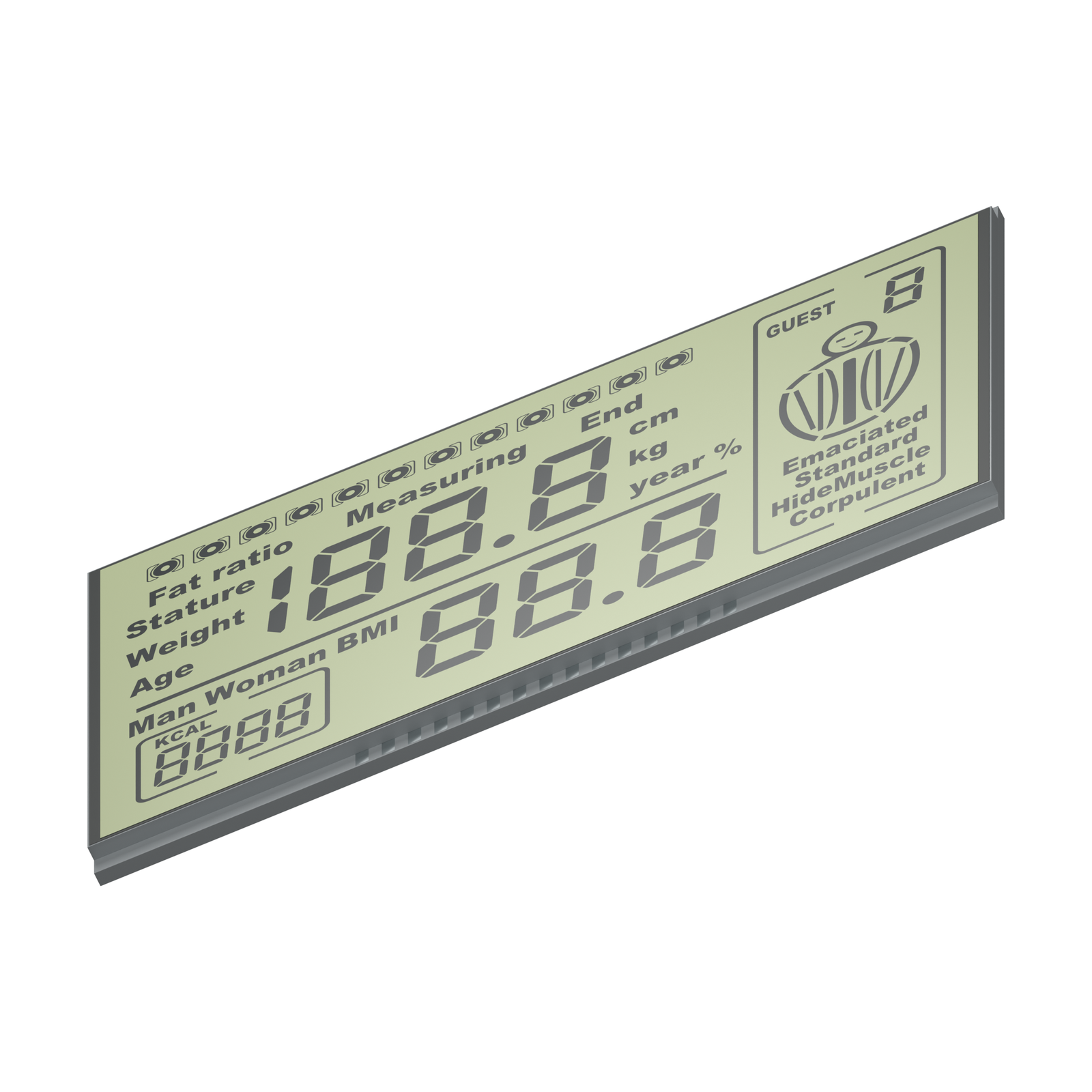

Front rendering of S3689D, showing the screen artwork and glass outline. Materials and fine geometry are visual references for the OEM project.
OEM DISPLAY REFERENCE
S3689D
TN body fat scale display reference
S3689D is a TN, positive-mode segmented LCD reference for a body fat scale. The artwork combines a main reading with cm, kg, year and % units, a secondary reading, a KCAL field, user and BMI labels and a body-shape indicator.
65.80 × 39.30 mmMinimum viewing area
3.0 VLCD operating voltage
A starting point for your custom display.
Images, 3D geometry and listed parameters are OEM reference information. Final dimensions, electrical requirements, optical configuration and construction are confirmed for your project.
Product video
Short product video. Playback starts when you press play.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S3689D |
|---|---|
| Display mode | TN, positive |
| Rear glass width × height | 68.80 ± 0.20 × 46.30 ± 0.20 mm |
| Front glass width × height | 68.80 ± 0.20 × 42.30 ± 0.20 mm |
| Minimum viewing area | 65.80 × 39.30 mm |
| LCD thickness | 2.80 mm maximum |
| Glass thickness per layer | 1.10 ± 0.10 mm |
| Connection | Heat seal: 31 glass contacts, 16 on one edge and 15 on the opposite edge |
| Contact pitch | 2.00 mm |
| LCD operating voltage | 3.0 V |
| Drive condition | 1/5 duty, 1/3 bias |
| Frame frequency | 64 Hz |
| Viewing direction | 6 o’clock |
| Rear polarizer | Reflective, adhesive |
| Front polarizer | Transmissive, adhesive |
| Operating temperature | 0 °C to +50 °C |
| Storage temperature | −10 °C to +60 °C |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
Reflective viewing
A reflective rear polarizer is listed. Review readability under the expected ambient lighting and the 6 o’clock viewing direction.
Measurement fields
Confirm the units and labels your scale uses before finalizing the segment mapping.
03 / APPLICATION DIRECTION
Body fat scales
Use this reference to plan measurement, user and body-composition indications on a personal scale. Confirm the displayed quantities and validate the complete scale for its operating environment.
04 / PRODUCT SUPPORT
From reference to your design.
Which drive settings are listed for S3689D?
The reference lists 3.0 V LCD operating voltage, 1/5 duty, 1/3 bias and 64 Hz frame frequency. Check them against your LCD driver; final electrical requirements are confirmed for the project.
Does S3689D use metal pins?
No. The reference uses contacts on the glass for a heat-seal connection rather than metal pins.
