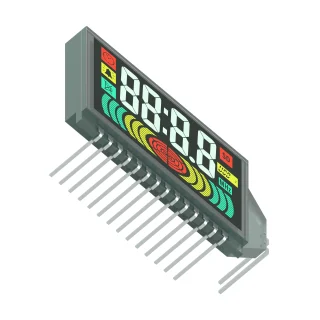

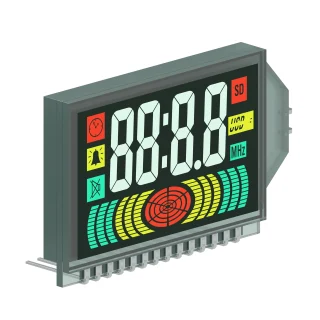

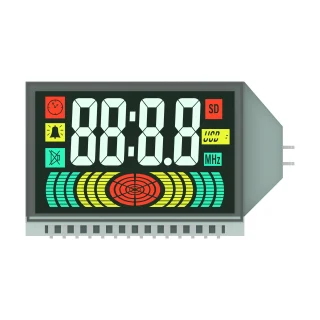

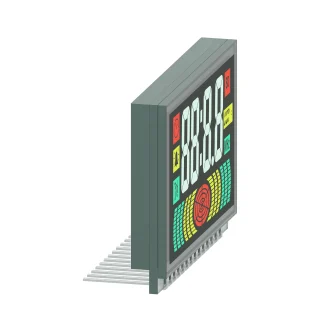

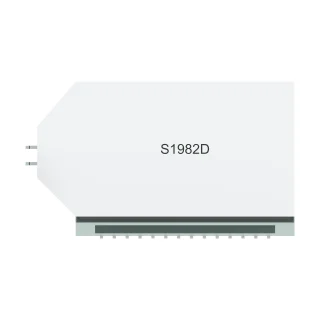

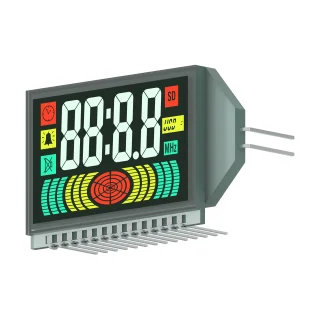

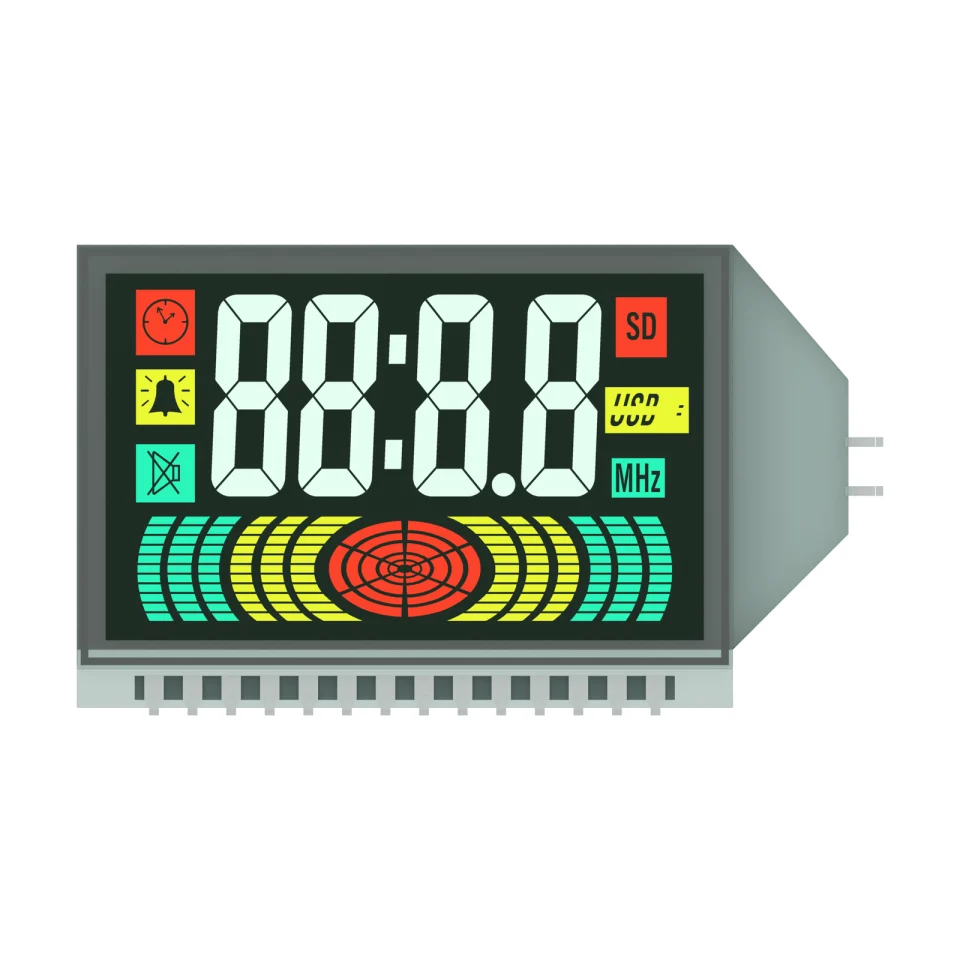

Product rendering on a white background. Screen artwork, materials and fine details are visual references; final construction is confirmed for the OEM project.
OEM DISPLAY REFERENCE
S1982D
TN radio display reference
S1982D is a TN segmented LCD reference for radio displays. Its negative transmissive configuration combines a 31 × 19 mm minimum viewing area, a 14-pin main connection and a separate LED backlight. Review the frequency, clock and status artwork with your OEM interface requirements.
TN LCDDisplay family
Interactive 3DExplore the product
A starting point for your custom display.
Images, 3D and parameters are reference information. Final dimensions, electrical requirements and construction are confirmed for your project.
Product video — S1982D
See the actual display in operation.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S1982D |
|---|---|
| Display mode | TN, negative / transmissive |
| Rear glass width × height | 34.00 ± 0.20 × 24.00 ± 0.20 mm |
| Front glass width × height | 34.00 ± 0.20 × 22.00 ± 0.20 mm |
| Minimum viewing area | 31.00 × 19.00 mm |
| LCD thickness | 2.80 mm maximum |
| Main connection | 14 pins, 2.00 mm pitch |
| Main pin length (drawing reference) | 10.50 ± 0.30 mm |
| Backlight outline width × height | 40.00 ± 0.20 × 21.00 ± 0.30 mm |
| Backlight | White LED |
| Backlight electrical reference | IF = 20 mA; VF = 3.0 ± 0.30 V |
| LCD driving voltage | 4.5 V |
| Drive condition | 1/4 duty, 1/3 bias |
| Viewing direction | 12 o’clock |
| Operating temperature | −20 °C to +70 °C |
| Storage temperature | −30 °C to +80 °C |
