Drive specification
Request the segment/common assignment, drive voltage, duty and bias before selecting the host circuit. These electrical limits are not established by this mechanical reference.
PRODUCT EXPLORER
Select a view below. Open the image to enlarge.

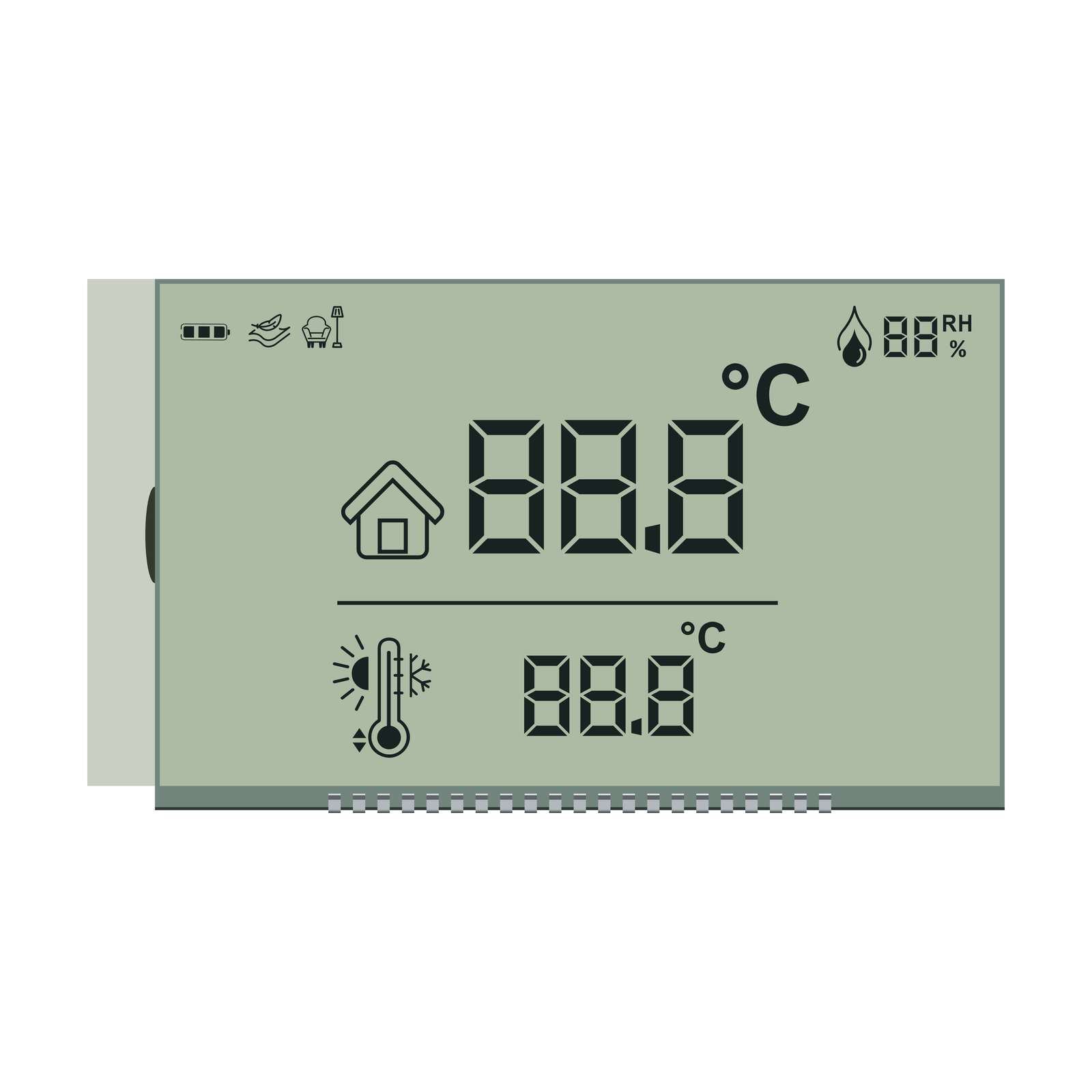

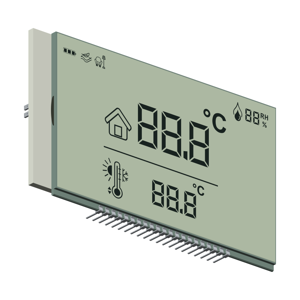

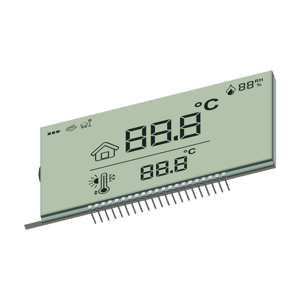

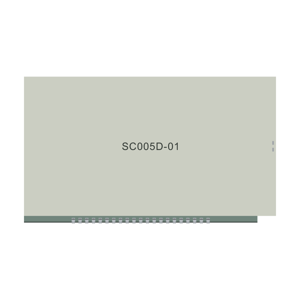

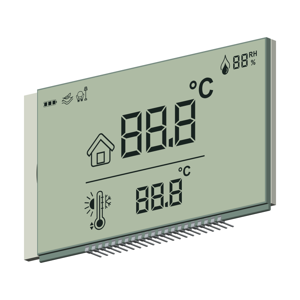

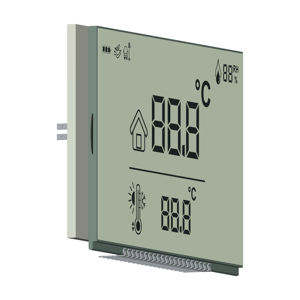

Front drawing-derived rendering of S005D. Appearance is illustrative; use the controlled drawing for integration.
MODEL OVERVIEW
Segment LCD design reference
S005D
A fixed-segment display reference with separate backlight terminals. Review its viewing area, pin arrangement and full assembly envelope.
- Record type
- Design reference
- Display content
- Fixed segment pattern
- Connection
- 21 signal pins · 2.54 mm pitch
- Body envelope
- 95.00 × 55.00 × 5.15 mm
Drawing REV 03 · 2026-09-01
Confirm current availability and the quoted revision.
01 / AT A GLANCE
Specifications & dimensions.
Drawing REV 03 · 2026-09-01. Use the controlled documents supplied for your project before design release.
| Display content | Fixed segment pattern |
|---|---|
| Optical mode | Positive transflective · drawing reference |
| LCD outline | 88.00 × 55.00 mm |
| Viewing area | 85.00 × 50.00 mm |
| Body envelope | 95.00 × 55.00 × 5.15 mmNominal body; projecting pins and terminals excluded. |
| Overall envelope | 95.00 × 55.30 × 8.25 mmDrawing-derived model envelope including pins and terminals. |
| Signal connection | 21 signal pins · 2.54 mm pitch |
| Backlight terminals | 2 terminals · separate from signal pins |
| Backlight outline | 95.00 × 52.50 × 2.30 mm |
02 / DESIGN-IN CHECKS
Plan the integration.
Enclosure and PCB
The 5.15 mm body thickness differs from the 8.25 mm overall depth including terminals. Check pin direction, board clearance and viewing-window alignment.
Reference scope
The fixed digits and icons come from the drawing pattern. Rendering colors do not establish actual contrast, backlight luminance or temperature performance.
03 / APPLICATION IDEAS
Applications to evaluate.
Suggested contexts require system validation.
Temperature and status controls
Evaluate where the fixed segment pattern matches the required information. Confirm drive conditions and operating temperature for the complete product.
YOUR NEXT DESIGN STARTS HERE
Review this model for your project.
Include the quantity, application, host interface and target schedule. Your inquiry will include S005D.
