TFT LCD Module Manufacturing Process Guide
A TFT LCD module manufacturing process turns a finished LCD cell into a usable display module by adding driver ICs, FPC connection, polarizers, backlight, mechanical frame, touch or cover glass, and final inspection. For OEM projects, this module stage is where panel performance becomes a product-ready display assembly.
Array and Cell manufacturing create the optical and electrical core of the display. Module manufacturing, often called LCM assembly, makes that cell usable in an embedded product. It determines how the display connects to the host board, how bright and uniform the image looks, how the backlight is powered, how the FPC bends inside the enclosure, and how the finished module is tested before shipment.
Key takeaways
- The complete TFT LCD production chain is usually divided into Array, Cell, and Module stages.

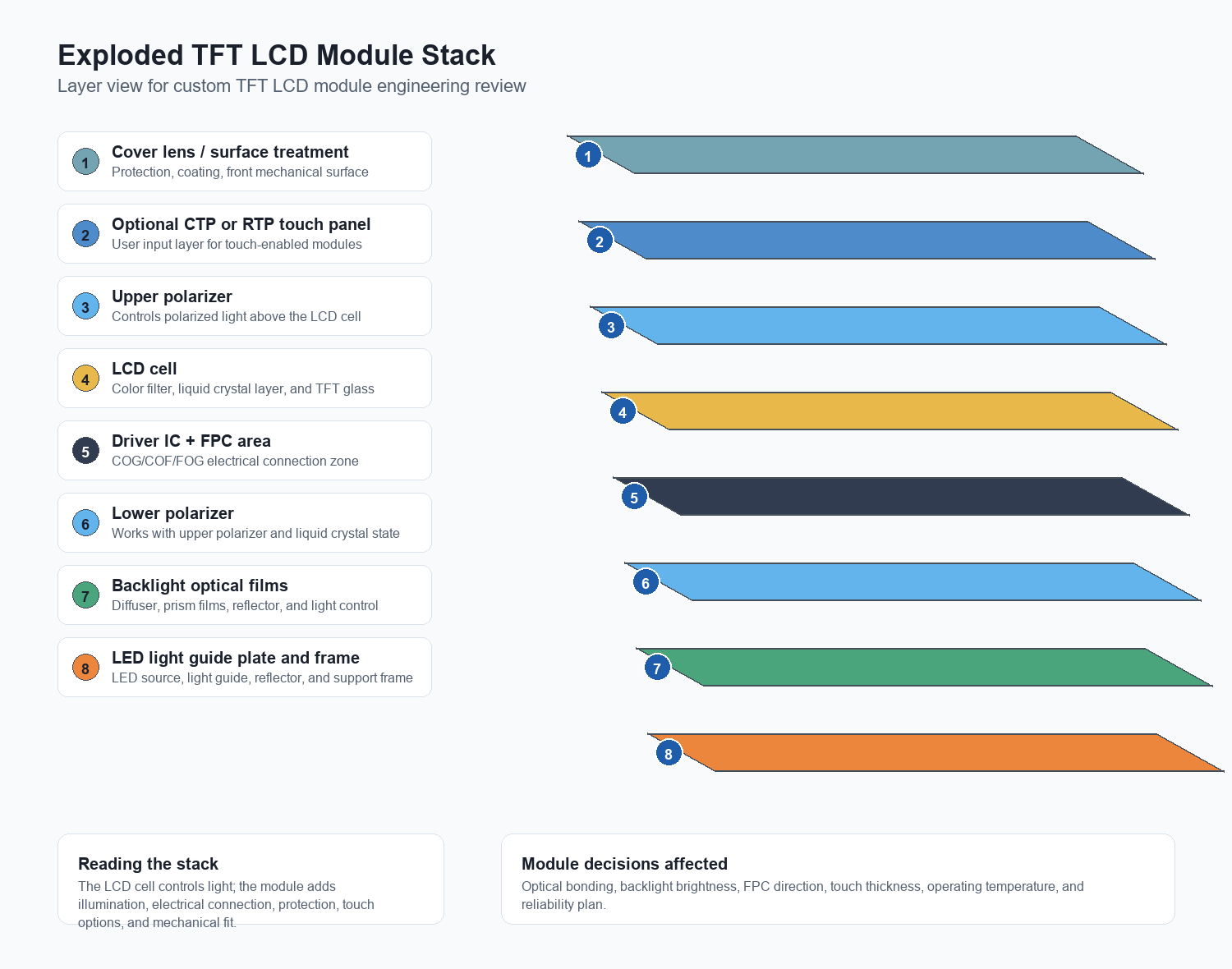

- Module assembly adds COG or COF driver ICs, FPC bonding, polarizers, backlight, frame, optional touch panel, and final test.
- COG bonding and FOG bonding rely on ACF, alignment accuracy, pressure, temperature, time, and particle compression control.
- Backlight design affects luminance, uniformity, power, temperature rise, lifetime, and outdoor readability.
- A good RFQ should define size, resolution, interface, brightness, touch, mechanical stack, operating environment, and reliability needs before sampling.
In this guide
- What TFT LCD module manufacturing means
- The full process flow
- COG, FOG, COF, and COB bonding choices
- Backlight and optical assembly
- Testing and reliability checks
- RFQ checklist
What Is TFT LCD Module Manufacturing?
TFT LCD module manufacturing is the assembly stage that converts an LCD cell or open cell into a finished display module. It integrates the LCD cell with driver ICs, FPC or connector, polarizers, backlight unit, bezel or frame, and optional touch or cover glass so the display can be installed in a real device.
For a custom project, this is the stage where many sourcing decisions become practical. A 7 inch 1024×600 display, for example, is not only a panel size. It also needs an interface such as RGB, LVDS, or MIPI DSI, a backlight current and voltage target, an FPC direction, mechanical outline dimensions, and inspection criteria.
If you are still comparing module-level options, start from the custom TFT LCD modules page. If you need the upstream backplane context, the TFT-LCD Array process guide explains how the transistor matrix is built before the module stage.
TFT LCD Manufacturing Process: Array, Cell, and Module
The complete TFT LCD production path is commonly understood in three large stages:
- Array process: builds the TFT backplane, gate/source lines, pixel electrodes, insulating layers, and related thin-film structures on glass.
- Cell process: combines the TFT array substrate with the color filter substrate, alignment layers, spacer control, seal pattern, liquid crystal filling or one-drop filling, and polarizer preparation.
- Module process: adds driver ICs, FPC, backlight, frame, touch panel, cover lens, inspection, aging, packing, and project-specific customization.
This article focuses on the module process because it is closest to OEM display sourcing. Array and Cell process choices still matter, especially for aperture ratio, material stack, electrical behavior, and display defects. For material background, review the TFT-LCD Array materials guide.
Step 1: Engineering Review and Incoming LCD Cell Control
Module manufacturing starts before the first machine touches the cell. Engineering must confirm that the selected LCD cell can support the product requirements. Key checks include diagonal size, active area, resolution, viewing direction, display mode, operating temperature, storage temperature, interface compatibility, and backlight target.
Incoming inspection usually checks cell appearance, polarizer condition if already attached, glass edge condition, visible defects, lot traceability, and electrical compatibility. For industrial or medical devices, the team should also review lifecycle and second-source risk before locking the design.
This stage prevents a common mistake: choosing a panel by size and resolution only. A mechanically similar cell can still fail the project if the FPC direction, connector pitch, interface, brightness, or temperature range does not fit the final enclosure.
Step 2: Clean Handling, Polarizer, and Surface Preparation
LCD cells are sensitive to dust, fingerprints, static discharge, and edge stress. Before bonding or assembly, operators typically work with gloves, finger cots, ESD wrist straps, clean trays, and controlled handling procedures. The purpose is simple: a small particle can become a visible dot, bonding defect, pressure mark, or reject after final assembly.
Polarizer attachment and inspection are also important. Depending on the supply form, polarizers may already be attached to the open cell or added during module preparation. The polarizer controls the light state together with the liquid crystal layer. Misalignment, bubbles, scratches, contamination, or poor de-bubbling can directly affect appearance. In practical LCM assembly, first-piece inspection under magnification is often used before volume production continues.
Step 3: Driver and FPC Bonding: COG, COF, FOG, and COB
The driver circuit must connect the host signal to the TFT array. Several bonding terms appear in LCD module manufacturing, and they are easy to mix up.
| Bonding method | Meaning | Typical use | Main control point |
|---|---|---|---|
| COG | Chip on Glass | Driver IC bonded directly on LCD glass | IC alignment, ACF compression, temperature, pressure, time |
| COF | Chip on Film | Driver IC mounted on flexible film | Film handling, pitch, bend reliability, connection stability |
| FOG | Film on Glass | FPC or flexible film bonded to glass pads | Pad alignment, hot-bar profile, ACF particle contact |
| COB | Chip on Board | More common in simpler LCD modules where IC is mounted on PCB | PCB assembly, wire bonding or encapsulation, board-level protection |
Modern small and medium TFT LCD modules often use COG plus FPC bonding. Larger or high-resolution designs may use COF, depending on panel architecture and driver layout. COB is still important in the broader LCM world, especially for monochrome or simpler modules, but it is not the default structure for many current TFT open-cell assemblies.

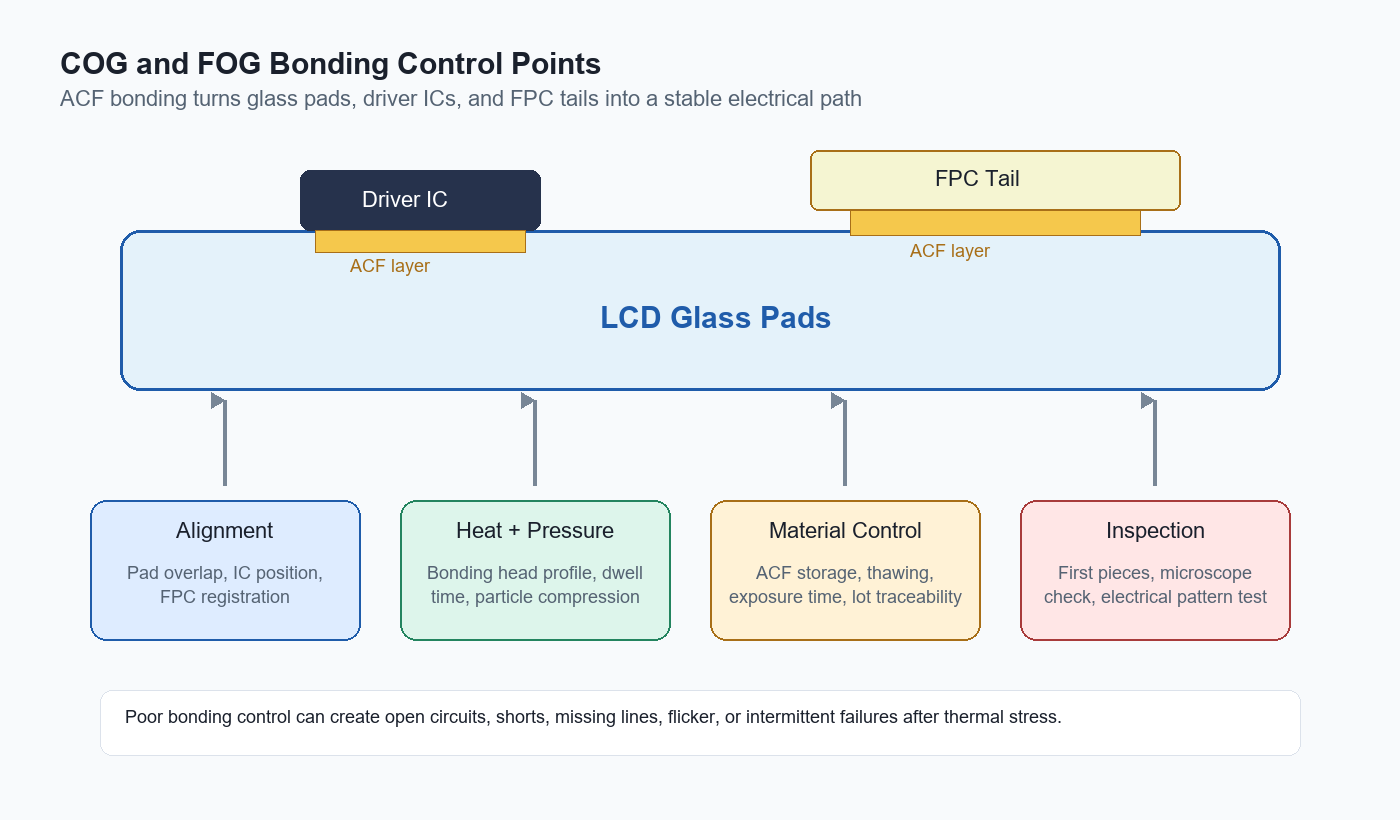

Why ACF Control Matters
COG and FOG processes commonly rely on ACF, or anisotropic conductive film. ACF conducts through the thickness direction after heat and pressure compress conductive particles between matching pads, while maintaining insulation between neighboring pads.
Internal production reference documents reviewed for this draft list ACF examples such as 23 micrometer COG film thickness, 25 micrometer TAB film thickness, and 40 micrometer COF film thickness. They also list conductive particle examples around 3 to 5 micrometers for some COG/COF applications and process windows involving pre-bond and main-bond temperature, pressure, and time. These numbers should not be copied blindly into a new project, because the final window depends on the ACF brand, IC pad pitch, glass design, bonding head, and customer reliability target.
The engineering lesson is more important than any single number: ACF must be stored, thawed, handled, aligned, compressed, and inspected as a controlled material. Poor ACF control can cause open circuits, shorts, intermittent display failure, line defects, or failures after thermal cycling.
Step 4: Backlight Assembly and Optical Stack
A TFT LCD cell controls light but does not create light. The backlight unit provides the illumination that passes through the optical films, lower polarizer, liquid crystal layer, color filter, and upper polarizer. A typical edge-lit module may include LEDs, light guide plate, reflector, diffuser, prism films, tape, frame, and connection to the FPC or backlight cable.
Backlight design affects several practical specifications. In automotive HUD designs, the backlight also interacts with PGU heat, optical loss and driver-eye visibility; for that application context, review the automotive HUD TFT LCD display technology guide.
Backlight design affects several practical specifications:
- Luminance: indoor modules may use around 250 to 500 cd/m2, while outdoor-facing or high-brightness designs may target 700 to 1000 cd/m2 or more.
- Uniformity: LEDs, light guide pattern, diffuser, prism films, and frame pressure all influence visible hot spots or dark areas.
- Power: higher brightness increases LED current, thermal load, and battery or power-supply demand.
- Lifetime: LED current, heat, optical film aging, and operating temperature affect long-term luminance decay.
- Mechanical thickness: slim modules need tighter control of light guide thickness, film stack, tape, and frame clearance.
For sunlight-readable or sealed industrial products, the backlight decision should be reviewed with cover glass, optical bonding, anti-glare treatment, and heat dissipation. A brighter backlight alone does not always solve outdoor readability if reflection, air gap, or cover surface treatment is ignored.
Step 5: FPC, Connector, Touch Panel, and Mechanical Integration
The FPC is more than a cable. It carries display signals, power, ground, backlight lines, touch signals, and sometimes component pads. Its direction, length, stiffener position, connector pitch, bend radius, and pin assignment must match the customer PCB and enclosure.
Touch integration adds another layer of decisions. A resistive touch panel may be appropriate for glove operation or cost-sensitive industrial controls. A projected capacitive touch panel is usually better for modern cover-glass interfaces, multi-touch, and sealed front designs. Cover lens choices then add thickness, optical bonding, surface hardness, anti-glare, anti-reflective, anti-fingerprint, and black border design.
If the interface has not been selected yet, use the TFT LCD interface guide before finalizing the FPC and connector. Interface choice can change pin count, EMI behavior, PCB routing, software workload, and cable length constraints.
Step 6: Electrical Test, Appearance Inspection, and Reliability Review
Testing is not a single final gate. A practical module line may include first-piece inspection, bonding inspection, semi-finished electrical test, backlight check, touch test, full functional test, appearance inspection, QA sampling, and packing inspection.
Typical checks include:
- Display on/off and image pattern test
- Missing line, abnormal display, flicker, black dot, white dot, and mura check
- Backlight brightness, color, current, and uniformity check
- Touch function and coordinate response if touch is integrated
- FPC alignment, solder or hot-bar bonding area, insulation tape, and connector condition
- Outer appearance: glass edge, polarizer surface, frame, tape, cover lens, and label
For reliability, the test plan should match the final application. Industrial HMIs, vehicle-adjacent equipment, outdoor devices, medical instruments, and handheld terminals do not face the same risk profile. Common requirements may include high temperature operation, low temperature operation, high temperature storage, low temperature storage, damp heat, thermal cycling, vibration, ESD, drop, connector durability, and backlight aging.
External standards can still be useful as reference frameworks. For example, IPC-A-610 is commonly used for electronic assembly acceptance, and IEC 60068-2-38 is often referenced for composite temperature and humidity cycling. In a custom TFT LCD module project, the exact acceptance criteria should be written into the customer specification instead of assumed from a generic standard.
Critical Control Points in LCD Module Assembly
| Process point | Why it matters | Common risk if poorly controlled | What to confirm in production |
|---|---|---|---|
| Cell handling | Protects glass, polarizer, and optical surface | Scratch, particle, edge crack, pressure mark | Clean handling, ESD control, tray control |
| COG bonding | Connects driver IC to glass pads | Open, short, line defect, intermittent failure | Alignment, ACF condition, bonding profile, first-piece inspection |
| FOG bonding | Connects FPC or film to glass | Weak connection, shifted FPC, poor bend reliability | Pad overlap, pull strength, hot-bar parameters, visual check |
| Backlight assembly | Controls luminance and uniformity | Dark spot, light leakage, high current, thermal stress | LED bin, film order, dust control, current and brightness test |
| Touch and cover lens | Defines front user interface | Newton rings, bubbles, touch drift, reflection | Bonding method, cover thickness, coating, touch controller |
| Final test | Confirms module is usable before shipment | Escaped display defect or assembly defect | Pattern test, appearance standard, QA sampling, packing check |
How Manufacturing Choices Affect Your RFQ
A supplier can quote faster and more accurately when the RFQ reflects manufacturing reality. The module process needs more than a target screen size. It needs enough information to evaluate cell selection, bonding route, backlight design, FPC design, touch stack, mechanical fit, and test requirements.
For a first RFQ, include the following:
- Diagonal size, active area, resolution, and viewing direction
- Interface: SPI, MCU, RGB, LVDS, MIPI DSI, eDP, or open to recommendation
- Host processor model, operating system, refresh-rate target, and color depth
- Brightness target, backlight voltage/current, and dimming method
- Operating and storage temperature range
- Touch requirement: no touch, RTP, or CTP
- Cover lens, optical bonding, anti-glare, anti-reflective, or anti-fingerprint needs
- FPC direction, connector type, connector pitch, pin count, and cable length
- Mechanical outline, thickness limit, mounting method, and enclosure window
- Reliability tests, inspection level, annual quantity, and expected lifecycle
For a more complete purchasing format, use the TFT LCD module RFQ checklist. For industrial equipment, the industrial HMI TFT LCD selection guide can help connect module manufacturing choices with field conditions.
Practical Checklist Before Sampling
Before ordering samples, use this short engineering checklist:
- Has the display size been checked against enclosure, PCB, and viewing distance?
- Can the host processor support the selected interface without an extra bridge IC?
- Is the FPC direction compatible with the board connector and assembly path?
- Is the backlight brightness high enough without creating unacceptable heat?
- Does the touch or cover lens stack change optical bonding, thickness, or reflection?
- Are the operating temperature and storage temperature realistic for the end device?
- Are reliability tests defined before tooling or mass production?
- Does the inspection standard cover display defects, backlight defects, FPC defects, and appearance defects?
Frequently Asked Questions
What is the difference between TFT LCD manufacturing and TFT LCD module manufacturing?
TFT LCD manufacturing can refer to the full Array, Cell, and Module chain. TFT LCD module manufacturing specifically focuses on turning the LCD cell into a finished module by adding driver ICs, FPC, backlight, frame, optional touch, testing, and packing.
What is COG bonding in a TFT LCD module?
COG means Chip on Glass. In a TFT LCD module, the driver IC is bonded directly to glass pads, commonly through ACF. The process requires accurate alignment, controlled heat, pressure, time, and inspection because weak bonding can cause open circuits, line defects, or intermittent failures.
What is FOG bonding?
FOG means Film on Glass. It usually refers to bonding an FPC or flexible film to the LCD glass connection area. FOG quality depends on pad overlap, hot-bar parameters, ACF condition, FPC handling, and mechanical bend reliability after the module is installed.
Why is the backlight important in TFT LCD module assembly?
The backlight determines brightness, uniformity, power consumption, heat, thickness, and long-term luminance stability. A high-brightness module may need stronger LED design, better thermal review, optical bonding, and surface treatment instead of simply increasing LED current.
What information should I send before requesting a custom TFT LCD module?
Send the display size, resolution, interface, host processor, brightness target, backlight electrical limits, touch or cover lens need, FPC direction, connector requirements, operating environment, reliability tests, annual quantity, and lifecycle expectation. These details help the supplier choose a feasible module path.
Conclusion
The TFT LCD module manufacturing process is where a display cell becomes a usable product component. COG or COF driver bonding, FPC attachment, backlight design, touch integration, mechanical assembly, and final testing all influence the final display more than a datasheet line can show.
If your project is moving from display selection to sampling, define the module-level requirements early. Review custom TFT LCD modules, confirm the interface with the TFT LCD interface guide, and prepare a clear TFT LCD module RFQ checklist before locking the PCB or enclosure.
Prepare Your TFT LCD Module RFQ
Before sample production, align the LCD cell, interface, FPC direction, backlight target, touch structure, mechanical outline, and reliability requirements with the supplier. A clear RFQ reduces redesign work and helps the factory choose the right module assembly route.
