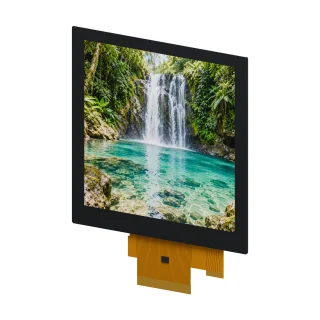

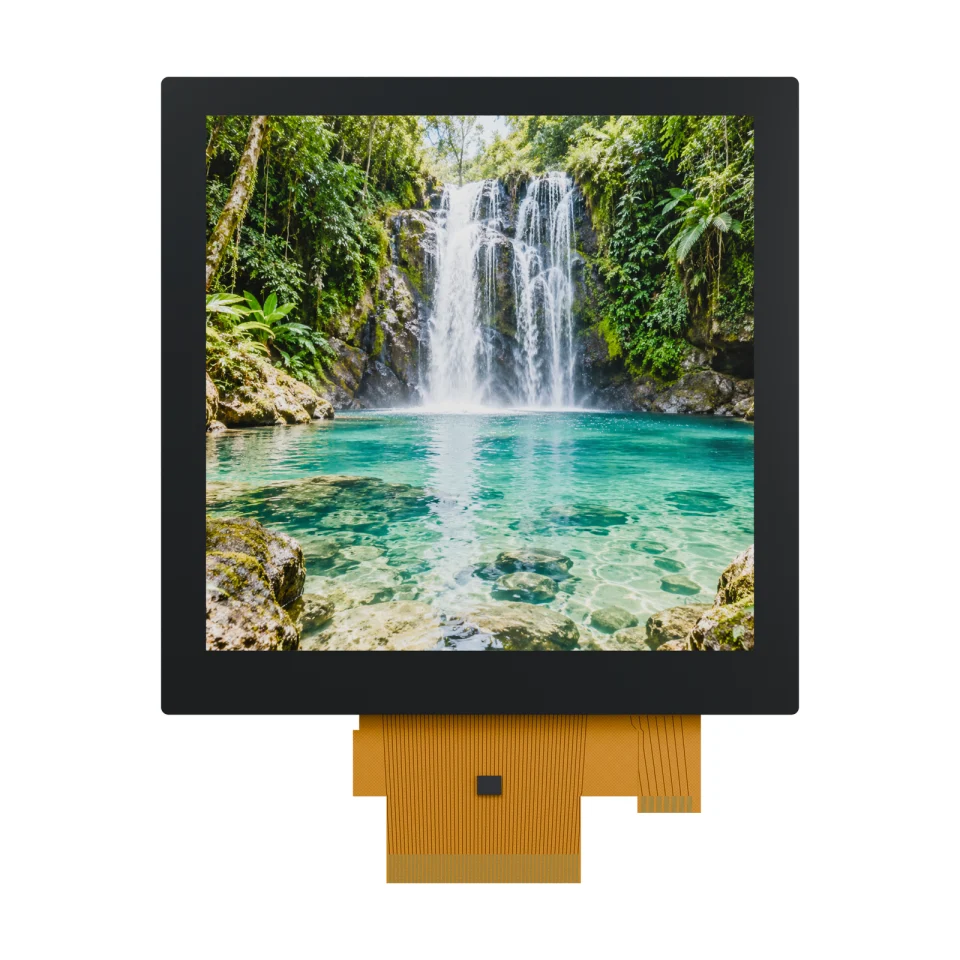

Front visualization of S400MBZS-01D, a 4-inch square touch display. The image illustrates the product form; materials, screen artwork and fine details are visual references. Final construction is confirmed for the OEM project.
OEM DISPLAY REFERENCE · TFT LCD
S400MBZS-01D
4-inch square touch display
Explore S400MBZS-01D, a 4-inch TFT reference with square touch display, 480 × 480 pixels, RGB + SPI interface. Review the six product views and 3D model to discuss the fit for your OEM design.
4-inchDisplay size
480 × 480Resolution
RGB + SPIHost interface
Interactive 3DExplore the product
Share your host interface, enclosure space, quantity and target application.
A starting point for your custom display.
Images, 3D and parameters are reference information. Final dimensions, electrical requirements and construction are confirmed for your project.
01 / REFERENCE CONFIGURATION
Start with the essentials.
A reference configuration for discussing your LCD project. Final specifications are subject to project confirmation.
| Model reference | S400MBZS-01D |
|---|---|
| Reference configuration | Square touch display |
| Nominal display size | 4-inch |
| Body width × height (reference) | 83.7 × 83.7 mm |
| Resolution | 480 × 480 pixels |
| Display interface | RGB + SPI |
| Touch configuration | Capacitive |
02 / OEM DESIGN
Make the display fit your product.
Bring your requirements. We will review the configuration with you.
Mechanical fit
Define the viewing window, available space, mounting method and connection position.
Electrical requirements
Confirm your host controller, supply, drive method and backlight requirements before sampling.
03 / SUGGESTED APPLICATIONS
Square control interfaces.
Consider a square touch layout for device settings, control tiles or compact dashboards. The final user interface, host connection and enclosure are defined for your project.
Information at a glance
Identify the readings, status indicators and control feedback your users need to see.
Designed around the enclosure
Coordinate the display opening, viewing direction and connection with the complete product.
Confirmed for your project
Agree the display configuration and sample requirements with our team.
04 / PRODUCT SUPPORT
From reference to your design.
Is S400MBZS-01D a fixed specification?
This page presents a reference design for OEM discussions. The final specification and available customization are confirmed against your project requirements.
What should I send for an OEM quotation?
Include S400MBZS-01D, your application, enclosure dimensions, host interface, touch requirements, sample and production quantities, and target schedule.
What does the 3D model show?
The interactive model helps you explore the product form and connection arrangement. It is a visual reference; use the project-confirmed engineering information for assembly design.
YOUR NEXT LCD PROJECT
Let’s shape your display.
Start with S400MBZS-01D and tell us what your product needs.
